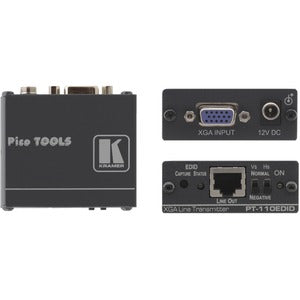

Kramer PT-110EDID: Computer Graphics Video Over Twisted Pair Transmitter with EDID

The PT-110EDID is a purpose-built transmitter from Kramer designed to move computer graphics video signals over standard twisted-pair cabling. By converting a high-quality source signal into a robust twisted-pair format, it enables reliable, long-distance distribution to a compatible Kramer receiver, while preserving image fidelity and color accuracy. With integrated EDID management, this transmitter helps ensure displays recognize the correct resolution and timing, reducing setup time and compatibility issues in classrooms, conference rooms, and broadcast environments. Built for dependable performance in professional settings, the PT-110EDID blends compact design, easy integration, and flexible installation options to support a wide range of presentation and digital signage applications.

• Reliable computer graphics delivery over twisted pair: The PT-110EDID converts computer graphics video signals into a twisted-pair format optimized for long runs, maintaining pristine image quality and tight color control from source to display when paired with a compatible Kramer receiver.
• Integrated EDID management for seamless display compatibility: EDID readback and pass-through ensures displays present the correct resolution and timing, eliminating guesswork and reducing troubleshooting in multi-display installations.
• Plug-and-play with broad format support: Designed to work with standard computer graphics signals and a matching Kramer receiver, delivering straightforward setup in corporate, educational, and production environments with minimal configuration.
• Compact, rugged design for professional use: The PT-110EDID features a sturdy enclosure suitable for rack-mount or shelf mounting, with clear status indicators to simplify monitoring and maintenance in busy AV environments.
• Flexible installation for varied distance and layout needs: Ideal for classrooms, boardrooms, and control rooms where source locations are distant from displays; performance adapts to multiple cable lengths and installation scenarios while preserving signal integrity.

Technical Details of Kramer PT-110EDID

• Transmitter for computer graphics video signals over twisted pair cables
• Built-in EDID management and pass-through to ensure display compatibility
• Supports standard computer graphics video formats when used with a compatible Kramer receiver
• Compatible with Kramer receivers for end-to-end distribution
• Uses common twisted pair cabling (Cat5e/6) for flexible installation across rooms
• Compact, fanless, rugged enclosure suitable for rack-mount or shelf installation
• LED indicators provide quick status at a glance and simplify troubleshooting
• Power supplied via external DC input for reliable operation in professional setups

How to install Kramer PT-110EDID

• Connect your computer graphics video source to the PT-110EDID input using the appropriate video cable for your system (typical PC graphics connections or other standard computer video interfaces).
• Run a twisted-pair cable from the transmitter output to the input on the matching Kramer receiver; ensure the cable is correctly terminated and spaced away from sources of interference where possible.
• Provide power to the transmitter and the receiver using the supplied external power adapters, following the included installation instructions for polarity and voltage.
• Power on the source, transmitter, receiver, and display; verify that EDID negotiation occurs successfully and that the image appears correctly on the display with the intended resolution and timing.
• If you experience any signal degradation or color issues, check cable quality, shielding, and length, and adjust the resolution or display settings to align with the system’s capabilities.

Frequently asked questions

• Q: What is the PT-110EDID? A: It is a Kramer twisted-pair transmitter that carries computer graphics video signals and includes EDID management to ensure display compatibility across a connected Kramer receiver system.
• Q: What resolutions are supported? A: The PT-110EDID supports standard computer graphics video formats when used with a compatible receiver; actual resolution compatibility depends on the source, receiver, and cabling. In typical deployments, you can expect support for common PC and multi-format video resolutions appropriate to the connected hardware.
• Q: Do I need software to operate it? A: No software is required; the system is designed for plug-and-play operation with compatible Kramer components.
• Q: How long can the cable run be? A: Distance depends on cable type (Cat5e/6) and the chosen resolution; longer runs are feasible with proper cable quality and proper pairing, but it’s best to refer to installation guidelines and, if necessary, use shorter runs or repeaters for demanding setups.
• Q: Is EDID management automatic? A: Yes, the device handles EDID detection and pass-through to help ensure the display selects a compatible resolution without manual configuration.
