Description

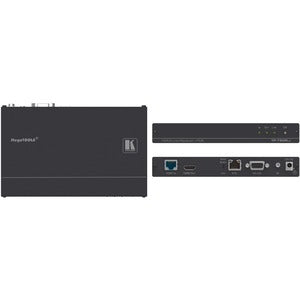

Kramer MegaTOOLS TP-780RXR Video Extender Receiver
The Kramer MegaTOOLS TP-780RXR Video Extender Receiver delivers professional-grade, extended-reach HDBaseT performance for modern AV installations. Engineered to transport pristine 4K video alongside essential control and data signals over a single CAT copper cable, this receiver is a cornerstone for conference rooms, lecture halls, control rooms, and hybrid workspaces. Capable of handling HDMI, Ethernet, RS-232, and IR signals, the TP-780RXR ensures that your source devices, displays, and control gear stay in perfect sync, even across long cable runs. With support for 4K @ 60Hz (4:2:0) at 24-bit color depth, it preserves vivid detail, accurate color, and smooth motion, making it ideal for high-fidelity presentations, immersive multimedia, and reliable remote management. This receiver is designed to integrate seamlessly with Kramer’s MegaTOOLS ecosystem, delivering consistent performance, rugged reliability, and flexible installation options for professional environments.
- Ultra-high-definition extension: delivers 4K@60Hz (4:2:0) video at 24bpp over twisted-pair CAT copper cables, maintaining crisp detail and accurate color across long distances.
- Comprehensive signal transport: passes HDMI video, Ethernet data, RS-232 control, and IR remote signals through a single cable, enabling centralized control and simplified cabling.
- Long-reach HDBaseT technology: engineered for reliable, low-latency AV distribution up to 100 meters (330 feet) on standard CAT cabling, reducing installation complexity and cost.
- Versatile integration within MegaTOOLS systems: engineered to pair with Kramer TP-780 family transmitters and other MegaTOOLS components for scalable matrix-style deployments in meeting rooms and classrooms.
- Flexible installation options: compact, robust receiver designed for rack-mount or wall-mount setups, with straightforward wiring and secure mounting to fit diverse room configurations and aesthetics.
Technical Details of Kramer MegaTOOLS TP-780RXR
- HDBaseT receiver designed to extend HDMI, Ethernet, RS-232, and IR signals over CAT copper cabling
- Supports 4K resolution at 60 Hz with 4:2:0 chroma subsampling and 24-bit color depth
- Maximum transmission range of up to 100 meters (330 feet) over standard twisted-pair CAT cabling
- Pass-through capabilities include HDMI video, data Ethernet, RS-232 control, and IR control signals for integrated AV systems
- Compatible with Kramer MegaTOOLS transmitters to create scalable distribution networks across multiple rooms or zones
- Rugged, compact enclosure suitable for rack-mount or surface-mount installations, designed for reliable operation in professional environments
How to install Kramer MegaTOOLS TP-780RXR
- Plan your layout: determine source locations, display endpoints, and control devices. Verify that your transmitter and receiver are within the maximum 100-meter reach of the CAT cable and that power and network options are compatible with your installation.
- Connect the transmitter pair: install the compatible TP-780 transmitter in the source rack or cabinet and connect the video source, network device, RS-232 controller, and IR emitter as required for your system design.
- Route the CAT cable: run a high-quality CAT6 or CAT6A cable between the transmitter’s HDBaseT output and the TP-780RXR receiver. Keep runs tidy and shielded where possible to minimize interference in challenging environments.
- Connect the display and peripheral signals: attach the TP-780RXR’s HDMI output to the display, and connect any Ethernet, RS-232, and IR control devices to their respective ports on the receiver or along the chain, as dictated by your system design.
- Power up and configure: power on all components in the chain. If you use EDID management, CEC settings, or RS-232/IR control routing, configure the options in your control system or display EDID preferences to ensure seamless compatibility between source and display.
- Test and optimize: verify video quality at the display, check control functions (RS-232 and IR), and confirm that network devices communicate correctly. If needed, adjust signal routing, EDID settings, or control parameters to optimize performance for your room acoustics, lighting, and display capabilities.
Frequently asked questions
-
Q: What resolutions does the TP-780RXR support?
A: It supports 4K resolution at 60 Hz with 4:2:0 chroma subsampling and 24-bit color depth, delivering vibrant, detailed video for modern displays while maintaining compatibility with a wide range of source devices. -
Q: How far can I extend signals using the TP-780RXR?
A: The receiver is designed for long-distance transmission up to 100 meters (330 feet) over standard CAT copper cables, enabling flexible room layouts and centralized equipment placement without sacrificing signal integrity. -
Q: Which signals can be transported through the HDBaseT link?
A: The TP-780RXR carries HDMI video, Ethernet data, RS-232 control signals, and IR remote control signals, consolidating AV distribution and control into a single cable pathway for simplified installations. -
Q: Is the TP-780RXR compatible with other Kramer devices?
A: Yes. It is designed to work with Kramer MegaTOOLS transmitters and related components, allowing you to build scalable systems that fit your room count and usage scenarios—from small meeting spaces to large lecture halls. -
Q: What installation options are available?
A: The receiver supports flexible mounting in rack enclosures or on walls, making it easy to integrate into furniture or equipment racks while preserving a clean aesthetics and easy maintenance access.
