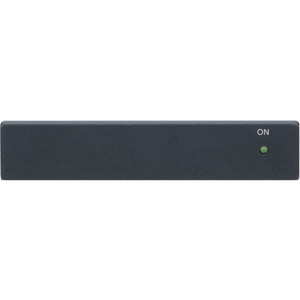

Kramer TP-102HD Video Extender

The Kramer TP-102HD Video Extender is a sophisticated twisted pair transmitter designed for professional AV deployments that demand reliable, high-quality delivery of computer graphics video and HDTV signals. At its core, the TP-102HD converts a traditional 15-pin HD input from a computer graphics source or HDTV source into two identical twisted pair signals, enabling simultaneous distribution to multiple receivers or displays over standard twisted pair cabling. This solution is ideal for classrooms, corporate boardrooms, control rooms, lecture halls, digital signage networks, and video-wall configurations where consistent image fidelity and dependable performance are critical. Built for real-world environments, the TP-102HD combines compact, durable construction with flexible installation options to support a wide range of installation scenarios, from temporary event setups to permanent AV infrastructure. By leveraging dual identical outputs, it simplifies routing and expansion—you can feed two independent displays or two remote receivers from a single high-quality source without compromising signal integrity. In short, the TP-102HD empowers you to extend HDMI/HD signals over distance using twisted pair with ease, while preserving the sharp detail and color accuracy essential for professional video applications. Whether upgrading an existing VGA/HD workflow or building a distributed display network, this Kramer transmitter delivers dependable performance, streamlined integration, and the versatility that modern AV environments demand.

• Two identical twisted pair outputs — The TP-102HD converts a single 15-pin HD input into two identical twisted pair channels, enabling parallel paths to receivers or displays while preserving the integrity and timing of the original computer graphics video or HDTV signal.
• Supports computer graphics video and HDTV signals — Designed to handle VGA-style computer graphics video along with high-definition HDTV signals, ensuring crisp, accurate imagery from source to distant display with minimal compromise.
• Long-distance transmission over twisted pair — Leverage twisted pair cabling to extend video reach across rooms, lecture halls, control rooms, or multi-room installations, reducing clutter and complex cabling while maintaining image quality.
• Easy integration for professional AV setups — Built to fit seamlessly within Kramer ecosystems, the TP-102HD simplifies deployment in classrooms, boardrooms, digital signage networks, and other professional environments, working cohesively with compatible receivers and displays.
• Compact, durable design for daily use — Engineered for reliability in high-demand environments, the transmitter features a robust enclosure and practical design suitable for frequent installation, transport, and everyday operation.

Technical Details of Kramer TP-102HD Video Extender

• Input: 15-pin HD connector (VGA-compatible) from a computer graphics video or HDTV source
• Output: Two identical twisted pair signals
• Function: Twisted pair transmitter that duplicates a single HD input into two identical outputs
• Applications: Suitable for AV setups requiring duplication and extended reach over twisted pair cabling
• Compatibility: Part of the Kramer TP-102HD system with compatible receivers (sold separately)

How to install Kramer TP-102HD Video Extender

Follow these general steps to set up the TP-102HD in typical classroom, conference room, or control-room environments. Always refer to the official manual for your exact model configuration and safety guidelines.

• Connect the source device's 15-pin HD output to the TP-102HD input using a standard VGA/HD connector cable.
• Run two identical twisted pair cables from the transmitter to the remote locations where receivers or displays will be installed.
• At the remote end, connect each twisted pair channel to compatible Kramer receivers or display interfaces according to your installation plan.
• Power the transmitter and receivers as required by your specific hardware. Ensure all devices are powered and properly configured before testing.

Once connected, power on the source and displays, then verify the video signal at each remote display. If needed, adjust any calibration or alignment settings to achieve the optimal image quality. For best results, use shielded twisted pair cables and route cabling away from sources of EMI or mechanical stress to preserve signal integrity over distance.

Frequently asked questions

• What does the Kramer TP-102HD do? It is a twisted pair transmitter that converts a computer graphics video or HDTV signal on a 15-pin HD connector into two identical twisted pair signals for distribution to multiple receivers or displays.
• How many outputs does it provide? Two identical twisted pair outputs.
• What signals does it support? Computer graphics video (VGA) and HDTV signals, suitable for high-resolution and high-definition content.
• What cables should I use? Standard twisted pair cabling compatible with Kramer extenders and receivers, selected according to your distance and bandwidth requirements.
• Is power required? The transmitter requires power as specified by your unit’s configuration; consult the user manual for exact power requirements and connections.
