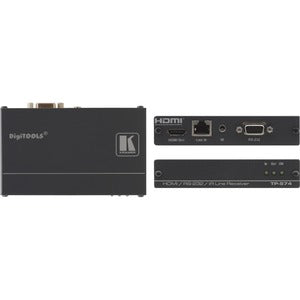

Kramer TP-574 Video Console
The TP-574 is a professional-grade twisted pair receiver engineered to extend HDMI, bi-directional RS-232, and infrared (IR) signals with exceptional reliability. Working in tandem with the TP-573 transmitter, the TP-574 converts the twisted pair signal back into crisp HDMI video, RS-232 data, and infrared control, enabling seamless AV distribution across adaptable installations. This combination is ideal for home theaters, corporate AV setups, classrooms, and digital signage environments where control, flexibility, and image quality matter most.
- HDMI over twisted pair with signal integrity: The TP-574 is designed to receive HDMI video and audio data over a single twisted pair link, preserving a high-quality viewing experience while reducing cabling clutter. By leveraging a dedicated twisted pair path, it helps maintain reliable performance in installations where long cable runs or channel routing are required, ensuring your video remains sharp and your audio stays synchronized with the picture.
- Bi-directional RS-232 and IR passthrough: This receiver supports two-way RS-232 control and IR signaling, enabling centralized control of displays, projectors, and other AV gear from a single location. The bi-directional capability simplifies integration with control systems, allowing you to send commands to source devices and receive status updates through the same trunk line.
- Seamless integration with the TP-573 transmitter: The TP-574 is purpose-built to work alongside Kramer’s TP-573 transmitter. Together, they form a complete HDMI over twisted pair solution that transports HDMI, RS-232, and IR signals across the installation with a simple, robust architecture. This pairing makes planning and deploying multi-room or multi-zone AV systems straightforward for integrators and installers.
- Professional-grade design for commercial use: Built to support demanding environments, the TP-574 offers dependable performance in conference rooms, classrooms, hospitality spaces, and retail environments. The receiver’s design focuses on stability, compatibility, and ease of use, helping AV teams deliver consistent results for clients and end users alike.
- Versatile application across AV workflows: Whether you’re streaming video to displays, controlling sources remotely, or coordinating multiple devices in a centralized system, the TP-574 provides a flexible solution. Its incorporation of HDMI, RS-232, and IR transport over twisted pair makes it suitable for a wide range of professional applications, from presentation setups to digital signage networks.
Technical Details of Kramer TP-574
- Twisted pair receiver for HDMI, RS-232, and infrared (IR) signals
- Converts signals between twisted pair cabling and HDMI/RS-232/IR as part of a Kramer HDMI over twisted pair system
- Designed to work in conjunction with the TP-573 transmitter to extend AV signals
- Supports bi-directional RS-232 control and IR remote signaling across the link
- Reliable, compact receiver suitable for professional AV installations
How to install Kramer TP-574
Installing the TP-574 in a typical HDMI over twisted pair setup is straightforward and designed for professional environments. Start by planning the layout: identify the source devices, the display(s) or receivers, and the location where the TP-573 transmitter will reside. The TP-574 should be positioned near the display or equipment rack where HDMI, RS-232, and IR signals need to be received and managed. Prepare a high-quality twisted pair cable and ensure you have the appropriate connectors for both ends of the link. Power considerations should follow the manufacturer’s guidelines and any local electrical codes.
Step-by-step installation guide:
- Connect the TP-573 transmitter to the HDMI source, RS-232 device, and IR control device as required by your control system. This establishes the originating signals to be sent over the twisted pair link.
- Run a twisted pair cable from the TP-573 transmitter location to the TP-574 receiver location. Use a cable type recommended by Kramer for reliable data transmission and minimal interference.
- Attach the TP-574 receiver to the display or destination equipment with an HDMI cable, and connect any RS-232 and IR devices to the corresponding ports as per your control strategy.
- Power on both units and verify that HDMI video is received at the display, and that RS-232 and IR control signals can travel back and forth across the link. Check for any control latency or signal integrity concerns and adjust cabling as needed.
- Configure any system-level settings in your control processor to ensure proper synchronization between the HDMI video, audio, and control commands. If using multiple zones or displays, repeat the pairing process for additional TP-573/TP-574 pairs as your installation requires.
Tips for best results: keep twisted pair cable runs away from high-power cables and sources of electromagnetic interference. Use proper shielding and ensure secure, clean connections at both ends. For complex installations, document each transmitter/receiver pair, the source devices, and the control commands involved so maintenance and future upgrades are straightforward.
Frequently asked questions
Q: What is the Kramer TP-574 used for?
A: The TP-574 is a twisted pair receiver designed to receive HDMI, RS-232, and IR signals transmitted over a twisted pair link. It works with the TP-573 transmitter to extend AV signals across a single cable while preserving control signals for remote management.
Q: Do I need both the TP-573 transmitter and the TP-574 receiver?
A: Yes. The TP-573 transmitter converts HDMI, RS-232, and IR signals into a twisted pair format, and the TP-574 receiver converts them back for display and control. Using both components together provides a complete HDMI over twisted pair solution.
Q: Can this setup be used in professional AV environments?
A: Absolutely. The TP-574, in combination with the TP-573, is designed for professional AV applications such as conference rooms, classrooms, hospitality, and digital signage where reliable signal transmission and centralized control are essential.
Q: What type of cabling is required?
A: The system uses standard twisted pair cabling recommended by Kramer for HDMI over twisted pair installations. Using the correct cable type helps ensure signal integrity and reliable operation over the configured distance.
Q: Is extra hardware needed for control integration?
A: The TP-574 supports bi-directional RS-232 and IR signaling, which allows integration with common control systems. Depending on your setup, you may also interface with a control processor or automation system to coordinate display power, input switching, and other remote commands.
