Kramer Video Console TP-582 System

Discover a professional-grade AV distribution solution with the Kramer Video Console, featuring the TP-582 transmitter and TP-582R receiver. This high-quality twisted-pair system is designed to carry HDMI video, Ethernet 100BaseT data, and bidirectional RS-232 and IR control signals over a single CAT cable. The transmitter, TP-582T, smartly selects one of two HDMI inputs and converts the chosen source along with control signals into a single twisted-pair channel, while the TP-582R decodes the signal back to HDMI at the display end. Ideal for classrooms, conference rooms, media suites, and sophisticated home theater installations, the Kramer Video Console provides flexible source selection, robust control capabilities, and a streamlined installation that minimizes cable clutter without sacrificing performance.

• Extended HDMI distribution over twisted pair: transmit HDMI video, Ethernet data, and control signals (RS-232 and IR) over a single CAT5e/CAT6 cable, reducing cable runs and simplifying room design while preserving signal integrity.
• Two-input transmitter with source switching: the TP-582T can select between two HDMI sources, enabling seamless source changes at the transmitter side before transmission to the display, which is perfect for teaching demonstrations and multi-source presentations.
• Bidirectional RS-232 and IR control: carry RS-232 and IR input signals through the twisted pair, allowing centralized control of displays, projection systems, and other connected peripherals from a remote location or a control system processor.

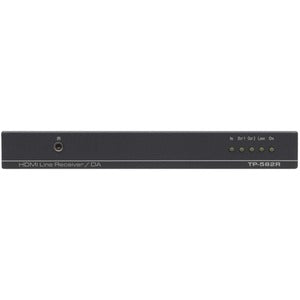

• Receiver reconstructs HDMI at the display: the TP-582R faithfully converts the twisted-pair signal back to HDMI at the monitor or projector, while continuing to support RS-232 and IR channels for local device control and seamless integration with automation systems.
• Professional-grade design for demanding environments: built for reliable, long-term operation in education, corporate, and residential spaces, with robust connectors, solid build quality, and straightforward, installation-friendly setup.

Technical Details of Kramer Video Console

• System components: TP-582T transmitter and TP-582R receiver designed to work together as a complete HDMI/Ethernet/RS-232/IR over twisted pair solution.
• Carried signals: HDMI video, Ethernet 100BaseT data, bidirectional RS-232, and IR control signals are all transmitted over a single twisted pair link.
• Distribution medium: standard twisted pair cable (CAT5e or CAT6) suitable for professional AV installations.
• Transmitter capabilities: two HDMI inputs plus conversion of input signals and control data to the twisted pair for transmission to the receiver.
• Receiver capabilities: decodes the twisted pair to HDMI for display and maintains RS-232 and IR channels for remote control applications.
• Power requirements: external power supplies are used to power both the transmitter and the receiver for reliable operation.

how to install Kramer Video Console

• Plan the installation route between the HDMI sources, the display, and the location of the TP-582T transmitter and TP-582R receiver. Use standard CAT5e/CAT6 cables to make the twisted-pair link as direct and tidy as possible.
• Connect your two HDMI sources to the TP-582T transmitter’s HDMI input ports. If needed, connect RS-232 and IR control interfaces to the transmitter to enable centralized control from the control system.
• Connect the TP-582T transmitter to the near end of the twisted-pair link via the appropriate RJ-45 connector. Ensure the link is secure and protected from physical damage.
• Run the twisted-pair cable to the TP-582R receiver at the display end. Connect the HDMI display to the TP-582R’s HDMI output and ensure a clean handshake with the source device.
• Connect RS-232 and IR control devices at the receiver side as required by your installation, and apply power to both the transmitter and receiver using their respective external power supplies.
• Power up the system and use the TP-582T’s HDMI input-switching control to select the desired source. Verify video quality, audio, and the responsiveness of RS-232/IR control from the remote location or control processor.
• Perform a final cable management check, secure all connections, and test the installation under typical usage conditions to confirm stability and reliability across the twisted-pair link.

Frequently asked questions

• What is the Kramer Video Console TP-582 system? It is a two-piece HDMI distribution solution consisting of a transmitter (TP-582T) and a receiver (TP-582R) that carries HDMI video, Ethernet data, and control signals (RS-232 and IR) over a single twisted pair cable, enabling long-distance distribution and centralized control across AV setups.
• Do I need both a transmitter and a receiver? Yes. The transmitter sends HDMI and control signals over twisted pair, and the receiver reconstructs HDMI at the display end while preserving RS-232 and IR channels for remote control and automation integration.
• What sources can I connect? The TP-582T provides two HDMI inputs, allowing you to switch between two HDMI sources before transmission to the display. This makes it easy to present from multiple devices without running separate cables for each source.
• What cables are required? Use standard CAT5e or CAT6 twisted pair cable to connect the transmitter and receiver. This is the backbone of the system, carrying HDMI, Ethernet, RS-232, and IR signals in a single link.
• Can I control displays and devices remotely? Yes. The system carries RS-232 and IR control signals across the link, enabling centralized control from a remote location or a control processor, which is ideal for conference rooms and classroom automation.
