Description

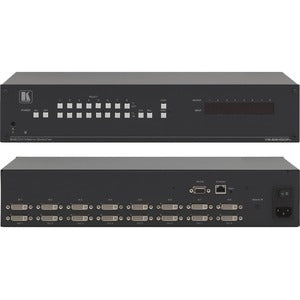

Kramer VS-88HDCPxl 8x8 DVI (HDCP) Matrix Switcher
The Kramer VS-88HDCPxl is a high-performance matrix switcher designed for professional AV installations that require pristine digital video routing. Built to handle DVI-D signals with HDCP protection, this 8x8 matrix lets you route any of eight input sources to any or all of eight outputs without compromising video integrity. Its internal reclocking and equalization circuitry compensate for signal loss over longer cable runs, ensuring sharp, stable images even in complex setups that mix different display types and resolutions. Whether you’re equipping a control room, lecture hall, digital signage network, or multi-display showroom, the VS-88HDCPxl gives you flexible control, robust performance, and hassle-free operation in a compact, rack-mountable package.
- Eight input and eight output channels: Connect eight digital sources to eight displays or projectors with HDCP protection, and route any input to any output or distribute a single source to multiple displays in real time for coordinated presentations or synchronized video walls.
- Reclocking and signal equalization: Built-in reclocking restores the timing of incoming DVI-D signals, preserving image quality across long HDMI/DVI runs and across various equipment brands, eliminating degradation and ensuring reliable performance.
- HDCP-compliant video routing: Fully supports HDCP-protected content, enabling seamless integration with modern Blu-ray players, media servers, and other HDCP devices without compatibility issues or handshake problems.
- Comprehensive EDID management: Offers flexible EDID handling options so displays and source devices negotiate optimal resolutions and refresh rates, minimizing compatibility hiccups during setup or reconfiguration.
- Flexible control options: Manage the matrix via front-panel controls, RS-232, IR, and network-style command interfaces, giving your installation team multiple ways to automate, schedule, or troubleshoot routing without interrupting the show.
Technical Details of Kramer VS-88HDCPxl 8x8 DVI (HDCP) Matrix Switcher
- Type and connectivity: 8×DVI-D (HDCP) input ports and 8×DVI-D (HDCP) output ports; preserves digital video integrity across all connections.
- Video processing: Reclocking and equalization on each input path to maintain sharp, artifact-free images independent of cable length or source resolution.
- HDCP compliance: Full HDCP support to ensure compatibility with protected content and modern display devices.
- Resolution and bandwidth: Supports common high-definition and computer resolutions up to standard PC and home theater definitions, delivering clear, artifact-free pictures on compatible displays.
- EDID management: Flexible options for EDID reading, copying, and forcing, allowing precise control over source-to-display negotiation in mixed-device environments.
- Control interfaces: Front-panel controls for quick on-site routing, along with RS-232, IR, and Ethernet-like control options for integration with room control systems or automation software.
- Routing capability: Any input to any output, with the ability to duplicate a single source to multiple outputs for synchronized demonstrations or multi-screen installations.
- Power and form factor: Rack-mountable 1U chassis designed for secure, space-efficient installation in equipment racks across venues and facilities.
- Build quality and reliability: Designed for continuous operation in demanding environments, with robust shielding and protection against common electrical disturbances.
How to install Kramer VS-88HDCPxl
- Plan your routing map: Determine which eight sources will feed which eight displays. Create a matrix diagram or layout plan to simplify cabling and future reconfiguration.
- Prepare cabling: Use high-quality, well-shielded DVI-D cables suitable for your resolutions. Keep runs as short as feasible and route cables away from power lines to minimize interference.
- Connect inputs: Attach each source device (players, computers, encoders) to the eight DVI-D input ports on the VS-88HDCPxl. Confirm HDCP status and ensure devices are powered on before handshake.
- Connect outputs: Connect each display or projector to the eight DVI-D output ports. If you plan to display the same source on multiple displays, plan the routing to optimize bandwidth and processing load.
- Configure EDID and routing: Use the front panel or your control interface to set EDID options (read/copy/force) and establish the initial input-to-output routing. Save a rack-friendly profile for quick recall.
- Test and adjust: Power the system and verify each route. Check for HDCP handshakes, signal integrity, and color accuracy. Make adjustments to EDID or input scaling if needed to achieve the desired results.
- Integrate control systems: If using RS-232, IR, or network control, load the appropriate control commands into your automation system. Confirm remote commands effectively switch sources and adjust routing in real time.
- Label and document: Clearly label cables and ports, and document your routing matrix for future maintenance or expansion. Keep a copy of the current configuration for quick recovery after maintenance.
Frequently asked questions
- What is the Kramer VS-88HDCPxl? It is an 8×8 DVI-D (HDCP) matrix switcher that enables flexible routing of eight input sources to eight outputs with built-in signal re-clocking and EDID management, designed for professional AV installations.
- Does the VS-88HDCPxl support HDCP-protected content? Yes. The device is HDCP-compliant, allowing secure handling of protected video streams from devices such as Blu-ray players, media servers, and certain gaming devices while routing to multiple displays.
- Can I route multiple inputs to multiple outputs at once? Absolutely. The matrix supports any-to-any routing, including sending a single source to all displays or distributing different sources to different displays according to your preset configuration.
- What control options are available? You can control the switcher from the front panel, via RS-232, IR, and through supported network or automation interfaces for integration into larger AV control systems.
- What installation considerations should I keep in mind? Plan your cabling to minimize signal loss, use appropriate DVI-D cables, and correctly configure EDID to ensure reliable handshake with every connected display. Rack-mount the unit for stable operation and consider environmental factors such as temperature and airflow.
- What resolutions does it support? The VS-88HDCPxl supports standard high-definition and computer resolutions compatible with DVI-D, with reclocking ensuring stable performance across a range of displays and sources.
