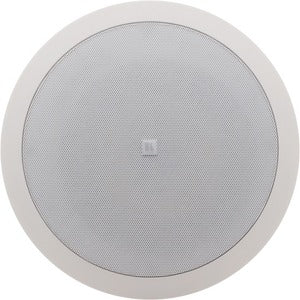

Kramer Yarden 6-C 2-Way Ceiling Mountable Speaker - 30 W RMS - White

The Kramer Yarden 6-C is a compact, high-performance ceiling speaker designed for professional environments where clear voice and music reproduction are essential. With a Kevlar® cone woofer, a precise 2nd level crossover, and a versatile multi-tap transformer that supports 8 Ω (bypassing the transformer) or 70 V/100 V configurations, this 2-way speaker is ideal for discreet installations in retail spaces, offices, hotels, and commercial venues. Its closed-back design minimizes acoustic leakage, delivering consistent coverage even in challenging ceiling cavities, while the white finish blends seamlessly with modern interiors. The Yarden 6-C delivers reliable, evenly distributed sound for background music, paging, announcements, and foreground audio, all from a compact ceiling footprint.

• The Yarden 6-C boasts a two-way, closed-back construction paired with a Kevlar® woofer for tight, responsive bass and clear midrange. This combination provides a balanced, natural sound with excellent projection, making it suitable for both background music and intelligible speech in commercial settings.
• Versatile power options with a multi-tap transformer allow easy integration into 8 Ω systems (bypassing the transformer) or 70 V/100 V distributed audio deployments. This makes it scalable for single-room installations or large, multi-speaker arrays across expansive spaces.
• Compact, ceiling-mountable form factor ensures minimal visual intrusion while delivering wide coverage. The closed-back enclosure helps resist acoustic bleed into adjacent spaces and reduces vibrations that can color sound depending on ceiling construction.
• Premium materials and rugged construction are designed for long-term reliability in commercial environments. The white finish provides a clean, professional look that blends with most ceiling types and interior designs, while the sturdy grill protects the driver from dust and incidental contact.
• Ideal for array installations, the Yarden 6-C is engineered to maintain consistent performance across multiple units in a single space. Its precise crossover and driver alignment help achieve uniform coverage, reducing dead zones and ensuring intelligible announcements and music playback throughout the venue.

Technical Details of Kramer Yarden 6-C 2-Way Ceiling Mountable Speaker - 30 W RMS - White

• Power handling: 30 W RMS
• Impedance options: 8 Ω (bypassing the transformer) or 70 V/100 V multi-tap
• Woofer: Kevlar® reinforced cone for rigid, responsive bass
• Crossover: 2nd level design to ensure smooth high-frequency response and coherent imaging
• Enclosure: Closed-back, compact ceiling-mountable design for isolated sound and minimal cavity interaction
• Finish: White, designed to blend with standard ceiling colors and fixtures
• Applications: Ideal for background music, paging, and foreground audio in commercial spaces; suitable for array installations

how to install Kramer Yarden 6-C 2-Way Ceiling Mountable Speaker

• Power down the audio system and plan the installation layout to achieve even acoustic coverage across the target area. Determine the proper transformer tapping (8 Ω bypass or 70 V/100 V) based on your amplifier or PA distribution requirements.
• Cut the ceiling hole using the included mounting template or the dimensions specified by Kramer for the Yarden 6-C. Ensure the ceiling cavity has enough clearance for the enclosure and wiring, and verify that there is no obstruction behind the installation area.
• Route the speaker wire from the amplifier or distribution point to the ceiling opening. If using 70 V/100 V, set the multi-tap transformer to the appropriate wattage to match the system design. Use proper insulation and grommets to protect the conductors where they pass through the ceiling.
• Attach the mounting bracket or flanges as provided, align the speaker, and secure it with the recommended fasteners. Ensure the enclosure is flush with the ceiling surface and that the grille sits evenly without gaps.
• Connect the speaker wires to the terminals, verify polarity, and perform a system test at low volume. If multiple Yarden 6-C units are installed for an array, check each unit’s phase alignment and coverage to ensure uniform sound distribution. Finally, adjust the amplifier level and the 70 V/100 V taps as needed to achieve the desired overall sound in the space.

Frequently asked questions

• Q: What power options does the Kramer Yarden 6-C support?
  A: It features a multi-tap transformer for selecting 8 Ω (bypassing the transformer) or 70 V/100 V settings, enabling flexible integration in both direct-drive and distributed speaker systems.
• Q: Is the Yarden 6-C suitable for ceiling installations?
  A: Yes. It is specifically designed as a ceiling-mountable, compact two-way speaker with a closed-back enclosure for discreet installation and minimal sound leakage.
• Q: What material is the woofer made from?
  A: The speaker uses a Kevlar® reinforced woofer, which provides stiffness and low distortion for clearer low-end performance.
• Q: Can these speakers be used in an array configuration?
  A: Absolutely. The Yarden 6-C is designed with array installations in mind, particularly when connected to 70 V/100 V systems to ensure consistent coverage across multiple units.
• Q: What is the finish and where is it best used?
  A: The Yarden 6-C comes in a white finish, ideal for commercial interiors where a clean, professional look is important. It works well in office lobbies, retail environments, conference rooms, and hospitality spaces.
