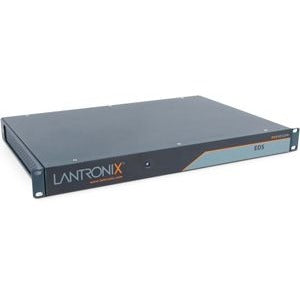

Lantronix EDS3016PR Device Server — 16-Port Serial-to-Ethernet Gateway for Enterprise-Grade Remote Management

The Lantronix EDS3016PR is an enterprise-grade, rack-mountable device server that brings powerful serial-to-Ethernet capabilities to modern IT and edge environments. Built to consolidate and remotely manage a wide range of equipment—from medical devices and POS terminals to security systems and networked sensors—the EDS3016PR delivers scalable, secure access to up to sixteen serial ports across a robust 1U form factor. Whether you’re deploying a large clinical facility, a distributed retail network, or a data center edge, this gateway provides centralized control, reliable performance, and flexible networking to simplify complex deployments while protecting sensitive data and operations.

• 16-port serial-to-Ethernet gateway for scalable deployments: The EDS3016PR enables simultaneous access to sixteen independent serial channels (RS-232/422/485) over Ethernet, making it ideal for data-heavy environments that require bulk device management without sacrificing performance or reliability. Each port can be individually configured for baud rate, parity, data bits, and stop bits, supporting diverse devices and legacy equipment in a single, consolidated platform.
• Enterprise-grade remote management and security: Take full control with a secure web-based management interface, SSH, TLS/SSL encryption, and role-based access control. IP-based ACLs, SNMP v2/v3, and firmware update mechanisms provide robust protection against unauthorized access while ensuring devices stay patched against evolving threats. This combination of security features makes the EDS3016PR suitable for regulated environments where data integrity and device visibility are critical.
• Dual-port networking and resilient connectivity: With up to two Gigabit Ethernet interfaces, the EDS3016PR supports advanced networking features such as link aggregation, VLAN tagging, QoS, and proactive failover. This ensures uninterrupted remote access even if one network path experiences a disruption, which is essential for critical applications like medical equipment monitoring or security camera control.
• Rack-mountable, durable, and scalable design: Engineered for data centers, labs, and edge deployments, this 1U device server fits standard 19-inch racks for efficient space utilization. Its modular, hot-swap-friendly footprint allows seamless integration with existing infrastructure while offering room to expand to even larger port counts in the future.
• Flexible deployment and serviceability: The EDS3016PR supports flexible port mapping, remote reboot, and centralized configuration management. IT teams can roll out consistent device policies across hundreds of devices, simplify cabling through consolidated console access, and accelerate deployment with pre-configured templates and centralized firmware management.

Technical Details of Lantronix EDS3016PR Device Server

• Ports: 16-channel serial ports supporting RS-232, RS-422, and RS-485 configurations
• Baud rate and data settings: Configurable per-port baud rates (up to 921.6 kbps), data bits, parity, and stop bits
• Networking: Dual 10/100/1000 Mbps RJ-45 Ethernet interfaces for failover, load balancing, or VLAN separation
• Management: HTML5 web UI, SSH (v2), Telnet (legacy), and SNMP v2/v3 for centralized monitoring and control
• Protocols: TCP, UDP, IPv4/IPv6, HTTP/HTTPS, DNS, DHCP, NTP for synchronized timekeeping
• Security: TLS/SSL encryption, ACLs, user authentication, and secure firmware updates
• Form factor: 1U rack-mountable chassis with standard 19" rack compatibility
• Power: External power options compatible with standard AC power inputs (100-240V); configuration supports redundancy where applicable
• Operating environment: 0–50°C ambient temperature, 5–95% non-condensing humidity
• Certifications: CE, FCC Class A (typical for enterprise networking equipment)

How to Install Lantronix EDS3016PR Device Server

Installing the EDS3016PR is designed to be straightforward for IT teams, network administrators, and field technicians. Start by identifying the intended serial devices and the topology of your Ethernet network. Ensure you have appropriate rack space, power distribution, and a management network segment isolated from production traffic if security policy requires it. The following steps outline a typical deployment scenario:

1) Prepare the rack: Install the EDS3016PR into a standard 19" rack in a clean, ventilated area. Secure the chassis using the mounting hardware provided, ensuring there is adequate clearance for airflow and cable management. Connect the power supply to a properly grounded AC outlet, and if your deployment includes redundant power, attach the second supply as per your facility’s power architecture.

2) Connect serial devices: Use appropriate serial cables to link each device to a dedicated RS-232/422/485 port on the EDS3016PR. If you are consolidating multiple device types, prepare per-port configuration notes (baud rate, parity, data bits, stop bits) so you can apply the correct settings after initial network configuration.

3) Establish network access: Attach the Ethernet cables to the two RJ-45 network ports. Decide whether you will operate in a single gateway mode, static IP mode, or DHCP-assigned mode. If you are using VLANs, configure your switches and router to permit the EDS3016PR to communicate on the appropriate VLANs while respecting security boundaries.

4) Access the management interface: Power up the device and locate its IP address via your DHCP server, network scanner, or console output. From a workstation on the management network, open a browser and navigate to the device’s HTTPS management URL. Log in with credentials established by your security policy or a temporary default followed by a forced reset to a known strong password.

5) Configure ports and services: Use the web UI to define per-port serial settings (baud rate, data bits, parity, stop bits). Create port-to-device mappings, set up user accounts with appropriate roles, enable TLS for remote access, and tune SNMP or syslog settings for monitoring. Consider applying site-wide templates to ensure consistency across all devices in your fleet, and enable firmware update notifications to keep the gateway secure and up to date.

6) Deploy and verify: After saving configurations, test remote access to each connected serial device. Verify data integrity, latency, and reliability by running representative commands or data transmissions. Confirm that failover between Ethernet interfaces works by simulating a network outage and observing uninterrupted access to critical devices.

7) Documentation and maintenance: Document the final configuration, including per-port settings, user roles, and IP addresses. Schedule regular firmware updates and security audits, and implement alerting to notify administrators of anomalous behavior or connectivity issues. A well-documented deployment reduces troubleshooting time and supports scalable growth as your environment expands.

With these steps, you’ll maximize uptime, simplify administration, and ensure that every serial-connected device—whether in a hospital ward, retail checkout area, or manufacturing floor—remains responsive and controllable through a single, secure gateway.

Frequently asked questions

• Q: What is the Lantronix EDS3016PR?

  A: The EDS3016PR is a 16-port enterprise-grade device server that converts serial interfaces into Ethernet-enabled endpoints. It enables remote access, management, and monitoring of multiple serial devices from a centralized location, suitable for medical equipment, POS terminals, and security systems.

• Q: How many serial ports does it offer and what types of serial connections are supported?

  A: It provides 16 independent serial ports supporting RS-232, RS-422, and RS-485 configurations, allowing flexible communication with a wide range of devices.

• Q: Does the EDS3016PR support IPv6 and secure remote management?

  A: Yes. It supports IPv4 and IPv6, along with secure remote management through HTTPS/TLS, SSH, and SNMP v3, ensuring encrypted, authenticated access to devices and configurations.

• Q: Can I manage many of these devices centrally?

  A: Absolutely. The unit includes features for centralized configuration, template-based deployment, remote firmware updates, per-port settings, and role-based access controls, which simplify management across a large fleet of gateways.

• Q: What kind of networking should I plan for?

  A: Plan for dual Gigabit Ethernet connectivity, VLAN support, and redundancy if your environment requires high availability. The EDS3016PR is designed to integrate into enterprise networks with reliable performance and scalable management capabilities.

• Q: Is rack mounting and power support included?

  A: The device is 1U rack-mountable for standard 19" racks. It supports standard AC power inputs with options for redundancy where applicable, aligning with typical data center or edge deployments.
