Description

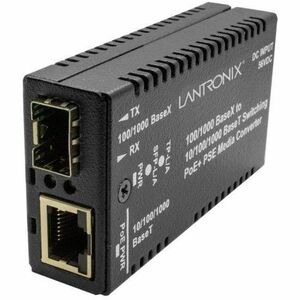

Lantronix M/GE-PSW-PSE-01 Transceiver/Media Converter
The Lantronix M/GE-PSW-PSE-01 Transceiver/Media Converter is a compact, stand-alone solution designed to bridge copper Ethernet networks with fiber infrastructure while delivering Power over Ethernet Plus (PoE+) to connected devices. Engineered as a fixed-configuration, plug‑and‑play device, it combines a high‑speed 10/100/1000Base‑T PoE+ RJ-45 port with a 100/1000Base‑X SFP slot, enabling seamless media conversion and power delivery in a single footprint. This makes it a versatile choice for edge deployments that require reliable PoE-powered devices—such as IP cameras, wireless access points, or IP phones—while extending connectivity over fiber to remote locations, data centers, or security installations. Its robust, compact design and fixed setup ensure quick installation, minimal maintenance, and dependable performance in a wide range of environments, from small offices to industrial applications.
- Flexible copper-to-fiber conversion with PoE+ support: The M/GE-PSW-PSE-01 consolidates a PoE+ enabled RJ-45 port and a dedicated 100/1000Base‑X SFP uplink, enabling reliable conversion between copper Ethernet and fiber networks. This configuration is ideal for edge devices that require both network access and PoE power, such as security cameras, IP phones, or wireless access points, while letting you extend the network over longer distances via fiber. The fixed design ensures consistency across installations, reducing the potential for misconfiguration and ensuring predictable behavior in mission-critical setups.
- Power over Ethernet Plus (PoE+) capability for demanding devices: Equipped with an IEEE 802.3at PoE+ capable RJ-45 port, the converter can supply power to compatible PoE-enabled devices on the copper side. This enables you to deploy power-hungry devices at the edge without a separate power source at the device location, simplifying cabling, reducing clutter, and improving reliability in remote or hard-to-reach areas. PoE+ support is particularly valuable for surveillance cameras, high‑definition IP cameras, pan-tilt-zoom devices, and next-generation wireless access points where both data and power must be delivered over a single Ethernet link.
- Plug-and-play, fixed-configuration design for rapid deployments: The M/GE-PSW-PSE-01 ships with a fixed configuration optimized for immediate use. There’s no need for complex management interfaces or software configuration, making it an excellent choice for installations that require quick, predictable results. Its unmanaged nature reduces potential downtime associated with misconfigurations and firmware updates, while the compact, standalone form factor makes it suitable for space‑constrained environments such as wall-mount panels, small telecom closets, or field deployments where reliability and simplicity matter most.
- Versatile uplink with a single SFP slot: Aside from the PoE+ RJ-45 port, the device includes a single 100/1000Base‑X SFP slot that accepts compatible SFP transceivers. This capability supports a wide range of fiber types and distances, from short-range multi-mode links to longer-range single-mode connections, depending on the SFP module you choose. The SFP slot provides flexible scalability, allowing you to tailor your fiber connection to the exact distance and fiber type required by your network topology, data center, or campus backbone while maintaining PoE+ capabilities on the copper side.
- Rugged, compact design with reliable operation: Built for real-world deployments, the Lantronix converter features a compact, durable enclosure designed to endure typical office, data-center, or industrial environments. The no-fan, passive cooling approach minimizes moving parts and noise, while the rigid housing offers EMI resistance and robust field performance. Its small footprint makes it easy to mount in tight spaces, on a wall, shelf, or inside a small cabinet, making it an unobtrusive yet powerful addition to any hybrid copper-fiber network architecture.
Technical Details of Lantronix M/GE-PSW-PSE-01
- Ports: 1x RJ-45 PoE+ port (10/100/1000Base‑T) and 1x 100/1000Base‑X SFP slot. SFP module not included; choose an appropriate module for your fiber type and distance.
- PoE standard: IEEE 802.3at PoE+ on the copper port, enabling powering of compatible devices over Ethernet on the device side of the converter.
- Data path: Fixed, unmanaged, non-switching bridge between copper Ethernet and fiber uplink with support for auto-negotiation on the copper side and standard SFP behavior on the fiber side (dependent on the chosen SFP module).
- Performance: Up to 1 Gbps aggregate data rate; copper link supports 10/100/1000 Mbps, while the fiber link supports 100/1000 Mbps depending on SFP transceiver choice.
- Power considerations: The unit can be powered via PoE on the copper port or via an external power arrangement depending on installation and model specifics. For precise power budgeting and availability, consult the product manual or your purchasing documentation.
- Physical design: Stand-alone, compact form factor designed for easy placement in tight spaces, wall-mount applications, or small equipment racks. No active cooling fans required in standard operation, contributing to silent and maintenance-free performance.
- Compliance and environment: Built to meet common industry certifications for Ethernet hardware; appropriate safety and EMI compliance markings apply. Exact certification details should be verified on the product datasheet or packaging for your region.
how to install Lantronix M/GE-PSW-PSE-01
Installing the Lantronix M/GE-PSW-PSE-01 is straightforward and designed for quick, reliable setup. Follow these steps to achieve optimal performance and a stable copper-to-fiber link with PoE+ capabilities:
- Plan your topology: Determine the copper device that will receive PoE on the RJ-45 port (for example, an IP camera or access point) and decide the fiber uplink path. Select an appropriate SFP module that matches your fiber type (multimode for SX, single-mode for LX, and distance requirements).
- Prepare the fiber link: Install and insert the chosen SFP module into the SFP slot on the converter. Ensure the module is fully seated and that the fiber connectors (typically LC) are clean and correctly mated to the corresponding ports on the remote device or network equipment.
- Connect the copper device: Use a standard Ethernet patch cable to connect the PoE-enabled device to the RJ-45 port on the converter. If your deployment relies on PoE power delivery, ensure the source PoE switch or injector can supply the required power within IEEE 802.3at guidelines.
- Connect the fiber link: Attach the fiber patch cord from the SFP module to the remote device, switch, or distribution fiber network. Verify that the fiber type and distance align with the SFP’s capabilities, and that connectors are properly terminated to minimize signal loss.
- Power on and verify: Apply power to the converter (via the expected power input or through PoE as supported by your setup). Observe the Power, Link/Act indicators on both copper and fiber sides to confirm stable connectivity. If PoE is used, monitor the PoE LED on the copper port to ensure the PD is receiving power.
- Test and validate: Run basic connectivity tests (ping, traceroute, or application-level tests) between the copper device and the fiber-connected network. Confirm data transmission at the expected speeds and verify PoE operation for the powered device. Adjust SFP selection or cabling if you encounter link issues or reduced performance.
Frequently asked questions
- What is the Lantronix M/GE-PSW-PSE-01? It is a compact, stand-alone transceiver/media converter that provides a fixed, plug-and-play bridge between a PoE+ Ethernet copper port and a fiber-based 100/1000Base‑X uplink, enabling seamless copper-to-fiber connectivity while delivering PoE power to connected devices on the copper side.
- Does it support PoE+? Yes. The RJ-45 port supports PoE+ (IEEE 802.3at), allowing power delivery to compatible PoE-enabled devices at the edge of the network.
- Is external power required? Depending on deployment, the device can be powered by PoE on the copper side or by an external power supply. For installations that rely solely on PoE for powering the converter, ensure the source provides adequate power. Always refer to the product manual for precise power requirements for your SKU.
- What SFP modules are compatible? The SFP slot accepts standard SFP transceivers compatible with 100/1000Base-X fiber. Choose an SFP transceiver appropriate for your fiber type (multimode or single-mode) and distance. SFP modules are not included with the converter and must be purchased separately.
- Is this a managed device? No. The Lantronix M/GE-PSW-PSE-01 is an unmanaged, fixed-configuration media converter designed for simple, reliable plug-and-play operation without software configuration.
