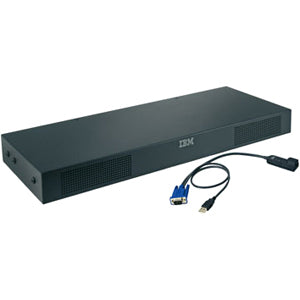

Lenovo 1754A1X KVM Switch — Local Console Manager for IBM System x

The Lenovo 1754A1X KVM Switch is a compact, enterprise-grade Local Console Manager (LCM) designed to simplify and secure out-of-band access to IBM System x and BladeCenter environments. As the 8-port LCM configuration in the 1754 family, this device consolidates keyboard, video, and mouse (KVM) control along with robust local management, enabling administrators to switch between multiple servers with ease. Built to minimize complexity in busy data centers, the 1754A1X delivers reliable, BIOS-level access for maintenance, troubleshooting, firmware updates, and emergency recoveries—even when systems are powered off or network paths are unavailable. All of this is achieved with a focus on security, ease of use, and seamless integration into existing IBM System x and BladeCenter infrastructures.

• Centralized local console access: Manage up to eight IBM System x or BladeCenter servers from a single, integrated console, reducing the need to physically move between hosts and saving time during routine maintenance and critical outages.
• Seamless port switching and control: Rapidly switch between servers using intuitive controls, hotkeys, or integrated management software, ensuring rapid response during BIOS-level configuration, firmware updates, and troubleshooting sessions.
• Enhanced out-of-band local management: Provides reliable local access for administrators regardless of network status, enabling critical maintenance tasks, system recovery, and BIOS-level changes without depending on operating system availability.
• Security and access governance: Designed with secure authentication and access controls to protect console sessions, ensuring that only authorized personnel can view and manage connected servers.
• Rack-friendly reliability and compatibility: Built to fit standard data-center racks with a compact footprint, engineered for compatibility with IBM System x and BladeCenter deployments to streamline integration and reduce deployment time.

Technical Details of Lenovo 1754A1X KVM Switch

• Product family: Local Console Manager (LCM) 8 configuration for KVM switching
• Ports: 8-channel KVM switching capability for multiple servers
• Compatibility: Optimized for IBM System x and BladeCenter environments
• Management features: Enhanced out-of-band local access and secure management capabilities
• Security: Access control and authentication designed to protect console sessions

How to install Lenovo 1754A1X KVM Switch

Setting up the Lenovo 1754A1X KVM Switch is straightforward and designed to integrate smoothly into existing IBM System x and BladeCenter configurations. Begin by preparing your rack space and powering down the servers that will connect to the KVM switch. Position the 1754A1X in a compatible rack bay, then connect each of the eight servers to the corresponding KVM ports using the appropriate KVM cables. Attach the local console (keyboard, video, and mouse) to the management port designated for out-of-band access. If supported by your environment, connect the optional management interface or console to a secure maintenance network for remote access during off-hours. Finally, power on the switch and configure access policies, port assignments, and any firmware updates through the local management interface. Once configured, you’ll be able to quickly switch between servers, perform firmware updates, and manage BIOS-level settings without relocating physically to each server.

• Mount the KVM switch in a standard 19-inch rack and align with adjacent equipment for easy access.
• Connect each server’s KVM cable to the corresponding port on the 1754A1X, labeling ports for quick identification.
• Attach the local console (keyboard, mouse, monitor) to the designated management port, ensuring display and input are correctly routed.
• Power on the switch and access the management interface to configure user access, port mappings, and security settings.
• Update firmware if available and create a routine maintenance plan to ensure ongoing reliability and security.

Frequently asked questions

• What is the Lenovo 1754A1X KVM Switch used for? It is a Local Console Manager designed to provide centralized, out-of-band local access and control to IBM System x and BladeCenter servers through an 8-port KVM configuration, enabling rapid server management, maintenance, and BIOS-level interventions.
• How many servers can I connect? The 1754A1X supports up to eight servers in its LCM 8 configuration, allowing administrators to manage a small to mid-size cluster from a single console.
• Is this device suitable for environments with limited network connectivity? Yes. By offering enhanced out-of-band local access, administrators can manage and troubleshoot systems even when network connectivity is degraded or unavailable.
• Does it integrate with IBM System x and BladeCenter products? Yes. The Lenovo 1754A1X is designed to be compatible with IBM System x and BladeCenter environments, providing seamless integration with existing hardware and infrastructure.
• What security features are included? The switch provides authentication and access controls to protect console sessions, helping ensure that only authorized personnel can view and manage connected servers.
