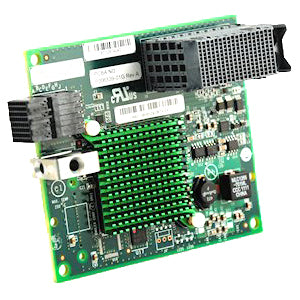

Lenovo Flex System FC3052 2-Port 8Gb Fibre Channel Adapter

Experience scalable, high-performance storage networking with the Lenovo Flex System FC3052 2-Port 8Gb Fibre Channel Adapter. Designed to fit Lenovo Flex System platforms, this adapter delivers reliable, low-latency 8Gb Fibre Channel connectivity for critical enterprise storage, virtualization workloads, and data center operations. Built to integrate seamlessly into Flex System blade and rack deployments, the FC3052 helps you maximize I/O density, simplify management, and scale your SAN fabric as your storage needs evolve. From rapid provisioning to streamlined management, this adapter provides the enterprise-grade connectivity required to keep your storage infrastructure responsive in today’s demanding environments.

• High-speed 8Gb Fibre Channel performance: two independent 8Gb FC ports support full duplex operations, delivering fast, predictable access to storage with reduced latency. This dual-port design enables parallel I/O paths, improving throughput for demanding workloads such as databases, virtualization, and large-scale backups while maintaining low CPU impact on the host server.
• Optimized for Lenovo Flex System: a purpose-built adapter that integrates with the Flex System chassis and blade ecosystem, ensuring dependable operation within Lenovo’s unified management and deployment workflow. Its form factor and slot compatibility are tailored to maximize rack density and minimize cabling complexity in mixed environments.
• Enhanced reliability and scalability: dual-port connectivity with redundant paths supports SAN architectures that demand high availability and fault tolerance. As storage growth occurs, the FC3052 accommodates expanding fabrics and zoning strategies without requiring major redraws of your server connectivity.
• Simple management and integration: works with Lenovo management tools like XClarity and standard SAN management software, enabling straightforward configuration of zoning, LUN mapping, and multipath I/O. The FC3052 integrates cleanly with existing storage arrays and fabric technologies, reducing time-to-value for storage provisioning and day-to-day operations.
• Versatile storage compatibility and future-ready design: compatible with leading storage arrays and SAN fabrics, the FC3052 supports a wide range of enterprise storage solutions. Its robust performance profile helps you consolidate storage access across virtualization hosts, physical servers, and cloud-enabled environments, while providing a clear upgrade path for future SAN growth.

Technical Details of Lenovo Flex System FC3052 2-Port 8Gb FC Adapter

• Product type: Fibre Channel adapter
• Ports: 2 x 8 Gb Fibre Channel ports
• Interface: PCIe host bus adapter compatible with Flex System mezzanine/PCIe slots
• Speed: 8 Gbps per port (full duplex)
• Form factor: Flex System compatible mezzanine card for blade and dense chassis deployments
• Compatibility: Lenovo Flex System chassis and System x servers designed to support FC3052 family components
• Management: Compatible with Lenovo XClarity and standard SAN management tools for monitoring, firmware updates, and configuration

How to install Lenovo Flex System FC3052 2-Port 8Gb FC Adapter

Installing the FC3052 in a Lenovo Flex System environment is designed to be straightforward, allowing you to quickly provision storage connectivity with minimal downtime. Follow these general steps to install and configure the adapter:

• Power down the Flex System node or blade in accordance with your facility’s maintenance procedures, then remove the chassis side panel to access the expansion slot area. Ensure you are grounded and that you follow anti-static precautions to protect sensitive components.
• Identify the correct PCIe or mezzanine slot that supports the FC3052 in your Flex System enclosure. Align the adapter carefully with the slot and press firmly to seat it fully. Secure the card with any required retaining hardware as specified by Lenovo documentation.
• Reconnect power and boot the system. Access the chassis management interface (such as Lenovo XClarity) to verify the new adapter is detected. Confirm that firmware on the FC3052 is up to date or initiate an update if required.
• Open the host operating system or storage management toolset to configure storage networking. Create or verify Fibre Channel zones and map LUNs to the appropriate hosts as per your storage policy. If multipath I/O is used, configure the necessary multipath settings to ensure path redundancy and load balancing.
• Run a connectivity test to validate port status and fabric access. Use your SAN fabric management tools to verify that both ports are up, show the expected speed (8Gbps per port), and that storage targets are reachable. Document the configuration for ongoing maintenance and support.
• Schedule regular firmware and driver updates through Lenovo XClarity or your preferred management workflow to maintain compatibility with storage arrays and to benefit from performance and reliability improvements.

Frequently asked questions

• Q: What is the Lenovo Flex System FC3052?
  A: The FC3052 is a 2-port 8Gb Fibre Channel adapter designed for Lenovo Flex System environments, providing high-speed Fibre Channel connectivity to storage networks with dual-port redundancy and enterprise-grade reliability.
• Q: Which systems are compatible with the FC3052?
  A: The FC3052 is intended for Lenovo Flex System chassis and compatible System x servers that support the FC3052 family, enabling seamless integration into blade and dense chassis configurations.
• Q: What management tools work with this adapter?
  A: Lenovo XClarity and standard SAN management tools can monitor, configure, and manage the FC3052, including firmware updates, zoning, LUN mapping, and health checks.
• Q: Can I use this adapter in a virtualized environment?
  A: Yes. The FC3052 supports virtualization workloads by providing high-throughput Fibre Channel connectivity, enabling efficient access to shared storage for virtual machines and virtualized applications.
• Q: Do I need any special cabling or switches?
  A: The FC3052 requires standard Fibre Channel cabling and compatible SAN switches/fabrics. Ensure your storage array and SAN fabric are configured to support 8Gb Fibre Channel connectivity and appropriate zoning for access control.
