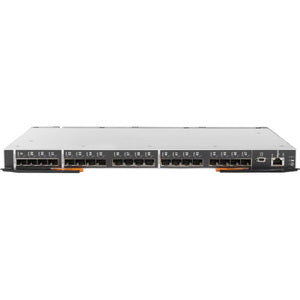

Lenovo Flex System FC5022 24-Port 16Gb ESB SAN Scalable Switch

The Lenovo Flex System FC5022 SAN Scalable Switch is a purpose-built, enterprise-class Fibre Channel switch engineered to power modern data centers with highly virtualized computing and dense Storage Area Network (SAN) environments. This 24-port ESB (Enterprise SAN Bridge) model delivers exceptional performance, reliability, and manageability, making it an ideal backbone for hyper-scale private clouds and storage networks. Built to integrate seamlessly with Lenovo Flex System chassis and storage ecosystems, the FC5022 provides a scalable SAN fabric that grows with your business while maintaining deterministic performance, streamlined administration, and robust data protection. With advanced features designed for virtualization, multi-tenant storage, and high-availability operation, this switch helps storage admins simplify zoning, LUN provisioning, and fabric topology, all while delivering the low latency and high throughput required by today’s demanding workloads.

• High-density 24-port 16Gb Fibre Channel switch designed to handle heavy SAN workloads with deterministic latency, enabling fast backups, rapid provisioning, and seamless VM migration across virtualized data centers.
• Scalable fabric designed for hyper-scale private clouds and dense storage networks; easily expands within Lenovo Flex System infrastructure to accommodate growing storage demands without disrupting services.
• Enterprise-grade reliability with hot-swappable components, redundant power options, and robust cooling, delivering continuous operation in data centers and reducing downtime during maintenance or upgrades.
• Advanced SAN management features including zoning, NPIV support, fabric monitoring, and compatibility with familiar CLI/GUI tools for precise control over paths, LUN visibility, and security policies.
• Optimized for virtualization and private cloud workloads, delivering high IOPS, low latency, and predictable performance for VMs, databases, and big-data applications while integrating with HBAs and storage arrays.

Technical Details of Lenovo Flex System FC5022

• Ports: 24 x 16Gb Fibre Channel ports for dense SAN connectivity
• Fabric type: Enterprise-grade SAN switch designed for Lenovo Flex System environments
• Management interfaces: Supports standard SAN management protocols with accessible CLI/GUI options
• Redundancy: Hot-swappable components with options for redundant power and cooling
• Scalability: Built to grow with the Lenovo Flex System chassis, enabling fabric expansion as storage needs increase
• Features: NPIV support, zoning capabilities, and LUN masking compatibility for efficient storage provisioning
• Form factor: Compact rack-mount design suitable for data center deployments
• Interoperability: Compatible with 16Gb Fibre Channel HBAs and common storage arrays in enterprise environments

How to install Lenovo Flex System FC5022

Installing the FC5022 involves preparation, physical deployment, and fabric configuration to ensure a reliable, high-performance SAN. Follow these general steps to achieve a smooth deployment within a Lenovo Flex System environment:

• Plan and prepare: Verify chassis compatibility, confirm firmware baselines, and ensure you have the appropriate rack rails and cabling to support a secure, accessible installation.
• Rack, cable, and power: Mount the FC5022 in the Lenovo Flex System chassis using the recommended rails, connect 16Gb Fibre Channel cables to your storage arrays and host HBAs, and attach the management port to a secure out-of-band network. Where available, configure redundant power paths for continuous operation.
• Initial boot and health check: Power on the switch, verify POST success, and review LED indicators for port health, cooling, and temperature. Access the management interface via the console or out-of-band network to confirm baseline readiness.
• Firmware and baseline configuration: Update to the latest recommended firmware version, apply security baselines, and configure essential parameters such as time zone, administrator accounts, and SNMP where used. Establish consistent management practices across the SAN.
• Fabric configuration and testing: Create zones, map LUNs to hosts, enable NPIV if required, and perform end-to-end connectivity tests with HBAs to validate paths and performance. Document configuration for audits and future maintenance.

Frequently asked questions

• Q: What is the Lenovo Flex System FC5022?
  A: It is a 24-port 16Gb Enterprise SAN Switch designed to power SAN fabrics within Lenovo Flex System environments, offering high performance, scale, and enterprise-grade availability for virtualized data centers.
• Q: How many Fibre Channel ports does it have?
  A: It provides 24 ports, each capable of 16Gb Fibre Channel bandwidth for dense SAN connectivity.
• Q: Does it support NPIV?
  A: Yes, NPIV (N_Port ID Virtualization) support is available to optimize VF or virtual machine storage connectivity within virtualized environments.
• Q: Is the FC5022 hot-swappable?
  A: Yes, the switch is designed with hot-swappable components, including fans and power options, to minimize downtime during maintenance or upgrades.
• Q: Is this switch suitable for private cloud deployments?
  A: Absolutely. Built for enterprise SAN reliability and scalability, it supports virtualization and private cloud storage architectures that demand predictable performance and streamlined management.
