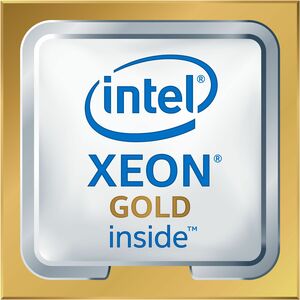

Lenovo Intel Xeon Gold (2nd Gen) 5220T 18-Core Processor Upgrade

Boost your Lenovo server performance with the Lenovo Intel Xeon Gold 5220T, a 2nd Gen Xeon Gold octa-core processor engineered for enterprise-grade reliability, scalability, and efficiency. This upgrade delivers an impressive 18-core, 36-thread powerhouse designed to handle virtualization, databases, analytics, and other demanding workloads with ease. Built on a 14 nm process and optimized for Socket P LGA-3647 systems, the 5220T combines high core counts, substantial cache, and advanced performance features to help your data center meet growing workloads while maintaining responsive, consistent performance. With a base frequency around 1.90 GHz and turbo speeds reaching up to 3.90 GHz, this processor is engineered to balance sustained multi-threaded throughput with burst performance for latency-sensitive tasks. If you’re upgrading a Lenovo server that supports 2nd Gen Xeon Gold processors, this upgrade is designed to fit your motherboard, maximize throughput, and extend the life of your infrastructure.

• 18 cores and 36 threads empower heavy multi-threaded workloads, including virtualization platforms, large-scale databases, and analytics pipelines. This level of parallelism enables more virtual machines per host, faster query processing, and smoother multitasking across business-critical applications.
• Max turbo frequency up to 3.90 GHz provides burst performance for single-threaded tasks or short latency-sensitive operations, so applications that occasionally require higher clock speeds can respond more quickly while remaining energy efficient during steady-state loads.
• Large 24.75 MB L3 cache reduces memory bottlenecks by keeping frequently accessed data closer to the cores, improving application responsiveness and overall system throughput during complex workloads and data-intensive tasks.
• 14 nm architecture balances performance and power efficiency, delivering robust, server-grade reliability and solid energy efficiency for dense compute environments. The processor’s 105 W TDP is optimized for consistent performance within enterprise cooling and power budgets.
• Socket P LGA-3647 compatibility ensures this upgrade is suitable for Lenovo servers designed for 2nd Gen Xeon Gold processors. The socket design supports a high-density motherboard footprint and supports enterprise features that administrators rely on for uptime and maintenance windows.

Technical Details of Lenovo Intel Xeon Gold 5220T

• Processor family: Intel Xeon Gold (2nd Gen)
• Model: 5220T
• Cores: 18
• Threads: 36
• Base frequency: 1.90 GHz
• Max turbo frequency: 3.90 GHz
• L3 cache: 24.75 MB
• Socket: LGA-3647 (Socket P)
• lithography: 14 nm
• TDP: 105 W
• 64-bit processing: Yes

How to install Lenovo Intel Xeon Gold 5220T

Upgrading to the Lenovo Xeon Gold 5220T requires careful handling and adherence to motherboard and BIOS requirements. Follow these steps to ensure a proper installation and optimal performance in your Lenovo server environment.

• Verify compatibility: Confirm that your server’s motherboard supports Socket P LGA-3647 and is listed as compatible with 2nd Gen Xeon Gold processors. Review Lenovo server documentation and BIOS support notes to ensure the 5220T is supported and that microcode updates are available.
• Power down and prepare: Shut down the system, unplug all power cords, and discharge static electricity using an anti-static wrist strap. Remove any external peripherals and place the chassis on a clean, static-free workspace.
• Remove existing cooling and CPU assembly: If upgrading from an older processor, carefully detach the heatsink/fan assembly and detach any cooling hardware according to the server’s maintenance procedures. You may need to remove the motherboard tray or access panel depending on your Lenovo model.
• Access the CPU socket: Open the CPU socket retention lever (or locking mechanism) and prepare the LGA-3647 socket for installation. Gently lift the current CPU if replacing, ensuring contact surfaces are free of debris.
• Install the Xeon Gold 5220T: Align the processor correctly with the socket using the alignment notches and pins. Place the CPU into the socket without using force, then close the retention lever to secure the processor in place. Avoid touching contact pads on the CPU.
• Apply thermal interface material and reassemble: Apply a pea-sized amount of high-quality thermal paste or use a pre-applied thermal interface if your cooler requires it. Mount the heatsink/fan assembly firmly, reconnect power and fan headers, and ensure clearance for all cables and components.
• BIOS/firmware preparation: Power on the server and enter the BIOS/UEFI setup. Check that the motherboard recognizes the new CPU. Update to the latest BIOS/microcode if prompted by Lenovo or the motherboard vendor, and configure Turbo and power settings in line with your workload requirements.
• Post-install validation: Boot into the operating system, install any required chipset and CPU drivers, and run a hardware diagnostic to verify correct CPU detection, thermal behavior, and stability. Return to production only after stress tests confirm sustained performance and thermal headroom.
• Operational considerations: Monitor temperatures under typical workloads, ensure adequate cooling, and plan firmware and firmware-based security policies to protect the upgraded hardware. Maintain proper documentation for future maintenance windows or further upgrades.

Frequently asked questions

• Is this processor compatible with Lenovo servers? This upgrade is designed for Lenovo servers that support Socket P LGA-3647 and 2nd Gen Xeon Gold processors. Always verify motherboard compatibility and BIOS support with Lenovo’s server documentation before purchasing.
• What is the core and thread count? The Lenovo Xeon Gold 5220T features 18 cores and 36 threads, delivering substantial multi-threaded performance for virtualization, databases, and compute-intensive workloads.
• What are the base and turbo frequencies? The processor operates at a base frequency of 1.90 GHz and can reach up to 3.90 GHz on turbo for burst performance when single-threaded tasks require higher clock speeds.
• What is the thermal design power (TDP)? The 5220T has a 105 W TDP, a balance between performance and heat generation for enterprise environments with adequate cooling.
• Does this processor support ECC memory? Xeon Gold processors are designed to work with ECC memory on compatible server boards. Always confirm motherboard support and BIOS options for enabling ECC and any server-specific reliability features.
• What kind of installations or upgrades require BIOS updates? BIOS updates are commonly required when introducing a new generation processor to ensure correct microcode support, power management, and feature enablement. Check Lenovo’s firmware bulletin and motherboard documentation prior to installation.
