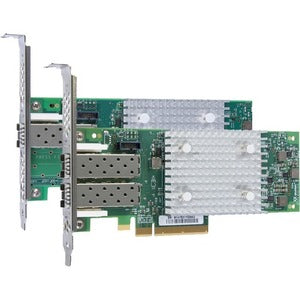

Lenovo QLogic 16Gb Enhanced Gen5 FC Dual-Port HBA

Discover the Lenovo QLogic 16Gb Enhanced Gen5 FC Dual-Port Host Bus Adaptor, a premium Fibre Channel solution engineered for modern data centers. This Gen5 HBA is purpose-built for Lenovo ThinkSystem and System x servers, delivering industry-leading native Fibre Channel performance with exceptionally low CPU usage thanks to full hardware offloads. Ideal for storage area networks, databases, and virtualization workloads, this adapter combines reliability, scalability, and ease of management to streamline your enterprise SAN, reduce latency, and accelerate I/O-intensive applications.

• Ultra-low CPU usage thanks to native hardware offloads that handle Fibre Channel processing, freeing server resources for applications and improving overall system performance.
• High-throughput 16Gb Fibre Channel performance with low latency, enabling faster access to storage arrays, flash systems, and scalable SAN infrastructure.
• Dual-port design provides built-in redundancy, multipathing capabilities, and increased aggregate bandwidth to meet growing storage demands.
• Broad operating system and hypervisor support, including Linux, Windows Server, and VMware ESXi, with validated interoperability for Lenovo ThinkSystem and System x servers.
• Validated Lenovo ecosystem integration with official drivers, firmware updates, and service support, ensuring smooth deployments, simpler IT management, and reliable upgrades.

Technical Details of Lenovo QLogic 16Gb Enhanced Gen5 FC Dual-Port HBA

• Fibre Channel interface: 16Gb Gen5 Fibre Channel
• Ports: Dual-port HBA for increased throughput and redundant paths
• Host interface: PCI Express add-in card (standard PCIe form factor) for broad compatibility with modern servers
• Compatibility: Designed for Lenovo ThinkSystem and System x servers, with validated integration and firmware support
• Performance features: Enhanced Gen5 architecture with native hardware offloads to minimize CPU impact and maximize FC throughput
• Operating system support: Linux, Windows Server, VMware ESXi, with vendor-provided drivers and firmware
• Management and updates: Lenovo-supported drivers, firmware, and management tooling to simplify deployment and maintenance

How to Install Lenovo QLogic 16Gb Enhanced Gen5 FC Dual-Port HBA

• Power down your server and disconnect power. Open the chassis access panel to reach available PCIe slots.
• Insert the Lenovo QLogic Gen5 FC HBA into an appropriate PCIe slot, ensuring a secure connection and fastening the bracket to the chassis.
• Connect Fibre Channel cables from the HBA’s ports to your storage array, FC switch, or target devices, following your SAN topology and zoning requirements.
• Power on the server and enter the BIOS/UEFI to confirm the slot is recognized. If needed, enable the device in the system configuration utility.
• Install the latest Lenovo-provided drivers and firmware for the HBA from the Lenovo Support portal, following on-screen prompts for OS-specific packages.
• Within the operating system, configure multipathing (MPIO) or ALUA if applicable, and verify the HBA is listed in the device manager (Windows) or lspci/lsscsi (Linux).
• Test connectivity to storage targets, confirm path availability and failover behavior, and perform any required zoning and mask checks in your SAN environment.
• Document the configuration and establish regular firmware and driver update plans to maintain performance and compatibility with future Lenovo updates.

Frequently asked questions

• What is the Lenovo QLogic 16Gb Enhanced Gen5 FC Dual-Port HBA?

  The adapter is a high-performance Fibre Channel HBA featuring Gen5 technology, dual 16Gb FC ports, and hardware offloads designed to deliver fast, low-latency connections to storage area networks in Lenovo ThinkSystem and System x servers.

• What does Gen5 mean for Fibre Channel HBAs?

  Gen5 indicates an advanced Fibre Channel generation with improved throughput, reduced CPU overhead due to hardware offloads, and enhanced efficiency for handling FC frames and traffic in enterprise SAN environments.

• How many ports does this HBA have and why is that important?

  The card has dual ports, providing multipath redundancy and increased aggregate bandwidth to storage targets—beneficial for mission-critical workloads and virtualized environments where uninterrupted access to storage is essential.

• Which systems are supported or validated?

  The HBA is designed and validated for Lenovo ThinkSystem and System x servers, with official Lenovo drivers and firmware to ensure stable operation within Lenovo’s ecosystem.

• Which operating systems are supported and how are drivers obtained?

  Supported OS families typically include Linux, Windows Server, and VMware ESXi. Drivers and firmware are obtained from the Lenovo Support portal, with installation instructions tailored to each operating system.

• Can I use this HBA with non-Lenovo hardware?

  While designed for Lenovo server platforms, the HBA may be compatible with other PCIe-enabled servers that support 16Gb Fibre Channel HBAs; however, Lenovo validation, drivers, and warranty coverage are focused on ThinkSystem and System x servers.

• What benefits should I expect in a virtualized environment?

  In virtualization scenarios, the Gen5 HBA’s hardware offloads reduce CPU overhead, improve I/O response times, and support robust multipathing configurations essential for VMware and other hypervisors.

• How do I keep the HBA up to date?

  Regularly check Lenovo’s support portal for driver and firmware updates. Applying updates helps maintain compatibility, performance, and reliability within evolving SAN environments.
