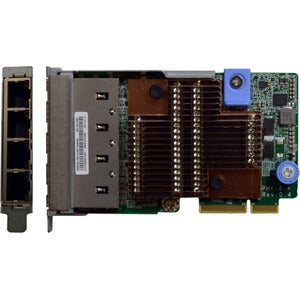

Lenovo ThinkSystem 10Gb 4-Port Base-T LOM

Upgrade your data center with a robust, scalable network interface that seamlessly integrates into Lenovo ThinkSystem servers. The Lenovo ThinkSystem 10Gb 4-Port Base-T LOM leverages the Intel Ethernet Connection X722, embedded within the Intel C624 "Lewisburg" PCH, to deliver high-speed, reliable connectivity across mission-critical workloads. Built for performance-conscious enterprises, this 4-port Base-T LAN-on-motherboard (LOM) solution provides the foundation for efficient cross-racket traffic, virtualization, and scalable expansion in dense server environments.

Designed for dense deployments and easy integration, this LOM delivers 4 ports of 10 Gigabit Ethernet connectivity over copper RJ-45 cabling. The copper-based bases-T design offers flexible cable infrastructure while maintaining low latency and consistent throughput, making it ideal for virtualization hosts, database servers, and high-performance computing clusters. By combining the X722 controller with Lenovo’s ThinkSystem platform, you gain a cohesive networking solution that simplifies cabling, reduces footprint, and accelerates deployment timelines without sacrificing performance.

With seamless compatibility across Lenovo ThinkSystem servers, the 10Gb 4-Port Base-T LOM connects to available 10 GbE and 1 GbE LAN-on-motherboard (LOM) adapter cards and onboard connectors. This design enables a unified, scalable networking fabric that can grow with your workload demands. The Intel X722 brings enterprise-grade features to the platform, including robust offloads for virtualization and high-speed data paths, which help reduce CPU overhead and improve overall system efficiency. The result is a dependable network foundation that supports modern workloads—from large-scale virtualized environments to demanding analytics pipelines.

In addition to raw speed, this LOM emphasizes reliability and manageability. Built for Lenovo ThinkSystem ecosystems, it integrates with Lenovo management tools and firmware pathways to simplify deployment and ongoing maintenance. You can monitor port activity, manage firmware updates, and ensure your NIC stays aligned with the latest performance enhancements and security features. The combination of Intel’s X722 capabilities with Lenovo’s server-grade design delivers a compelling balance of throughput, stability, and ease of administration for enterprise IT teams.

• High-performance 10 GbE connectivity with the Intel Ethernet Connection X722, integrated into the Lenovo ThinkSystem architecture. This combination provides strong throughput, low latency, and stable performance for virtualization-heavy workloads and data-intensive applications.
• Four-port Base-T copper design delivering scalable 10 GbE connectivity over RJ-45 cabling. This setup supports flexible network topology options and familiar copper cabling, enabling straightforward upgrades without changing fiber infrastructure.
• Seamless ThinkSystem integration with onboard connectors and compatible LOM adapters, creating a unified networking fabric that simplifies cabling, firmware management, and chassis-wide optimization.
• Advanced networking features including virtualization-ready offloads, improved packet handling, and driver support across common operating systems. These capabilities help reduce CPU load and improve guest performance in virtualized environments.
• Manageability and lifecycle support through Lenovo’s system management ecosystem, enabling firmware updates, remote monitoring, and proactive health checks to keep networks secure and up to date.

Technical Details of Lenovo ThinkSystem 10Gb 4-Port Base-T LOM

• Network controller: Intel Ethernet Connection X722 embedded within the Intel C624 “Lewisburg” PCH on Lenovo ThinkSystem platforms.
• Ports: 4 x 10 GbE Base-T copper (RJ-45) ports for flexible copper networking and simplified cabling.
• Form factor: LAN-on-motherboard (LOM) module designed for Lenovo ThinkSystem servers, with native integration to the system’s PCIe and management fabric.
• Throughput and latency: Optimized for low latency and high throughput across multi-tenant and virtualized workloads, with hardware offload features to reduce CPU overhead.
• Operating system support: Broad driver support across Windows Server, Linux distributions, and other enterprise OSes common in data centers.
• Management and updates: Compatible with Lenovo’s management tooling for firmware updates, health monitoring, and remote configuration within the ThinkSystem ecosystem.

How to Install Lenovo ThinkSystem 10Gb 4-Port Base-T LOM

• Power down the server, unplug all power sources, and discharge any static buildup before handling components.
• Open the server chassis following Lenovo’s hardware maintenance procedures and locate the LOM slot or connector designated for the ThinkSystem network interface module.
• Remove any existing LOM module if you are upgrading from a prior NIC and ensure the slot is clean and free of debris.
• Align the Lenovo ThinkSystem 10Gb 4-Port Base-T LOM with the connector and firmly seat it into the slot until it is securely engaged. Confirm the module is fully seated and any retention mechanisms are engaged.
• Reconnect power and boot the server. Enter the BIOS/UEFI if required to recognize the new LOM and enable the 10 GbE ports. Update the system firmware if prompted to ensure compatibility with the Intel X722 controller.
• Install the appropriate NIC drivers within the operating system. For Windows, use the official Intel driver package; for Linux, install the matching kernel or package provided by the distribution or Intel. Confirm that all four ports are detected and media status is active.
• Configure network settings as needed for your environment: assign IPs for management, set up VLANs, define teaming or bonded interfaces if required, and verify connectivity with test traffic across 10 GbE links.
• Document cabling topology and device configurations for future troubleshooting. Schedule firmware updates and periodic health checks through Lenovo’s management tools to maintain performance and security.

Frequently asked questions

• What is the Lenovo ThinkSystem 10Gb 4-Port Base-T LOM?
  It is a 4-port 10 Gigabit Ethernet LAN-on-motherboard solution designed for Lenovo ThinkSystem servers, utilizing the Intel Ethernet Connection X722 and embedded within the Intel C624 PCH to deliver high-speed copper-based networking.
• How many ports does it have and what type of cabling does it use?
  It features four 10 GbE Base-T ports that operate over copper RJ-45 cables, offering flexible copper networking options for data centers and enterprise networks.
• Is this LOM compatible with all ThinkSystem servers?
  Compatibility is designed for Lenovo ThinkSystem platforms that support the X722-based LOM within the C624-based ecosystem. Always verify motherboard and chassis compatibility with Lenovo’s official product documentation or your Lenovo account representative.
• What operating systems are supported?
  The Intel X722-based NIC generally supports a broad range of operating systems, including major Windows Server and Linux distributions. Ensure you install the correct drivers from Intel/Lenovo to maximize performance and reliability.
• How do I manage firmware updates?
  Firmware and driver updates can be managed through Lenovo’s management tools (such as XClarity) or via standard vendor channels for Intel NICs. Regular updates help maintain performance, security, and compatibility with new OS versions.
• Can I use this LOM for virtualization environments?
  Yes. The Intel X722 provides virtualization-friendly features and offloads that help reduce CPU overhead in virtualized workloads, improving VM density and network performance.
