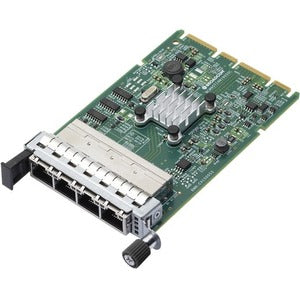

Lenovo ThinkSystem Broadcom 5719 1GbE RJ45 4-Port OCP Ethernet Adapter

Discover dependable, scalable networking for Lenovo ThinkSystem servers with the Lenovo ThinkSystem Broadcom 5719 1GbE RJ45 4-Port OCP Ethernet Adapter. Built around the Broadcom BCM5719 chipset, this four-port OCP NIC delivers solid 1 Gigabit Ethernet performance in a compact, modular form factor designed specifically for Lenovo’s ThinkSystem ecosystem. It is an ideal solution for data centers, virtualization hosts, edge deployments, and growing enterprise networks that demand reliable connectivity, straightforward deployment, and effective management within a unified server platform.

• Four 1GbE RJ45 ports offer dense, flexible network connectivity for servers, enabling you to consolidate network access, execute NIC teaming for higher availability, and support diverse workloads—from traditional file and print services to virtualization and storage traffic.
• OCP form factor tailored for Lenovo ThinkSystem servers provides a space-efficient upgrade path that simplifies installation, reduces cabling complexity, and ensures a clean, scalable data-center footprint.
• Broadcom BCM5719 chipset delivers dependable throughput with energy-efficient performance. This silicon backbone is designed to provide stable, low-latency networking suitable for steady data transfer, virtual machines, and multi-tenant environments.
• Enhanced networking features support virtualization and enterprise needs, including NIC teaming for failover and throughput aggregation, VLAN tagging for traffic isolation, and compatibility with standard OS networking stacks to streamline administration.
• Easy deployment and ongoing support with Lenovo driver packages. The adapter is designed to work with Windows and Linux operating systems, with firmware and driver updates available through Lenovo’s support channels, ensuring compatibility with bare-metal deployments (PXE) and hot-fix updates as your environment evolves.

Technical Details of Lenovo ThinkSystem Broadcom 5719 1GbE RJ45 4-Port OCP Ethernet Adapter

• Chipset: Broadcom BCM5719
• Ports: 4 x RJ-45 1GbE Ethernet ports
• Form Factor: Lenovo ThinkSystem OCP Ethernet Adapter
• Networking Speed: 1 Gbps per port (4 Gbps total theoretical bandwidth)
• Interface: PCIe-compatible connection to server motherboard (exact lane count may vary by system)
• Compatibility: Designed for Lenovo ThinkSystem servers; supports common enterprise OSes via standard drivers
• Features: Standard 1GbE capabilities, NIC teaming, VLAN support, and PXE boot options for bare-metal deployments

How to install Lenovo ThinkSystem Broadcom 5719 1GbE RJ45 4-Port OCP Ethernet Adapter

Installing the Lenovo ThinkSystem Broadcom 5719 1GbE RJ45 4-Port OCP Ethernet Adapter is a straightforward process that fits into the streamlined lifecycle of Lenovo ThinkSystem servers. Follow these steps to ensure proper seating, power, and configuration:

• Power down the server completely and disconnect all power sources. Ground yourself to prevent static discharge inside the chassis.
• Open the server chassis and locate the OCP (Open Compute Project) slot designated for network adapters. Remove any blanking plate or filler present in the slot.
• Align the adapter with the slot carefully, ensuring the connector fits snugly into the PCIe interface. Gently press until the card is firmly seated and remains secure in place. If the chassis provides a retention screw, secure the card with the appropriate screw.
• Close the chassis, reconnect power, and boot the server. Enter the operating system to verify detection of the new NIC. The card should appear as a recognized network device in the OS networking stack.
• Install the appropriate drivers and firmware from Lenovo support resources. After installation, configure the NIC(s) in the OS as needed—set up NIC teaming, VLANs, and any required boot options (PXE) for bare-metal deployment. Validate network connectivity by testing reachability, bandwidth, and VLAN isolation as per your environment’s standards.

Frequently asked questions

• What is the Lenovo ThinkSystem Broadcom 5719 1GbE RJ45 4-Port OCP Ethernet Adapter?
  A four-port 1GbE network adapter (RJ45) built in an OCP form factor for Lenovo ThinkSystem servers, powered by the Broadcom BCM5719 chipset to deliver reliable server connectivity in enterprise environments.
• What environments is this adapter suitable for?
  It's ideal for data centers, virtualization hosts, edge deployments, and org-wide LAN access where multiple 1GbE connections are required in a compact, scalable, server-optimized NIC.
• Which operating systems are supported?
  The card is designed to work with Windows and Linux operating systems, with drivers and firmware provided through Lenovo support channels. It also supports standard networking features compatible with common virtualization platforms.
• Does it support NIC teaming and VLANs?
  Yes. The Broadcom BCM5719-based adapter supports NIC teaming for increased throughput and high availability, as well as VLAN tagging to segment traffic across multiple networks.
• Is the card easy to upgrade in a ThinkSystem server?
  Yes. The OCP Ethernet Adapter form factor is designed for Lenovo ThinkSystem servers to enable modular upgrades without major chassis changes, helping you scale network capacity as your infrastructure grows.
• Can I boot from this NIC (PXE)?
  Yes, the adapter supports PXE boot, enabling bare-metal deployment workflows and operating system provisioning over the network.
