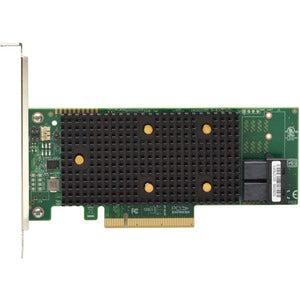

Lenovo ThinkSystem SR670 RAID 530-8i PCIe Adapter — 12Gb SAS/SATA Internal RAID Controller

The Lenovo ThinkSystem SR670 RAID 530-8i PCIe Adapter is a cost-efficient, entry-level internal RAID controller designed specifically for small to medium businesses that require dependable storage performance without a heavy price tag. This cacheless RAID adapter delivers essential data protection, straightforward management, and solid reliability, making it an excellent choice for SMB servers, file servers, backups, and virtualization workloads. Built to integrate seamlessly with ThinkSystem servers, the SR670 RAID 530-8i helps you optimize drive utilization, simplify storage administration, and scale confidently as your data grows. With support for common SAS and SATA drives, PCIe connectivity, and a robust suite of management features, it combines affordability with enterprise-ready storage capabilities for everyday business use.

• Cost-effective entry‑level RAID solution: Designed for small and growing businesses, the SR670 RAID 530-8i offers an affordable path to protected storage. Its cacheless architecture keeps implementation simple while delivering reliable redundancy, making it ideal for SMBs migrating from SATA-only setups or expanding existing SAS/SATA backplanes without a hefty upfront investment.
• Flexible RAID levels for diverse workloads: This adapter supports RAID 0, 1, 5, 10, and 50, enabling you to tailor your configuration to performance, capacity, and data protection needs. You can optimize for throughput in streaming or virtualization workloads while preserving data integrity for critical databases and file shares. The ability to mix and match levels across logical drives gives you granular control over storage strategy.
• Dense, high‑bandwidth SAS/SATA connectivity: With eight internal ports connected to a drive backplane or enclosure, the SR670 RAID 530-8i provides scalable density in compact server chassis. The 12 Gb/s SAS/SATA interface ensures fast data transfer between hosts and disk arrays, improving overall I/O throughput for transactional databases, backups, and virtual machines.
• Robust reliability and management features: The controller includes a range of Reliability, Availability, and Serviceability (RAS) features and management capabilities that help administrators monitor drive health, predict failures, and streamline firmware updates. Clear health indicators, logging, and easy configuration contribute to higher uptime and simpler operations in busy IT environments.
• Seamless Lenovo ThinkSystem compatibility and deployment: Engineered to work with Lenovo ThinkSystem servers, including the SR670 line, this PCIe adapter integrates smoothly with existing backplanes and storage architectures. It’s a practical option for organizations seeking a plug‑and‑play upgrade path that minimizes configuration friction while maximizing storage reliability and performance in Lenovo ecosystems.

Technical Details of Lenovo ThinkSystem SR670 RAID 530-8i PCIe Adapter

• Product type: Internal PCIe RAID adapter for SAS/SATA storage
• Interface: PCIe-based controller designed for server motherboards and ThinkSystem systems
• Ports: 8 internal SAS/SATA channels for connection to drive backplanes or enclosures
• Storage support: 12 Gb/s SAS/SATA interface enabling high-bandwidth data transfer
• RAID support: RAID levels 0, 1, 5, 10, and 50 for versatile data protection and performance tuning
• Cache: Cacheless architecture to simplify data integrity considerations in certain configurations
• Form factor: Internal PCIe RAID controller compatible with Lenovo ThinkSystem servers
• Management features: Built-in health monitoring, configuration tooling, and firmware update support
• Target workloads: Entry‑level to mid‑range enterprise storage, suitable for SMB backups, databases, and virtualization

How to install Lenovo ThinkSystem SR670 RAID 530-8i PCIe Adapter

Installing the SR670 RAID 530-8i is a straightforward process designed for IT staff and system administrators. By following these steps, you’ll establish a stable storage controller configuration that supports reliable data protection and scalable performance:

• Power down the server and disconnect all cables. Ground yourself to prevent static discharge and remove the chassis cover to access the PCIe slots.
• Identify an appropriate PCIe slot. The SR670 530-8i is an internal PCIe adapter; select a slot with sufficient bandwidth and clearance for your server chassis. In Lenovo ThinkSystem systems, a PCIe 3.0×8 (or higher) slot is commonly recommended to maximize performance, though exact requirements may vary by model.
• Insert the RAID controller into the PCIe slot. Ensure it seats firmly and is secured with any required screws or brackets according to the chassis design.
• Connect the 8 internal SAS/SATA cables. Attach cables from your backplane or directly to drives as appropriate for your configuration, routing cables neatly to preserve airflow and reduce cable strain.
• Power on the server and enter the system BIOS or RAID configuration utility during startup. The controller should appear as a new device. Configure your desired RAID levels and create logical drives or pools according to your storage plan.
• Install drivers or management software if needed. Depending on your operating system, you may need Lenovo-provided drivers or management utilities to optimize performance, monitor drive health, and enable firmware updates.
• Initialize and format the logical drives within the operating system. Verify the array status via the RAID BIOS/utility and confirm all drives are online, healthy, and correctly assigned to the appropriate logical drives or volumes.
• Set up monitoring and alerts. Enable health notifications for drive failures, rebuild events, temperature thresholds, and other critical conditions to minimize downtime and streamline incident response.
• Plan ongoing maintenance. Regularly review firmware versions, run health checks on disks, and schedule firmware updates for the controller and backplanes to stay aligned with drive compatibility and security advisories.

Frequently asked questions

• What is the Lenovo ThinkSystem SR670 RAID 530-8i PCIe Adapter best for? It is an entry-level, cost-efficient internal RAID controller designed for small to mid-sized businesses needing protected storage, straightforward management, and reliable performance within Lenovo ThinkSystem environments.
• Which RAID levels are supported? The controller supports RAID 0, 1, 5, 10, and 50, giving you options for both performance optimization and redundancy depending on your workload and capacity requirements.
• How many drives can be connected? The adapter provides eight internal SAS/SATA channels, allowing connection to up to eight drives or backplane connections, enabling compact, dense storage configurations.
• Is the controller cacheless? Yes, the SR670 RAID 530-8i uses a cacheless design. This can simplify certain data integrity considerations and reduce cache-related complexities in some environments, though parity-based RAID configurations still provide protection against drive failures.
• Do I need special software to manage it? Depending on your OS and environment, you may need drivers or management utilities provided by Lenovo to optimize performance, monitor health, and streamline firmware updates. Many deployments work with standard OS disk utilities and Lenovo management tools for ongoing maintenance.
• Is it compatible with all Lenovo ThinkSystem servers? The SR670 RAID 530-8i is designed to integrate with ThinkSystem systems, particularly those in the SR670 family or other Lenovo server platforms that support PCIe RAID controllers. Always verify slot compatibility and backplane support for your exact server model before purchase.
• Can this controller improve my virtualization performance? Yes, by providing dedicated RAID protection and organized drive pools, the SR670 RAID 530-8i can contribute to more predictable I/O performance in virtualized workloads, especially when paired with properly balanced drive configurations and firmware updates.
