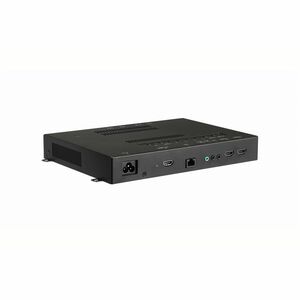

LG Electronics USA Multi-Input Interface

Experience seamless connectivity and centralized control with LG Electronics USA’s Multi-Input Interface—a compact hub that unites HDMI In, DisplayPort In, DVI-D In, RS-232C In, and RJ-45 (LAN) in a single, professionally engineered module. Designed for LG displays and enterprise AV environments, this versatile interface simplifies cabling, enhances management, and enables quick switching between diverse sources. Whether you’re outfitting a conference room, classroom, corporate lobby, or digital signage installation, this multi-input solution delivers reliable performance, flexible integration, and streamlined operation for demanding professional settings.

• All-in-one input hub for LG displays — consolidates multiple signal paths into a single, easy-to-manage interface, reducing clutter and simplifying installation in any space where LG displays are deployed.
• Flexible source support — includes HDMI In, DisplayPort In, and DVI-D In for a wide range of devices and sources, enabling high-quality video with compatible audio where supported and ensuring smooth transitions between inputs.
• Integrated control capabilities — RS-232C In provides robust control and automation options, enabling professional AV systems to switch inputs, monitor status, or execute commands from centralized control software.
• Network management and remote access — RJ-45 (LAN) connectivity enables remote management, configuration, diagnostics, and firmware updates, easing deployment across multiple displays and venues.
• Compact, installation-friendly design — engineered for tight racks or monitor-side mounting, this compact module minimizes space requirements while delivering dependable performance in busy environments, reducing time-to-deploy and maintenance needs.

Technical Details of LG Electronics USA Multi-Input Interface

• Inputs: HDMI In, DisplayPort In, DVI-D In, RS-232C In, RJ-45 (LAN)
• Designed for professional AV setups and LG displays, providing centralized connectivity for diverse source devices
• Compact module format optimized for rack integration or monitor-mider mounting near the display
• Control options include RS-232C command interface for traditional AV control systems and LAN-based remote management for modern networked deployments
• Reliable operation in commercial environments with robust connectors and standard interface protocols to support long-term usage

How to install LG Electronics USA Multi-Input Interface

1) Plan placement and power considerations: choose a location near the display or within an AV rack where all input sources can be conveniently connected and where power and network access are readily available. Ensure proper ventilation to maintain performance in warm environments.

2) Prepare sources and cables: gather your HDMI, DisplayPort, and DVI-D cables, a suitable RS-232C control cable if your system uses legacy control, and an RJ-45 Ethernet cable for network management. Use shielded cables where possible to minimize interference in busy AV environments.

3) Connect inputs: attach your HDMI In, DisplayPort In, and DVI-D In sources to the corresponding ports on the Multi-Input Interface. Route the outputs toward the LG display’s input panel or your downstream switching gear as needed. If you plan to use network features, connect a LAN cable to the RJ-45 port.

4) Establish control pathways: if you are using RS-232C for direct control, connect the RS-232C In port to your compatible controller or theater system. For network-based control, ensure the LAN connection is active and configure the interface according to your control system’s requirements.

5) Power up and configure: supply power to the interface and verify that the display recognizes the input sources. Use the on-display menu or your control software to map inputs, establish preferred default sources, and calibrate any timing or EDID preferences as needed. Confirm that switching between inputs is fast and reliable across sessions.

6) test and document: run a series of source switches, verify image and audio behavior where applicable, and document device addresses, control commands, and any firmware update steps for ongoing maintenance. This helps ensure consistent performance across rooms and deployments.

Frequently asked questions

• Q: What is the LG Electronics USA Multi-Input Interface?

  A: It is a compact, multi-input hub that unifies HDMI In, DisplayPort In, DVI-D In, RS-232C In, and RJ-45 LAN into a single module designed for LG displays and professional AV installations. It simplifies source management and enables centralized control across diverse devices.

• Q: Which devices are supported by the HDMI, DP, and DVI-D inputs?

  A: The inputs support a wide range of consumer and professional source devices that provide HDMI, DisplayPort, or DVI-D outputs. Compatibility may vary by display model and EDID settings, so it’s recommended to verify with your LG display’s specifications and enable appropriate input timing.

• Q: How can I control sources and switch inputs?

  A: Control can be achieved through RS-232C commands with compatible control systems or via LAN-based management for remote configuration and monitoring. This enables seamless integration into corporate AV ecosystems and controlled environments.

• Q: Is this interface suitable for digital signage installations?

  A: Yes. Its flexible input options and network management capabilities make it suitable for digital signage deployments where multiple sources require reliable switching and centralized control near LG displays.

• Q: What are the installation considerations?

  A: Focus on compact mounting space, clean cable routing, and proper ventilation. Ensure network access for remote management and confirm compatibility with your LG display model. Plan for future firmware updates to keep the interface current.
