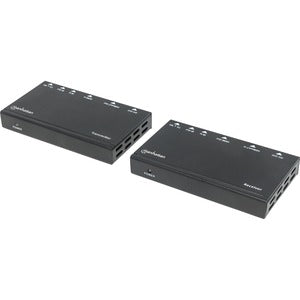

Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit

ManhattanSKU: 5062859

Price:
Sale price$182.05

Description

Experience professional-grade HDMI distribution with the Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit. Built for reliability in classrooms, conference rooms, retail environments, and home theaters, this kit leverages HDBaseT technology to extend high-quality HDMI signals over a single Ethernet cable. It delivers 4K at 30 Hz up to 40 meters (130 feet) and 1080p up to 70 meters (230 feet), while carrying multi-channel audio, Ethernet, and control signals with ease. The result is a clean, scalable solution that minimizes cabling clutter and simplifies long-distance AV deployment.

Designed to meet the needs of demanding AV installations, the Manhattan extender supports Power over Cable (PoC), allowing power to travel with the signal via the CATx cable where PoE capabilities exist, reducing the need for multiple power adapters. With IR and RS232 control pass-through, you can manage sources and displays from a distance or integrate the system into broader automation and control ecosystems. The kit emphasizes robust EDID management and wide compatibility across HDMI sources and displays, ensuring reliable startup, synchronization, and consistent image quality even in challenging environments.

  • 4K HDR-ready extension up to 40 m (130 ft): Transmits 4K at 30 Hz with solid color fidelity and smooth motion from the source to the display over a single Ethernet cable, preserving clarity and detail.
  • 1080p extension up to 70 m (230 ft): Flexible long-distance support for Full HD content, ideal for larger rooms, multi-seat setups, and installations where distance is a premium.
  • Power over Cable (PoC) and streamlined wiring: Send power alongside data over the CATx link when compatible, reducing wall clutter and minimizing the number of wall sockets and power adapters required.
  • IR and RS232 control pass-through: Preserve remote control capabilities and integrate with automation systems, enabling centralized control of displays, players, and other AV gear.
  • HDBaseT compatibility and plug-and-play setup: Designed for quick installations with auto EDID management and broad compatibility across HDMI sources and displays, delivering a reliable, user-friendly experience.

Technical Details of Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit

  • Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

how to install Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit

Planning a clean, reliable installation starts with understanding how the Manhattan extender fits into your AV workflow. This setup is ideal for scenarios where you want a single-cable solution that preserves high video quality while enabling remote control and centralized power management. By following these steps, you’ll maximize performance, minimize troubleshooting, and ensure a seamless user experience for your audience or household needs.

  • Power down all devices before connecting cables to prevent any signal handshake issues or potential equipment harm. This also helps EDID negotiation initialize properly once power is restored.
  • Connect the HDMI source (such as a Blu-ray player, computer, or media player) to the transmitter’s HDMI input using a high-quality HDMI cable that supports 4K at 30 Hz with the color depth you require.
  • Link the receiver to the display (TV, monitor, or projector) by connecting the receiver’s HDMI output to the display’s HDMI input with another reliable HDMI cable. Ensure the display is set to the correct input to receive the signal.
  • Run a single Cat6/Cat6a Ethernet cable between the transmitter and receiver. Use a shielded category cable to minimize interference and preserve signal integrity, especially in environments with multiple electrical devices or wireless equipment.
  • Power the transmitter and receiver. If your environment supports Power over Cable (PoC) or PoE, you may rely on a power source on one end to feed both units through the CATx link. If PoC isn’t available or supported, connect the included power adapters to each unit as directed by the user manual.
  • Configure IR and RS232 control if you plan to manage devices remotely or integrate with a control system. Place the IR receiver or emitter in the recommended line-of-sight path for the remote and connect RS232 cables to the appropriate ports on your automation hub or device.
  • Test the setup. Power on your source and display, switch to the correct input, and verify that 4K video (or 1080p, depending on your content) appears clearly with synchronized audio. If issues arise, re-check cable quality, EDID settings, and ensure the correct HDBaseT mode is active on both ends.

Frequently asked questions

  • What resolutions does the Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit support? It supports 4K at 30 Hz over distances up to 40 meters (130 feet) and 1080p up to 70 meters (230 feet). Resolution performance can vary with cable quality, source capabilities, and display compatibility, but the kit is designed to preserve image fidelity across supported modes via HDBaseT.
  • How far can I extend a 4K signal? Up to 40 meters (about 130 feet) over a single Ethernet CATx cable when transmitting 4K at 30 Hz. Distances may vary based on cabling, shielding, and environmental factors such as interference or conduit routing.
  • Is Power over Cable supported? Yes. The kit offers PoC functionality, enabling power to be delivered over the CATx link when used with compatible PoE infrastructure, which reduces the need for separate power bricks and simplifies installation.
  • Do I get IR or RS232 control? Yes. The extender provides IR pass-through for remote control and RS232 connectivity for integration with automation or control systems, maintaining centralized or remote operation capabilities.
  • What cables should I use for the best performance? Use a high-quality Cat6 or Cat6a Ethernet cable, ideally shielded, to maximize signal integrity for 4K content and longer runs, and to minimize interference from other devices and networks.
  • Is this kit suitable for professional installations? Absolutely. It’s designed for commercial AV deployments, offering dependable long-distance HDMI distribution, simple installation, and broad compatibility with a range of HDMI sources and displays.
