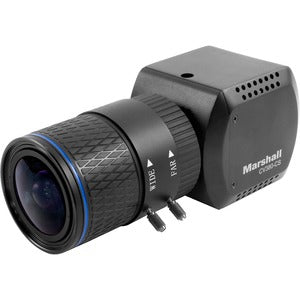

Marshall CV380-CS 8.5MP 4K Surveillance Camera - Color

The Marshall CV380-CS is conceived for professional security environments that demand ultra-high-resolution imaging, dependable performance, and flexible integration. Featuring an 8.5 Megapixel 1/2.5" sensor with 4:2:2 color sampling, this camera delivers true 4K quality that brings out fine details—critical for facial recognition, license plate reading, and scene analysis. The CS/C-mount design accommodates a wide range of lenses, from compact fixed options to advanced varifocal optics, allowing you to tailor the field of view to your installation. With 6G-SDI (single BNC) and HDMI 1.4 outputs, the CV380-CS seamlessly fits into modern surveillance workflows, whether you’re connecting to professional monitors, digital video recorders, or monitoring walls in control rooms. This camera is designed for environments that require crisp color fidelity and dependable operation across diverse lighting conditions, enabling security teams to review evidence and monitor activity with confidence. From corporate campuses to city-wide deployments, the CV380-CS provides the high-resolution, flexible, and durable solution needed to elevate your surveillance results.

• Stunning image quality with 8.5 MP resolution: The 1/2.5" sensor captures intricate textures and precise color detail in both bright and challenging lighting. With 4:2:2 color sampling, color reproduction remains accurate through complex scenes, helping operators identify important details. The camera supports True-4K at 4096 x 2160p up to 30fps, ensuring lifelike footage where critical features remain clear even during fast action. Ultra-HD at 3840 x 2160p up to 30fps provides a widely used format for modern displays, while maintaining the benefits of a high-resolution sensor for post-event analysis and evidence gathering.
• Dual-output versatility for robust monitoring: The CV380-CS provides a 6G-SDI (single BNC) connection alongside an HDMI 1.4 output. This combination supports simultaneous feeds to multiple devices—such as a high-performance recorder and a monitor wall—while maintaining full, high-quality video. 6G-SDI delivers low-latency, high-bandwidth transmission ideal for security installations, and HDMI 1.4 ensures straightforward local monitoring. The result is a flexible video pipeline that simplifies deployment in control rooms, enables redundant paths, and reduces integration complexity.
• Lens flexibility with CS/C-mount compatibility: The camera is designed to work with CS-mount and C-mount lenses, giving you a wide range of options for focal length, field of view, and depth of field. Whether you need a compact fixed-lens solution for tight interiors or a high-end varifocal for outdoor perimeters, the CV380-CS accommodates it. Varifocal lenses let you fine-tune framing on-site, while fixed lenses offer consistent performance with minimal maintenance. This adaptability helps you optimize image sharpness, distortion, and exposure control to suit your environment and security objectives.
• Comprehensive frame rates across multiple modes: The camera supports True 4K at up to 30fps (4096 x 2160p) and Ultra-HD at up to 30fps (3840 x 2160p), providing smooth motion and detailed imagery for fast-moving scenes and critical analysis. For standard HD workflows, the HD (Progressive) mode offers 1080p and 720p at up to 60fps, with a broad selection of frame rates (60/59.94/50/30/29.97/25/24/23.98). This versatility enables you to match video output to your storage, bandwidth, and playback needs while preserving high-quality results across different viewing contexts.
• Professional build and ease of deployment: The CV380-CS combines a compact, unobtrusive form with rugged, reliable construction suitable for demanding environments. Its color imaging delivers natural tones and clear subject representation, supporting effective decision-making in real time and strong evidence in post-processing. The CS/C-mount interface keeps installation straightforward and future-ready, allowing you to swap lenses as surveillance requirements evolve. With straightforward cabling and standard connectors, this camera is a solid cornerstone for scalable security ecosystems, helping to reduce installation time and total cost of ownership.

Technical Details of Marshall CV380-CS

• Sensor: 1/2.5" CMOS, 8.5 Megapixel, 4:2:2 color sampling
• Video resolutions: True 4K at 4096 x 2160p; Ultra-HD at 3840 x 2160p; HD at 1080p and 720p
• Frame rates: 4K up to 30fps; Ultra-HD up to 30fps; HD up to 60fps
• Video outputs: 6G-SDI (single BNC) and HDMI 1.4
• Lens mount: CS/C-mount (supports varifocal and fixed lenses)
• Color sampling: 4:2:2
• Color: Color imaging

How to install Marshall CV380-CS

• Mount the camera on a suitable surface using the CS/C-mount threads, ensuring a stable orientation for your intended field of view.
• Connect the 6G-SDI output to a compatible recorder or monitoring device via a single BNC cable; connect the HDMI 1.4 output to a monitor or display as needed for live viewing or setup.
• Attach a CS or C-mount lens appropriate for your environment—select a focal length that achieves the desired balance of coverage and detail; secure the lens and verify that it is properly focused.
• Power the camera and perform initial configuration: choose the desired video mode (True 4K, Ultra-HD, or HD) and set the corresponding frame rate. Adjust white balance, exposure, and other image settings to optimize scene quality for your lighting conditions.
• Test the installation in real operating conditions, verify signal integrity on both outputs, and secure all cables and mounting hardware to withstand environmental factors and tampering. Document the setup for future maintenance and camera swaps.

Frequently asked questions

• What resolutions does the CV380-CS support? It supports True 4K at 4096 x 2160p up to 30fps, Ultra-HD at 3840 x 2160p up to 30fps, and HD (1080p/720p) up to 60fps.
• What video outputs are available? The camera offers 6G-SDI (single BNC) and HDMI 1.4 outputs for flexible integration with monitors and recording devices.
• What lens formats can I use? The CV380-CS uses CS/C-mount lenses, enabling a choice of varifocal or fixed lenses to tailor field of view and depth of field.
• Is the camera color or monochrome? The CV380-CS provides color imaging with 4:2:2 color sampling.
• Is this camera suitable for professional surveillance setups? Yes. With high-resolution 8.5 MP capture, dual-output flexibility, and adaptable lens options, it is well-suited for security centers, campuses, retail, transportation hubs, and enterprise deployments.
