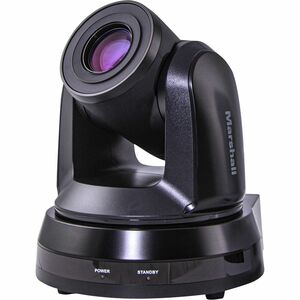

Marshall CV620-BI 2MP Full HD Network Camera — 20x Optical Zoom, IP/3G-SDI/HDMI Outputs

Designed for professional surveillance, broadcast monitoring, and demanding security environments, the Marshall CV620-BI delivers crisp Full HD 1080p video at up to 60 frames per second. Featuring an impressive 20x optical zoom, flexible multi-output capabilities, and remotely adjustable settings over IP, this camera is engineered to capture distant subjects with exceptional color accuracy and detail. Its compact black housing makes it suitable for discreet installations in corporate campuses, educational facilities, live event venues, houses of worship, and enterprise security setups. The CV620-BI combines robust image quality with versatile connectivity, enabling seamless integration into modern surveillance and presentation systems while maintaining reliable performance in challenging lighting conditions.

• The camera delivers high-quality imaging with 2 megapixel resolution and Full HD 1920x1080p at 60fps, ensuring smooth, detailed video across fast-moving scenes and wide viewing angles.
• Flexibly connects to multiple display and recording channels through simultaneous IP streaming, 3G-SDI, and HDMI outputs, allowing you to route feeds to network video recorders, control rooms, and live event displays without compromise.
• A remarkable 20x optical zoom provides close-up detail from long distances, complemented by precise remote Pan/Tilt control for accurate framing and subject tracking in large venues or outdoor campuses.
• Remote adjustment and color science are enhanced through IP control, including Iris, Zoom, Pan/Tilt, White Balance, Exposure, and Pedestal, enabling on-site or centralized technicians to precisely calibrate performance across multiple cameras.
• Dark-black, professional-grade housing supports secure, unobtrusive installation in corporate or broadcast environments, with flexible mounting options suitable for wall, ceiling, or tripod deployment depending on your space.

Technical Details of Marshall CV620-BI

• Model: Marshall CV620-BI
• Image Sensor: 2 Megapixel (HD) capabilities
• Maximum Resolution and Frame Rate: 1920x1080 at 60fps
• Lens: 20x optical zoom for long-range capture
• Video Outputs: Simultaneous IP streaming, 3G-SDI, and HDMI
• Remote Control: IP-based adjustments including Iris, Zoom, Pan/Tilt, White Balance, Exposure, and Pedestal
• Color Finish: Black housing
• Mounting Options: Wall or ceiling installation; suitable for diverse environments
• Connectivity: Network-enabled for remote management and integration with existing security or broadcast systems

How to install Marshall CV620-BI

• Plan your installation location to maximize the 20x zoom range and ensure stable mounting with secure hardware. Consider line-of-sight and lighting conditions for optimal performance.
• Provide power and network access. If your setup supports PoE, connect the camera to a PoE-enabled switch to simplify installation and reduce cabling.
• Mount the camera securely on a wall or ceiling bracket according to your venue’s layout. Verify the orientation and balance to prevent vibration or drift during operation.
• Connect the camera to your control room or display system via its IP, 3G-SDI, and HDMI outputs. This enables simultaneous streaming to the network, SDI-enabled monitors, and HDMI displays.
• Power up the camera and access the web-based management interface. Configure IP settings (static or DHCP), subnet, and gateway to ensure stable network visibility.
• Calibrate imaging settings remotely: adjust Iris, White Balance, Exposure, and Pedestal to achieve accurate color and brightness. Use Pan/Tilt controls to frame your subject and save presets for repeatable scenes.
• Test the HDMI, SDI, and IP streams on connected devices. Verify synchronization across outputs and optimize autofocus/iris for consistent performance under changing lighting.
• Document the final configuration, including network addresses and any preset positions, so operators can reproduce the setup quickly in the future.

Frequently asked questions

• Q: What is the video resolution and frame rate of the Marshall CV620-BI?
  A: The camera supports 1920x1080 Full HD resolution at up to 60 frames per second for smooth, detailed video.
• Q: Which outputs are available on the CV620-BI?
  A: The camera provides simultaneous IP streaming, 3G-SDI, and HDMI outputs, enabling flexible routing to networks, broadcast displays, and recording devices.
• Q: Can I control this camera remotely?
  A: Yes. The CV620-BI offers remote IP-based control for Iris, Zoom, Pan/Tilt, White Balance, Exposure, and Pedestal, allowing centralized or on-site fine-tuning from a computer or control room.
• Q: Is the camera suitable for outdoor installation?
  A: The product is designed for professional indoor use. Outdoor deployments should use appropriate weatherproof enclosures or housings to protect the camera from environmental conditions.
• Q: Is there any on-camera storage or local recording?
  A: The information provided focuses on live streaming and multi-output capabilities. Local storage is not specified; for recording, use compatible networked devices or SDI/HDMI-capable recorders connected to the outputs.
• Q: Can I mount this camera on a tripod or pole?

A: Yes, the CV620-BI supports versatile mounting options suitable for wall, ceiling, or stand-mounted configurations depending on your installation needs.
