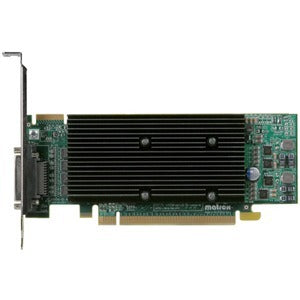

Matrox M-Series M9140 Graphics Card
The Matrox M-Series M9140 LP PCIe x16 quad graphics card is engineered to deliver pristine image quality across up to four independent displays, empowering busy workstations with expansive, reliable multi-monitor performance. Each output supports resolutions up to 1920x1200, whether you’re running digital or analog signals, ensuring sharp text, vivid imagery, and precise rendering across every screen. With 512 MB of dedicated memory, the M9140 LP balances robust performance with a compact form factor, making it an ideal choice for professional environments that demand extended desktops, enhanced productivity, and seamless workflow integration. This card is designed for demanding setups—from control rooms and trading floors to design studios and digital signage arrays—where consistency, reliability, and straightforward deployment matter most. In the field of professional multi-display solutions, Matrox M-Series has established a reputation for stability and advanced desktop management features that help teams visualize data, monitor operations, and collaborate more effectively. If you’re looking to transform a single workstation into a four-monitor command center, the M9140 LP delivers the breadth of display real estate you need without sacrificing image integrity or system compatibility.
- Exceptional multi-display performance spanning up to four independent outputs, enabling expansive desktops for trading, control rooms, design workstations, and digital signage networks. Each output supports up to 1920x1200, delivering crisp text and detailed graphics across all screens for coordinated workflows and synchronized visuals. The M9140 LP’s quad-monitor capabilities are designed to reduce window clutter, increase context visibility, and streamline complex data analysis, enabling professionals to monitor multiple data streams, dashboards, and application panes with ease.
- Versatile output options with both digital and analog connectivity, allowing seamless integration with a wide range of displays and legacy equipment. This flexibility makes it simple to deploy in mixed environments or retrofit existing setups without requiring new displays or extensive reconfiguration. The ability to mix input types per output supports diverse project requirements, from high-fidelity graphics to essential business dashboards, while preserving color accuracy and uniform luminance across all connected monitors.
- Low-profile (LP) form factor engineered for compact workstations and small form-factor chassis, providing an expansion path for systems with limited space. The M9140 LP is designed to fit in tight deployments, yet it does not compromise performance or feature set. Its efficient cooling and power characteristics are optimized to maintain stable operation in dense workstation environments, making it a practical upgrade for offices, studios, and labs that require multi-monitor clarity without bulk.
- Advanced desktop management features that streamline setup, management, and maintenance across fleets of PCs. Matrox’s software suite supports precise display alignment, bezel compensation, and consistent color across all outputs, helping teams create unified multi-display experiences. Whether you’re deploying a multi-monitor productivity station, a commercial display wall, or a training lab station, these management capabilities simplify configuration, monitoring, and ongoing support while preserving a scalable, future-ready infrastructure.
- Reliable performance with proven Matrox engineering designed for professional workflows. The M9140 leverages a dedicated memory pool and optimized data paths to deliver stable, long-term operation under demanding workloads. This stability is crucial for mission-critical environments where downtime is costly, and it complements the capability to run multiple applications side by side across four monitors. For teams that rely on continuous monitoring, simultaneous data visualization, and uninterrupted access to several tools, the M9140 LP offers a dependable, high-clarity visual platform.
Technical Details of Matrox M-Series M9140 Graphics Card
- Memory: 512 MB dedicated
- Display outputs: 4 independent outputs (quad display)
- Output resolution: up to 1920x1200 per output (digital or analog)
- Interface: PCIe x16
- Form factor: Low-profile (LP) card for compact systems
- Technology: Matrox M-Series architecture with advanced desktop management features
How to install Matrox M9140 Graphics Card
- Power down your workstation, unplug all cables, and remove the computer case cover to access the PCIe expansion area.
- Identify an available PCIe x16 slot that can accommodate a low-profile card; if your chassis requires it, install the included low-profile bracket to ensure proper seating and ventilation.
- Gently insert the M9140 into the PCIe x16 slot, pressing evenly until it is securely seated and the bracket aligns with the rear I/O opening. Fasten the card with a screw to the chassis to prevent movement.
- Reconnect power if your system requires supplementary power for the motherboard or other components, reattach the case cover, and power on the workstation.
- Install the latest Matrox graphics drivers and management software from Matrox’s official site or your IT department’s repository. After installation, open the Matrox software to configure the display array, set bezel compensation, align color, and define the multi-monitor layout across all four outputs for the intended workflow.
Frequently asked questions
- What is the Matrox M-Series M9140 best used for? It is designed to power up to four displays from a single PCIe x16 card, delivering high-quality visuals across multiple screens. It’s ideal for control rooms, trading dashboards, multi-monitor design workstations, digital signage arrays, and any workflow that benefits from expanded screen real estate and synchronized output.
- Can I use both digital and analog outputs on the M9140? Yes. Each of the four outputs can be configured for digital or analog connections, offering flexible integration with a mix of display types to suit your environment.
- What resolution can I expect per monitor with the M9140? Each output supports up to 1920x1200 resolution, providing sharp text and crisp imagery across all connected displays for precise monitoring and content creation tasks.
- Is the M9140 compatible with low-profile chassis? Yes. The M9140 LP (low-profile) variant is specifically designed for compact systems, enabling multi-monitor configurations in space-constrained environments without sacrificing performance.
- How does Matrox help with desktop management across multiple displays? Matrox offers a comprehensive software suite that handles bezel compensation, display alignment, color consistency, and centralized management. This ensures a cohesive multi-monitor experience, reduces setup time, and simplifies ongoing maintenance for fleets of workstations.
