Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

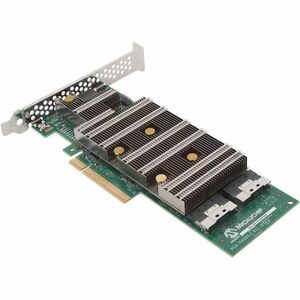

The Adaptec HBA Ultra 1200p-16i is engineered to deliver maximum performance in high-demand data center environments. Built on Microchip’s 5th generation SmartIOC 2200 I/O processor, this PCIe Gen 4 host bus adapter provides tri-mode connectivity that embraces SAS, SATA, and NVMe devices. Designed for server OEMs, storage systems, and enterprise deployments, it unlocks rapid data access, scalable storage expansion, and streamlined management across data centers, cloud environments, and mission-critical workloads.

• Tri-mode connectivity: Seamlessly connect SAS/SATA drives and NVMe storage through a single, versatile HBA. This tri-mode capability enables flexible storage architectures, reduces latency, and simplifies drive compatibility across mixed environments.
• PCIe Gen 4 performance: Built on PCIe Gen 4 technology to maximize bandwidth and throughput for demanding workloads such as databases, virtualization, and large-scale backups. Expect faster data transfer rates and improved I/O responsiveness in busy storage arrays.
• 16 internal ports for scalable storage: The Ultra 1200p-16i supports a high port count that enables scalable backplanes and dense server configurations, delivering expanded storage capacity without compromising performance or reliability.
• Advanced management and reliability: Powered by Microchip’s SmartIOC 2200, the adapter delivers robust offload capabilities, efficient error handling, and enterprise-grade reliability. Combined with Adaptec management tools, you gain comprehensive visibility, easy firmware updates, and proactive health monitoring.
• Enterprise-grade compatibility: Designed for data centers, enterprise IT, and OEM deployments, the Adaptec HBA integrates with a wide range of operating systems, virtualization platforms, and storage architectures, ensuring a smooth deployment path and long-term support.

Technical Details of Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

• Product family: Adaptec Ultra HBA line, 1200p-16i model, Microchip Technology
• Bus interface: PCIe Gen 4 host interface for high-bandwidth connectivity
• Tri-mode support: SAS, SATA, and NVMe connectivity capabilities for flexible drive ecosystems
• Internal port count: 16 internal ports (as indicated by the 16i designation), enabling dense storage backplanes
• Processor: 5th generation SmartIOC 2200 I/O processor for hardware-assisted performance and reliability
• Form factor: PCIe Add-In Card (HBA) suitable for server PCIe slots and backplane integration
• Target applications: Server OEM configurations, storage systems, data centers, enterprise storage pools
• Operating system and hypervisor support: Broad compatibility with major Linux distributions, Windows Server, VMware/ESXi, and other enterprise virtualization platforms
• Management and firmware: Includes Adaptec Storage Manager and related software for monitoring, configuration, and updates; supports firmware upgrades to maintain compatibility and performance goals
• Reliability features: Enterprise-grade reliability with support for hot-plug environments, data integrity features, and robust error recovery mechanisms

how to install Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

• Power down the host system and disconnect power sources before handling the server hardware.
• Open the chassis and locate an available PCIe slot that meets the adapter’s requirements (prefer a PCIe Gen 4 slot for maximum performance).
• Insert the Adaptec HBA into the PCIe slot firmly, ensuring a secure mechanical connection and proper seating.
• Route and connect SAS/SATA backplane cables or NVMe drive interfaces as required by your storage architecture, following your backplane’s manuals and cabling guidelines.
• Power on the system and enter the operating system to install the appropriate Adaptec drivers and management tools.
• Install Adaptec Storage Manager or the recommended management software from Microchip’s repository, then initialize and configure the HBA according to your storage topology (JBOD, RAID, or pass-through as supported).
• Update firmware if prompted by the management software to ensure compatibility with the latest features and bug fixes.
• Verify drive visibility, health status, and performance. Create storage pools or arrays as needed and monitor the HBA’s health through the management console.
• Document your configuration and establish a maintenance routine to monitor drive health, firmware levels, and firmware compatibility with your storage ecosystem.

Frequently asked questions

• Q: What storage interfaces does the Adaptec 24G HBA support? A: It provides tri-mode connectivity for SAS, SATA, and NVMe devices, enabling flexible deployment across mixed storage ecosystems.
• Q: What workloads is this HBA best suited for? A: It is ideal for data centers, server OEM deployments, dense storage systems, virtualization, large-scale backups, and enterprise databases where high throughput and low latency are critical.
• Q: Which PCIe slot is recommended? A: A PCIe Gen 4 slot is preferred to maximize bandwidth, though the card can operate in compatible PCIe environments with appropriate performance adjustments.
• Q: Is management software required? A: While not mandatory for basic operation, Adaptec Storage Manager and related tools greatly simplify monitoring, firmware updates, and configuration, delivering better reliability and visibility.
• Q: Which operating systems are supported? A: The HBA supports major Linux distributions, Windows Server, VMware/ESXi, and other enterprise platforms through vendor-provided drivers and management software.
• Q: How many drives can the HBA connect to? A: The 16 internal ports enable substantial storage expansion in backplane configurations, facilitating large arrays and scalable storage solutions.
• Q: Does the adapter support hot-swapping? A: Yes, designed for enterprise environments, it supports hot-plug operations in compatible server and backplane configurations.
• Q: Can it be used in custom server builds? A: Absolutely; it’s intended for server OEMs and data centers, offering flexible integration into various architectures and backplanes.
