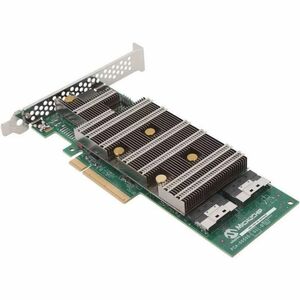

Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

The Adaptec HBA 1200-16i from Microchip delivers top-tier performance and versatile tri-mode connectivity, enabling seamless integration of SAS, SATA, and NVMe storage in data centers, enterprise servers, storage arrays, and OEM solutions. Built to empower server architectures that demand high throughput, low latency, and scalable expansion, this PCIe Gen 4 host bus adapter is designed to meet the most demanding workloads—from virtualization and databases to large-scale analytics and AI infrastructure. With robust firmware, enterprise-grade reliability, and streamlined management, the Adaptec 1200-16i optimizes storage connectivity while reducing total cost of ownership over time.

• Tri‑mode versatility with SAS, SATA, and NVMe support: Connect a wide range of drives and NVMe devices through a single high-performance adapter, enabling flexible storage configurations and future-ready upgrades without swapping hardware.
• PCIe Gen 4 performance and high-density design: A PCIe Gen 4 interface delivers excellent bandwidth for modern data centers, paired with a dense 16‑port configuration that maximizes port efficiency in space-constrained server environments.
• Enterprise-grade reliability and management: Engineered for 24/7 operation in mission-critical deployments, with advanced management features to monitor health, optimize throughput, and simplify firmware updates across large installations.
• Powered by 5th generation SmartIOC 2200 architecture: Microchip’s continued evolution of storage processing delivers improved performance, efficiency, and smarter I/O handling for complex workloads and mixed storage topologies.
• Ideal for data centers, OEM servers, and storage systems: Designed to fit professional enterprise workloads, scale-out architectures, and OEM deployments where robust storage connectivity is essential for uninterrupted service delivery.

Technical Details of Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

• Controller/Processor: 5th generation SmartIOC 2200 storage controller
• Interface: PCIe Gen 4 host bus adapter
• Tri-mode support: SAS, SATA, and NVMe devices
• Port count: 16 internal ports (16i)
• Form factor: PCIe add-in card suitable for 1U to 2U servers and storage servers
• Target applications: data centers, enterprise servers, OEM storage solutions, virtualization infrastructure
• Compatibility: supports a broad range of SAS/SATA/NVMe devices and JBOD/storage configurations

how to install Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

• Power down the host system and ground yourself to prevent static discharge before handling the card.
• Open the server chassis and locate a compatible PCIe Gen 4 slot (preferably a full‑length PCIe x16 slot for optimal bandwidth).
• Insert the Adaptec 1200-16i into the PCIe slot firmly until it is seated and fasten the bracket with a screw for secure mounting.
• Reconnect any SAS/SATA/NVMe cables according to your storage topology, ensuring proper orientation and secure connections to the backplane or drives.
• Power on the system and enter the BIOS/UEFI to confirm the adapter is detected; review any on-board settings related to slot configuration, boot order, and PCIe lane assignment if applicable.
• Install the latest Microchip Adaptec drivers and management software from the vendor’s official site or the provided media; apply firmware updates to the card if prompted and perform any required reboots.
• In your operating system, use the storage management tools to configure your storage fabric—set up RAID levels, JBOD, spares, or NVMe namespaces as required by your workload.
• Verify connectivity by running a basic I/O test on connected devices and monitor performance with the included management utilities to ensure the topology operates as intended.

Frequently asked questions

• Q: What workloads is the Adaptec 1200-16i best suited for? A: It is designed for enterprise storage, data centers, and server OEM environments that require flexible SAS/SATA/NVMe connectivity, high port density, and reliable performance for virtualization, databases, and large-scale analytics.
• Q: Does this adapter support NVMe devices alongside SAS and SATA? A: Yes. The adapter provides tri-mode functionality, enabling SAS, SATA, and NVMe connectivity within the same PCIe Gen 4 card to maximize storage options.
• Q: Which systems are compatible with the Adaptec 1200-16i? A: It is designed for enterprise servers and storage systems; compatibility is typically determined by PCIe slot availability and supported drivers in the host operating system.
• Q: Do I need special software to manage the drives connected to this HBA? A: Management is facilitated by Microchip’s Adaptec management tools and the host OS drivers; firmware updates and health monitoring are supported through the vendor’s software stack.
• Q: Can I mix SAS, SATA, and NVMe devices on a single adapter? A: Yes, tri-mode support allows mixed device types, enabling flexible storage configurations without adding separate controllers.
