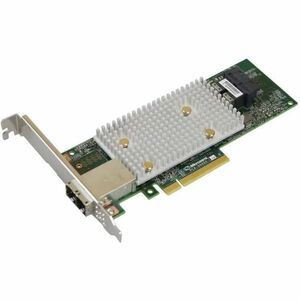

Adaptec SmartHBA 2100-8i8e: 12Gbps HBA with Hardware RAID for Dense, Reliable Storage

The Microchip Adaptec SmartHBA 2100-8i8e is a high-performance, enterprise-class storage adapter designed to deliver blistering SAS/SATA throughput while simplifying management for dense server environments. This 12 Gbps Adaptec SmartHBA combines the best of both worlds: a robust host bus adapter (HBA) that provides direct, high-speed connectivity to internal drives, and a hardware RAID engine that offloads RAID processing from the host CPU. With eight internal and eight external SAS/SATA ports, the 2100-8i8e offers unparalleled flexibility for internal drive bays, external storage enclosures, and mixed storage topologies. Built in a compact MD2 low-profile form factor and centered on PCIe Gen 3, this card is engineered to maximize performance per watt, minimize latency, and scale storage capacity for servers, virtualization hosts, high-demand databases, and media-intensive workloads.

• The 2100-8i8e delivers 12 Gbps SAS/SATA data transfer on each port, unlocking fast, reliable access to both internal disks and external storage arrays. This speed translates to faster boot times, quicker backups, improved data ingestion, and snappy application responsiveness in virtualization, databases, and archival workflows. The design supports sustained throughput across mixed workloads, helping you meet service-level agreements and maintain smooth operation under peak demand. It’s particularly well-suited for workloads that require large sequential I/O, such as video editing, scientific computing, and big data analytics, where every millisecond of latency matters.
• As a true hybrid solution, the Adaptec SmartHBA 2100-8i8e merges the capabilities of a full-featured HBA with those of a hardware RAID adapter. This combination allows you to attach drives directly to the host with high-speed, low-latency connectivity while also benefiting from hardware-accelerated RAID management. Offloading RAID calculations to dedicated hardware reduces CPU overhead, improving overall system performance and freeing server resources for application workloads. Whether you’re configuring simple JBOD storage pools or protecting critical data with redundant RAID configurations, the 2100-8i8e provides robust, enterprise-grade data protection without compromising performance.
• Designed for dense server deployments, the MD2 low-profile form factor and PCIe Gen3 x8 interface enable deployment in 1U and 2U chassis without sacrificing headroom for other I/O cards. This compact footprint makes the 2100-8i8e ideal for data centers with space constraints, edge servers, or environments where maximizing rack density is essential. The Gen3 x8 interface also supports high-bandwidth workloads, ensuring ample lanes for multiple external connections and large internal drive groups. If your server platform relies on compact expansion cards, this Adaptec adapter fits neatly into existing configurations while delivering enterprise-grade storage performance.
• With eight internal and eight external SAS/SATA ports, the 2100-8i8e provides a scalable topology that supports complex storage architectures. Internal ports connect to hot-swappable drive bays or backplane assemblies, maximizing direct-attached storage (DAS) capabilities, while external ports enable connections to expansion enclosures and networked storage arrays. This hybrid port arrangement simplifies cable management and reduces latency by keeping external storage options close to the server, all while maintaining a clean, organized server chassis. It’s a ideal choice for mixed environments that require both internal performance and flexible external storage expansion.
• Beyond raw speed and capacity, the Adaptec SmartHBA 2100-8i8e emphasizes reliability, manageability, and data protection. The hardware RAID engine is designed to protect data integrity through robust redundancy, while firmware-level protections and enterprise-grade components contribute to uptime in mission-critical applications. Management and monitoring are streamlined through Adaptec software tools, which provide intuitive configuration wizards, health monitoring, alerting, and integration with standard server-management workflows. This combination of reliability and ease of management helps IT teams deploy, monitor, and maintain storage infrastructure with confidence, reducing mean time to repair and minimizing operational risk.

Technical Details of Microchip Adaptec SmartHBA 2100-8i8e Single

• Port configuration: 8 internal SAS/SATA ports plus 8 external SAS/SATA ports for flexible storage topology
• Interface and form factor: PCIe Gen3 x8 interface in MD2 low-profile form factor for dense server deployments
• Throughput: 12 Gbps SAS/SATA per port with efficient data paths to reduce CPU overhead
• RAID capabilities: Hardware RAID engine integrated with HBA functionality to provide hardware-managed RAID configurations and data protection
• Management and compatibility: Supports Adaptec storage management tools and is compatible with major operating systems and standard server management workflows

How to install Microchip Adaptec SmartHBA 2100-8i8e

Installing the Adaptec SmartHBA 2100-8i8e is straightforward in most modern servers. Begin by powering down the server and grounding yourself to prevent static discharge. Remove the chassis cover and locate an appropriate PCIe x8 or larger slot. Align the card with the slot and firmly press it into place until the retention screw engages. Secure the card with the screw and reconnect power and data cables for internal drives if you are attaching to backplanes or directly to drive bays. For external connections, route SAS/SATA cables to compatible expansion enclosures or external storage devices, ensuring clean cable management to maintain airflow. Power the system back on and enter the system BIOS or UEFI to confirm the card is detected. If you are using hardware RAID, enter the Adaptec RAID utility or management software to configure your arrays, capacity, and protection scheme. Install any necessary drivers or management software in the operating system, then format and mount the logical drives as required by your workloads. Finally, update the adapter firmware to the latest version to ensure optimal performance and reliability, and configure monitoring alerts to stay informed about health and throughput metrics.

Frequently asked questions

• Q: What is the Adaptec SmartHBA 2100-8i8e?
  A: It is a 12 Gbps SAS/SATA host bus adapter that blends high-speed internal and external connectivity with hardware RAID capabilities, delivered in an MD2 low-profile form factor and designed for dense server environments.
• Q: How many ports does it provide?
  A: The card features eight internal SAS/SATA ports and eight external SAS/SATA ports, enabling flexible topologies for internal storage bays and external enclosures.
• Q: Does it support hardware RAID?
  A: Yes. The 2100-8i8e includes a hardware-accelerated RAID engine that offloads RAID processing from the host CPU, helping to protect data and improve overall system performance.
• Q: What operating systems and management tools are supported?
  A: It is designed to work with major server operating systems and is managed through Adaptec storage management software. For exact OS compatibility and driver availability, consult the latest Adaptec support matrix.
• Q: What is the MD2 low-profile form factor?
  A: MD2 is a compact PCIe card form factor designed for dense servers. The Adaptec SmartHBA 2100-8i8e fits into MD2 slots commonly found in 1U and 2U servers, enabling high-density deployments without sacrificing expansion options.
