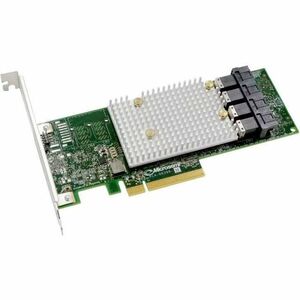

Microchip HBA 1100-16i Single
The Microchip HBA 1100-16i is a high-performance Adaptec host bus adapter designed to unlock maximum storage throughput in modern servers and data centers. Built with 16 internal SAS/SATA ports and a compact x8 PCIe Gen3 MD2 form factor, this HBA delivers enterprise-grade reliability, streamlined management, and scalable storage expansion for demanding workloads. Whether you’re building a high-availability database cluster, a performant virtualization host, or a robust media library, the HBA 1100-16i combines speed, efficiency, and proven technology to keep your data flowing with minimal latency.
- 16 internal SAS/SATA ports provide expansive connectivity for large drive suites and backplanes, enabling dense storage configurations and flexible JBOD or RAID-enabled deployments. With 12 Gbps SAS/SATA transfer capability, it’s engineered for concurrent workloads and steady streaming of data across multiple drives.
- PCIe Gen3 x8 interface in a low-profile MD2 form factor ensures broad compatibility with a wide range of server chassis and motherboard configurations. The compact design lets you maximize rack density without compromising performance or expansion capabilities.
- Microchip SmartIOC 2100 controller forms the backbone of the HBA, delivering reliable SAS/SATA I/O operations and efficient data handling. This powerhouse supports the Smart Storage stack, a unified software framework that emphasizes protection, performance, and easy management across deployments.
- Unified Smart Storage stack backed by an ecosystem trusted in over 30 million servers, offering robust firmware, predictable updates, and integrated health monitoring. This stack simplifies provisioning, firmware management, and proactive maintenance for consistent, enterprise-grade storage behavior.
- Enterprise-grade management and compatibility with industry-standard tools, drivers, and OS support. The HBA 1100-16i is designed to integrate seamlessly with common server operating systems and storage backplanes, delivering reliable performance in data-intensive environments.
Technical Details of Microchip HBA 1100-16i Single
- Ports: 16 internal SAS/SATA ports for extensive drive/backplane connections
- Throughput: 12 Gbps SAS/SATA per channel, enabling high-speed data transfer across connected drives
- Interface: PCIe Gen3, x8 lane
- Form factor: MD2 low-profile card, suitable for dense server chassis
- Controller: Microchip SmartIOC 2100 powering reliable SAS/SATA I/O
- Storage stack: Unified Smart Storage stack, widely deployed and trusted in enterprise environments
- Firmware and management: Enterprise-grade firmware with management tools compatible with common server ecosystems
how to install Microchip HBA 1100-16i
Installing the Microchip HBA 1100-16i is a straightforward process that can maximize your storage performance with minimal downtime. Follow these steps to ensure proper integration and optimal operation.
- Power down the server and unplug all power sources. Ground yourself to prevent static discharge, and remove the chassis cover to access the PCIe slots.
- Identify a suitable PCIe slot. The HBA 1100-16i requires an available x8 PCIe Gen3 slot. If possible, seat it in a slot with adequate airflow to keep temperatures in check under load.
- Insert the HBA into the PCIe slot and secure the card to the chassis with a retention screw. Ensure the card is firmly seated and the faceplate aligns with your server’s backplane.
- Connect your storage backplane or SAS/SATA cables to the 16 internal ports on the HBA. Route cables neatly to avoid interference with fans or other components, and verify all connections are snug.
- Power on the system and enter the server BIOS/UEFI. Confirm that the HBA is detected and check for any firmware updates from Microchip/Adaptec. Install or update drivers as needed within your operating system.
- Boot into the operating system and use the Adaptec Storage Manager or your preferred storage management tools to configure JBOD or RAID/Storage Pools as required. Monitor health, temperatures, and throughput to ensure stable performance.
Frequently asked questions
- What operating systems support the Microchip HBA 1100-16i? The HBA is designed for compatibility with major server operating systems and storage management ecosystems. Check the latest compatibility matrix from Microchip/Adaptec to confirm support for your specific OS version and virtualization platform.
- Can I use the HBA 1100-16i in JBOD mode? Yes. As an HBA, it is built to provide direct, flexible connectivity to multiple drives, commonly used in JBOD configurations. You can also configure storage pools and, where supported, RAID levels through management software.
- What kind of backplanes or enclosures work with this card? The 16 internal SAS/SATA ports are designed to connect to standard server backplanes and SAS/SATA backplanes commonly used in enterprise storage arrays. Ensure backplane compatibility with SAS, SATA, and your enclosure’s connector type.
- Do I need to install proprietary drivers? Most environments can rely on the Smart Storage stack and vendor-provided drivers. Always use the latest drivers and firmware from Microchip/Adaptec to maximize reliability and performance.
- Is the HBA suitable for high-density data centers? Absolutely. The 16-port internal design, combined with 12 Gbps throughput and the efficient Smart Storage stack, makes it a strong choice for dense servers, virtualization hosts, and data-intensive applications.
