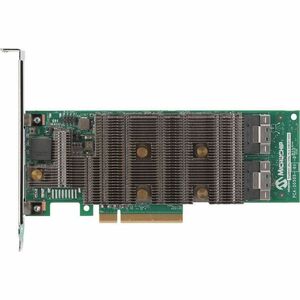

Microchip SmartRAID 3252-8i /e SAS Controller
The Microchip SmartRAID 3252-8i /e SAS Controller is engineered for maximum performance and unbeatable security in demanding data center environments. As part of the Adaptec SmartRAID 3200 family, this tri-mode RAID controller delivers versatile, secure, and fully featured storage performance for server OEMs, storage systems, enterprise deployments, and data centers. Built to handle intense workloads, it consolidates SAS, SATA, and NVMe devices under a single, robust controller, enabling streamlined scaling, faster rebuilds, and proactive protection for mission-critical data.
- Tri-mode versatility for SAS, SATA, and NVMe: Leverage a single controller to drive traditional SAS/SATA drives alongside high-speed NVMe media. This fusion enables flexible tiering, consolidation, and optimized I/O paths, so you can maximize capacity and performance without juggling multiple controllers.
- Advanced RAID capabilities for data protection: Supports a comprehensive set of RAID levels and features designed for reliability and uptime. With fast rebuilds, proactive error detection, and adaptive data protection, you gain resilient storage that minimizes downtime and protects against drive failures.
- Hardware-assisted security and data integrity: Built-in security technologies—including hardware-accelerated encryption and secure data paths—shield sensitive information at rest and in transit. The controller enforces strong access controls and safeguards against common threat vectors in the data center.
- Enterprise-grade management and monitoring: Centralized administration through Adaptec Storage Manager (ASM) and compatible enterprise management tools provide real-time health monitoring, firmware updates, predictive analytics, and streamlined provisioning across large server fleets.
- Reliability you can rely on for mission-critical workloads: Robust caching, error-correcting mechanisms, and power-loss protection contribute to consistent performance and data integrity under heavy load or unexpected power events.
Technical Details of Microchip SmartRAID 3252-8i /e SAS Controller
- Product family and role: Adaptec SmartRAID 3200 series PCIe RAID controller designed to manage SAS/SATA/NVMe storage with tri-mode capability for flexible server and storage deployments.
- Tri-mode support: Natively supports SAS, SATA, and NVMe devices, enabling diverse drive configurations within a single controller for optimized performance, capacity, and cost efficiency.
- RAID capabilities: Offers a broad set of RAID levels (including standard and advanced options) with features such as online capacity expansion, fast rebuilds, and predictive drive health monitoring to protect data and maintain throughput.
- Security and data protection: Hardware-assisted encryption and secure data paths help protect data at rest and during I/O operations, aligning with enterprise compliance requirements and industry best practices for data security.
- Management and software integration: Integrates with enterprise management suites such as Adaptec Storage Manager (ASM) for centralized control, firmware management, health monitoring, and robust diagnostics across multiple controllers.
- Performance and reliability features: Equipped with cache optimization, ECC protection, and power-loss protection to sustain peak throughput, reduce latency, and preserve data integrity in the event of power loss or other disruptions.
- Form factor and compatibility: PCIe-based RAID controller designed for server OEMs, data centers, and enterprise storage systems, compatible with a wide range of backplanes, JBODs, and storage arrays requiring robust RAID and tri-mode functionality.
How to install Microchip SmartRAID 3252-8i /e SAS Controller
Installing the Microchip SmartRAID 3252-8i /e SAS Controller is straightforward, but it benefits from careful preparation and adherence to best practices to maximize performance and reliability.
Preparation and safety: Before beginning, power down the server and unplug it from any power sources. Ground yourself to prevent static discharge. Have the server manual handy to identify the correct PCIe slot type and the recommended orientation for a full-height or low-profile card, depending on your chassis. Ensure you have the appropriate SAS/SATA cables and backplane or expansion enclosures ready for connection, and verify that your drives are compatible with tri-mode operation.
Install the card: Open the chassis and locate an available PCIe slot that meets the card’s needs. Remove the slot cover if required, align the card with the slot, and firmly press it into place. Secure the bracket with a screw to prevent movement. If your server supports multiple GPUs or PCIe devices, ensure there is adequate airflow and no electrical contention in adjacent slots.
Connect storage interfaces: Attach SAS/SATA cables from the controller to your server’s backplane or storage enclosures. For NVMe devices, follow your chassis guidelines for NVMe or M.2 connections or any required PCIe expansion if applicable. Ensure cables are properly seated and managed to maintain airflow and minimize interference.
Power on and verify: Power up the system and enter the server’s BIOS/UEFI to confirm the card is detected. If the card requires independent firmware updates, run the firmware update utility provided by Adaptec/Microchip as part of the initial setup.
Configure storage arrays: Boot into the Adaptec Storage Manager (ASM) or a compatible RAID configuration utility. Create RAID arrays, assign hot spares, and establish cache policies according to your workload requirements. Define boot drives if needed and verify that fast paths, tiering, or NVMe acceleration policies align with your performance goals.
Firmware and driver updates: Install the latest firmware for both the controller and any connected devices as recommended by the vendor. Update drivers in the operating system to ensure compatibility and optimal performance with your host platform (Windows, Linux, or other supported OSes).
Monitoring and maintenance: Enable health checks, SMART monitoring, and alerting within ASM or your preferred monitoring framework. Consider setting up automated alert rules for drive health, temperature, and cache performance to minimize downtime and proactively manage wear on NVMe and SAS devices.
Best practices for performance: To maximize throughput and reliability, configure appropriate RAID levels suited to your data protection needs, enable write caching with battery-backed cache if supported, and balance I/O across channels to prevent bottlenecks. Regularly review event logs and firmware release notes to apply enhancements that improve stability and performance.
Note: Depending on your environment, you may need to adjust BIOS settings for PCIe slot configuration, boot order, and AHCI vs. RAID modes. Always refer to your server’s documentation and the Adaptec/Microchip deployment guides for precise steps and compatibility notes related to the 3252-8i /e model.
Frequently asked questions
- What is the Tri-Mode capability of the 3252-8i /e? It supports SAS, SATA, and NVMe devices on a single controller, enabling diverse storage configurations and tiered performance within one card, simplifying hardware and maximizing versatility in data centers.
- Which RAID levels are supported? The controller supports a broad range of RAID configurations designed for reliability and performance, including common levels and additional enterprise options, with features like online capacity expansion and fast rebuilds to minimize downtime.
- How do I manage the controller? Management is streamlined through Adaptec Storage Manager (ASM) or compatible enterprise tools, offering centralized health monitoring, firmware updates, alerting, and diagnostics across multiple controllers in the same environment.
- Is hardware encryption available? Yes—hardware-assisted security features protect data at rest and during I/O, helping meet regulatory requirements and industry best practices for data protection in enterprise deployments.
- What platforms and drivers are supported? The controller is designed for server OEMs and enterprise servers and supports common operating systems used in data centers. Always install the latest drivers and firmware to ensure optimal compatibility and performance.
- What installation considerations should I plan for? Plan for proper airflow, adequate PCIe slots, correct backplane support for SAS/SATA/NVMe, and a clear upgrade path with firmware and driver updates. Ensure you follow the vendor’s installation guidelines for your specific chassis and node configuration.
- Can this controller improve NVMe performance in mixed environments? Yes, by consolidating NVMe devices with SAS/SATA backplanes under a single tri-mode controller, you can optimize data paths and leverage caching and intelligent tiering to boost overall throughput and latency profiles.
