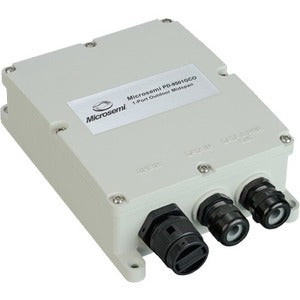

Microsemi 1 Port, 60W IEEE 802.3bt Outdoor PoE Midspan

Designed to power demanding outdoor deployments with reliability and efficiency, the Microsemi 1 Port, 60W IEEE 802.3bt Outdoor PoE Midspan is a rugged, weatherproof PoE injector that brings power and data over a single Ethernet cable to devices such as outdoor IP cameras, wireless access points, and edge sensors. This midspan is engineered for harsh environments, delivering robust performance in remote locations where space is at a premium and installation simplicity matters. With IEEE 802.3bt support, it delivers up to 60W to a single device while maintaining clear, standards-compliant network operation. Whether you’re expanding a campus, upgrading a perimeter security system, or deploying a resilient outdoor wireless backbone, this midspan provides a scalable, efficient, and safe solution for delivering power over Ethernet without needing a local power source at the device.”

What sets this Microsemi midspan apart is its combination of high-power delivery, outdoor-grade protection, and straightforward integration into existing network infrastructures. The unit supports the latest PoE standard to accommodate high-demand PDs (powered devices), ensuring future-proof compatibility as devices evolve to require more wattage and smarter power management. The rugged enclosure is engineered to withstand outdoor conditions, resisting dust, water, and temperature extremes, while keeping installation neat and secure. By consolidating power and data onto a single cable, it reduces wiring complexity, minimizes installation time, and lowers total cost of ownership for outdoor deployments. This midspan is an ideal choice for IT managers, security integrators, and network engineers who demand reliable performance, ease of use, and long-term durability in harsh environments.

• Long-range outdoor PoE power delivery with 60W maximum output per port, enabling full-powered operation for high-demand devices like high-resolution outdoor cameras, multi-band wireless access points, and advanced sensors. The injector is optimized for efficient power conversion, minimizing heat generation and maximizing performance in outdoor installations where cooling capacity may be limited. The device adheres to IEEE 802.3bt (PoE++), ensuring compatibility with modern PDs while supporting legacy PoE devices as needed. This means you can deploy future-ready equipment without needing multiple injectors or power sources, simplifying your network architecture and reducing points of failure.
• Rugged, outdoor-rated enclosure designed to withstand harsh environmental conditions. The midspan features weatherproof sealing and a robust mounting option, enabling secure installation on walls, poles, or cabinets. With IP65-level protection (where applicable) and wide operating temperature ranges, this midspan remains reliable in sun, rain, dust, and extreme temperatures, ensuring continuous operation for critical outdoor applications. Its durable build helps to minimize maintenance visits and downtime, which is essential for security cameras and remote network devices that operate unattended for extended periods.
• Smart, safe power management and protection features. The product includes built-in safeguards such as overload protection, short-circuit protection, over-temperature monitoring, and surge protection to guard both the midspan and connected PDs against electrical faults and transient events. These protections help preserve the life of expensive outdoor devices, reduce the risk of accidental damage during power surges, and provide predictable, steady operation even in challenging electrical environments. The result is a reliable solution for mission-critical deployments where uptime matters most.
• Seamless network integration with standard Ethernet infrastructure. As a single-port PoE midspan, it injects power onto the Ethernet line while maintaining data integrity at the standard Ethernet speeds used by most PDs. This compatibility ensures smooth interoperation with a wide range of devices, from IP cameras to outdoor access points, without requiring specialized network gear. Administrators benefit from straightforward configuration and troubleshooting, because the midspan behaves like a standard PoE injector aligned with industry norms and vendor expectations, reducing cross-vendor integration issues and simplifying maintenance across diverse deployments.
• Easy installation, minimum footprint, and flexible mounting options. The Microsemi midspan is designed for quick, tool-free installation with clear cable routing paths, saving time during site surveys and deployment. The compact form factor minimizes space requirements on mounting surfaces and in power rooms, while the straightforward input/output connectors simplify field wiring. This practicality translates into faster rollout times for outdoor networks, whether you’re outfitting a campus, a stadium, a transportation hub, or a distributed industrial site. In addition, the device’s remote monitoring capabilities (where applicable) give operators visibility into power status and fault conditions, enabling proactive maintenance and rapid issue resolution.

Technical Details of Microsemi 1 Port, 60W, IEEE 802.3bt Outdoor PoE Midspan

• Model / Port: 1 PoE output port designed for outdoor use, delivering PoE power and data over a single Ethernet cable.
• PoE Standard: IEEE 802.3bt (PoE++, Type 4) compliant, providing up to 60W of power to the PD per port while preserving data integrity at gigabit speeds.
• Output Power: 60W maximum power per port to support high-demand PDs such as advanced outdoor cameras and robust wireless access points.
• Input Voltage: 100–240 VAC, 50/60 Hz, enabling universal power compatibility across regions without requiring a transformer onsite.
• Output Voltage: 48 VDC nominal for PoE delivery, with current limited to prevent overloading PDs and to maintain consistent performance under load fluctuations.
• Efficiency & Protection: Built-in overload, short-circuit, over-temperature, and surge protection to ensure reliability and safety in adverse electrical conditions.
• Enclosure & Rating: Outdoor-rated rugged enclosure with weatherproofing appropriate for exterior mounting, designed to resist dust, moisture, and environmental exposure in typical outdoor environments.
• Operating Temperature: Wide operating range to support extreme climates and deployments in unconditioned spaces (typical ranges include -40°C to 75°C for harsh environments).
• Humidity & Environmental: Designed to operate in non-condensing humidity conditions common in outdoor installations; certified materials and enclosure integrity help prevent deterioration from moisture.
• Certifications: Compliance with common safety and regulatory standards appropriate for outdoor PoE equipment (UL, CE, and relevant regional markings as applicable to the SKU).
• Dimensions & Weight: Compact form factor suitable for tight mounting spaces; lightweight enough for quick field installation while maintaining structural integrity in outdoor settings.
• Mounting & Cabling: Flexible mounting options (wall or pole) with standard RJ-45 service connections; recommended shielded Cat5e/6/6a cabling or better to support stable PoE delivery and data performance.

how to install Microsemi 1 Port, 60W IEEE 802.3bt Outdoor PoE Midspan

• Plan the installation site: Choose a protected, accessible location with the shortest practical cable run to minimize power loss and ensure ease of maintenance. Confirm compatibility with outdoor mounting surfaces, ventilation, and drainage to avoid moisture accumulation around the enclosure.
• Power source preparation: Verify the availability of a suitable AC supply within the 100–240 VAC range. Ensure the electrical circuit is properly grounded and meets local electrical codes. Install a suitable RCD/breaker per local requirements to provide rapid disconnection in case of fault conditions.
• Mount the midspan securely: Attach the enclosure to a stable surface using appropriate hardware. Use weatherproof sealing grommets where cables enter the enclosure to maintain IP protection. Route the Ethernet cable from the PD back to the midspan with care to avoid sharp bends and to simplify future maintenance.
• Connect power and data: Connect the AC input to the midspan’s power inlet using proper strain relief. Attach the Ethernet cable from the switch or network hub to the midspan’s RJ-45 input, then connect the PD (the device to be powered) to the midspan’s PoE output port. Ensure the cable category meets the recommended specification (Cat5e/6/6a or better) for reliable power delivery and data transmission.
• Verify operation and test: Power on the system and check the PD link status. Confirm PoE functionality by verifying that the PD receives power and that data connectivity operates at expected speeds. Monitor for any fault indicators or alarms and review any local management tools if available. Perform a physical inspection for weatherproof seals and cable strain to ensure long-term reliability.
• Document and maintain: Record the installation details, including cable lengths, device IDs, and power budget calculations. Schedule periodic inspections to verify seals, look for signs of wear, and confirm that environmental conditions have not degraded performance over time.

Frequently asked questions

• Q: What devices can be powered by this midspan?
  A: This midspan provides up to 60W of power on a single PoE port, suitable for high-demand outdoor devices such as 4G/5G outdoor access points, high-resolution IP cameras, and multi-sensor outdoor systems. It powers devices that are compliant with IEEE 802.3bt PoE standards and require robust outdoor performance. If your device requires more than 60W, consider an alternative solution or a multi-port midspan with higher total wattage.
• Q: Is the midspan suitable for outdoor installations?
  A: Yes. The unit is designed for outdoor use with rugged enclosure protection and environmental robustness suitable for exterior mounting. Ensure proper mounting, weatherproof cabling, and adherence to local electrical codes for optimal reliability.
• Q: What kind of cables should I use?
  A: Use shielded Cat5e, Cat6, or Cat6a (or better) cabling to support both power and data transmission with minimal interference. Keep runs as short as possible to reduce power loss and maintain high data integrity, especially at higher PoE wattages.
• Q: Can I mix PoE standards on the same network?
  A: Yes, the midspan is compatible with mixed PoE environments as long as the PDs adhere to the respective IEEE PoE standards and power budgets. Switch the PDs’ capabilities and the midspan’s output to avoid overloading any single device or the injector itself.
