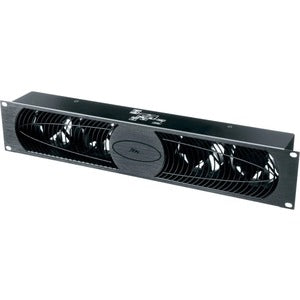

Middle Atlantic 100 CFM Fan Panel, 27dB, Anodized, 220-240VAC

The Middle Atlantic 100 CFM Fan Panel is a premium cooling solution designed for professional AV and IT rack environments. Engineered to quietly remove heat from dense electronics, this two-rackspace, ultra-quiet panel features a sophisticated on-board processor that modulates DC fan speed in direct response to equipment temperature. The result is reliable, energy-efficient cooling that preserves component longevity while maintaining a serene work environment. Designed for 19-inch racks, this panel blends performance with a clean, designer-inspired aesthetic, ensuring your rack not only stays cool but also looks stylish in high-visibility spaces.

• Smart, temperature-responsive cooling: An on-board processor continuously monitors rack temperature and adjusts fan speed in real time, delivering precisely the airflow needed. This dynamic control minimizes energy usage, reduces wear on the fans, and maintains stable temperatures for critical equipment even as ambient conditions fluctuate.
• Ultra-quiet operation for disciplined workspaces: With an impressive 27 dB of noise emission, the fan panel keeps ambient sound levels low in control rooms, broadcast suites, data closets, and studios, allowing operators to focus on tasks without distraction from cooling noise.
• Efficient 2U, two-rackspace form factor: Occupying two rack spaces, this panel makes the most of vertical rack real estate while delivering robust airflow to protect densely packed devices such as servers, switches, storage gear, and AV processors managed in tight environments.
• Rugged anodized construction: The enclosure uses durable anodized aluminum, delivering corrosion resistance and long-term durability in challenging rack rooms. The refined finish resists wear from repeated insertions, removals, and routine maintenance, keeping the unit looking professional for years.
• Wide compatibility with 220–240 VAC power: Designed to operate within standard high-voltage rack environments, this panel supports broad electrical infrastructure. It’s an ideal choice for facilities where reliable, centralized cooling is essential and where energy-efficient, temperature-driven control adds significant value.

Technical Details of Middle Atlantic 100 CFM Fan Panel

• Airflow: 100 CFM nominal cooling capacity to efficiently remove heat from mid-to-high density equipment ranges.
• Noise level: Approximately 27 dB(A) under typical operating conditions, delivering quiet performance in sensitive spaces.
• Finish: Anodized aluminum enclosure for durability and a premium, wear-resistant surface.
• Voltage: 220–240 VAC power input, suitable for standard higher-voltage rack installations.
• Rack requirement: 2U (two rack spaces) in standard 19-inch racks, enabling convenient integration alongside other components.
• Control system: On-board processor-based DC fan speed control that modulates output in direct response to equipment temperature.
• Design intent: Designer Inspired Ultra Quiet Fan Panel built to deliver dependable cooling with a refined, professional appearance.
• Applications: Ideal for cooling enclosed electronics in racks housing servers, networking gear, AV processors, and other heat-generating devices.

How to install Middle Atlantic 100 CFM Fan Panel

• Prepare the rack: Power down all equipment and disconnect from power. Ensure the rack area is clear of obstructions and that there is adequate clearance for intake and exhaust airflow.
• Position and mount: Slide the fan panel into the chosen 2U rack space, aligning mounting holes with the rack rails. Secure firmly using the supplied screws or hardware recommended by Middle Atlantic for your rack model.
• Electrical connections: Connect the panel to a 220–240 VAC power source following the included wiring diagram. Ensure grounding is properly established and that electrical codes for your facility are followed. Avoid daisy-chaining or sharing power with incompatible devices that could affect performance.
• Airflow optimization: Verify that intake and exhaust paths are free of obstructions. Do not block vents with cables, filters, or accessories that could impede airflow. If your rack uses side panels or doors, ensure they accommodate proper ventilation without creating recirculation.
• Initial power-on and testing: Restore power and power up the rack. Confirm that the on-board controller initializes and that the fan responds to temperature changes as equipment heats and cools. Listen for smooth operation without unusual vibration or rattle and verify consistent airflow across the enclosure.
• System integration: If you manage the rack with a supervisory system, configure the fan panel to report status and temperature, if supported. Document the installation for future maintenance and facilitate quick troubleshooting if needed.

Frequently asked questions

• What cooling capacity does the panel provide? It delivers up to 100 CFM of airflow to effectively remove heat from densely packed equipment in a standard 19-inch rack.
• How quiet is the unit in practice? The design targets a low 27 dB(A) noise level, making it suitable for environments where noise sensitivity is important.
• What voltage does it require? It operates on 220–240 VAC, aligning with common high-voltage rack power distributions.
• How does the fan speed adjust? The on-board processor continuously monitors equipment temperature and modulates DC fan speed proportionally to thermal demand, balancing cooling with energy efficiency and low noise.
• Is this panel compatible with other manufacturers’ racks? It is designed for standard 19-inch racks and integrates well with Middle Atlantic systems as well as other common rack configurations that support 2U panels.
• What maintenance is required? Routine inspection for dust buildup and ensuring vents remain unobstructed is usually sufficient; the sealed anodized enclosure helps minimize corrosion and wear over time.
