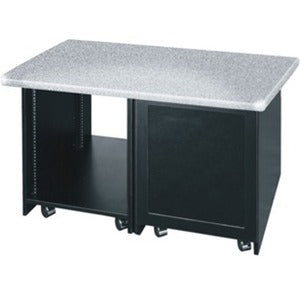

Middle Atlantic 12 Space 2 Bay Square TOP Outboard Rack, HM

The Middle Atlantic 12 Space 2 Bay Square TOP Outboard Rack, HM is engineered for professional AV and studio environments where organization, airflow, and reliability matter. This compact, dual-bay outboard rack maximizes rack density without sacrificing serviceability, delivering 12 rack spaces across two bays while keeping components accessible and properly ventilated. With a square top that permits independent positioning, caster mobility, and a built-in cooling option in one bay, this rack is designed to streamline Edit Center workflows and keep critical equipment protected in demanding installations. It ships fully assembled, so technicians can deploy it immediately in a rack room, control room, or editing suite, minimizing downtime and installation time.

• Optimized for Edit Center applications with matching rack mounting capacity to simplify integration with existing equipment and workflows.
• Ships fully assembled and includes casters for immediate mobility, enabling quick repositioning as room layouts evolve or equipment needs change.
• Dual bay outboard rack (12 spaces total) provides scalable storage for power supplies, patch panels, amplifiers, and other essential gear while maintaining a clean, organized cabling environment.
• Square top design allows independent positioning for flexible layout in tight or irregular rooms, making it easier to align with doorways, lighting rigs, or ceiling grids.
• One bay equipped with doors and a built-in quiet cooling system to protect sensitive equipment from overheating while minimizing fan noise in controlled environments.

Technical Details of Middle Atlantic 12 Space 2 Bay Square TOP Outboard Rack, HM

• Rack configuration: 2 bays, 12 total rack spaces
• Top design: Square top allows independent positioning and flexible room planning
• Rail system: Front and rear 10-32 threaded rack rails for secure mounting of standard equipment
• Mobility: Includes casters for easy relocation and floor protection during setup
• Construction: Outboard dual-bay rack optimized for Edit Center applications
• Ventilation: One bay features built-in quiet cooling to maintain optimal thermal conditions
• Doors: One bay is equipped with doors to conceal and protect components
• Assembly: Ships fully assembled, reducing on-site labor and installation time
• Compatibility: Designed to integrate seamlessly with standard rack-mounted equipment and Middle Atlantic accessories

how to install Middle Atlantic 12 Space 2 Bay Square TOP Outboard Rack, HM

• Plan your layout by identifying a stable floor surface and ensuring the space can accommodate the rack’s footprint plus clearance for ventilation and cabling.
• Unpack and inspect the rack to verify all components are present. The unit ships fully assembled, so confirm caster wheels are not engaged in transit and can be deployed safely.
• Place the rack in its intended location. If you are mounting adjacent to other racks, align the rails with neighboring units to maintain a clean, continuous rack line.
• Engage the casters to move the rack into position. Once in place, lock the casters to prevent unintended movement during operation.
• Attach equipment to the front and rear 10-32 threaded rack rails. Use appropriate hardware and torque recommendations per the equipment manufacturer’s guidelines, ensuring weight distribution is balanced across both bays.
• If you are using the bay with doors, verify the door mechanism operates smoothly and that there is adequate clearance for opening and closing without obstruction.
• Check airflow around the built-in cooling bay. If the cooling system is connected to a power source, ensure the power is available and wired per local electrical codes. Confirm ventilation paths are clear of obstructions.
• Power on equipment in the rack in a controlled sequence, starting with critical devices and then ancillary systems. Monitor temperatures to confirm the cooling bay is functioning as intended.
• Perform a final cabling pass to organize inputs and outputs. Use cable management practices to minimize clutter and maximize airflow around the 12-space rack.

Frequently asked questions

• Q: How many rack spaces does the Middle Atlantic HM rack provide?
  A: It offers 12 rack spaces across two bays, optimized for a compact yet scalable installation.
• Q: Is the rack shipped fully assembled?
  A: Yes. The unit ships fully assembled to save time on-site and reduce installation labor.
• Q: Do the racks include casters?
  A: Yes. The HM outboard rack includes casters for easy mobility and flexible room planning.
• Q: Does one bay come with doors?
  A: Yes. One bay is equipped with doors to conceal and protect equipment, while the other bay remains open for quick access if needed.
• Q: Is there built-in cooling available?
  A: Indeed. The unit features a built-in quiet cooling system in the designated bay to maintain safe operating temperatures and reduce noise in the workspace.
• Q: Are front and rear rack rails included?
  A: Yes. The rack includes front and rear 10-32 threaded rack rails, enabling versatile mounting of standard equipment and accessories.
• Q: What applications is this rack best suited for?
  A: It is designed for Edit Center workflows and other professional AV or broadcast environments where reliable rack mounting, cooling, and mobility are important.
• Q: Can this rack be integrated with other Middle Atlantic components?
  A: Yes. It is built to integrate with standard Middle Atlantic accessories and compatible rack-mounted equipment for cohesive system design.
