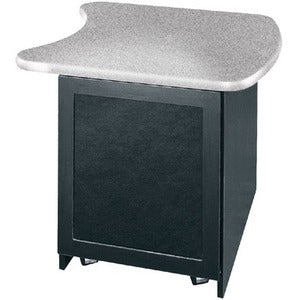

Middle Atlantic 12 Space Outboard Rack w/Door, HM

Designed for professional edit suites and broadcast environments, the Middle Atlantic 12 Space Outboard Rack with Door (HM) combines robust rack enclosure with quiet cooling and adaptable geometry to fit into Edit Center configurations. This single-bay, outboard rack delivers reliable space for essential equipment while protecting sensitive electronics from dust and incidental contact. The built-in cooling system minimizes heat buildup in densely populated racks, helping extend the life of gear and preserve performance. With a reversible top contour, this unit can be positioned to match your room layout, whether you’re stacking it against the wall on the left or right side, making it a versatile centerpiece for modern post-production workflows. The HM model is equipped to integrate seamlessly with standard 19-inch equipment, and its front and rear 10-32 threaded rackrails ensure secure, accessible mounting for a wide range of devices. Casters add mobility for reconfigurations, cleaning, or service, while durable doors provide a neat, secure facade for sensitive gear. In short, this rack is engineered to support Edit Center applications with dependable durability, quiet operation, and configurable features that adapt to evolving studio needs.

• Delivers 12-rack-space capacity in a single-bay outboard configuration, perfect for compact Edit Center setups and post-production racks. The layout simplifies cable management and equipment access while maintaining a clean, professional appearance. With 12 available spaces, you can consolidate multiple devices—such as video routers, patch panels, audio interfaces, and power distribution—into one organized enclosure that reduces clutter and streamlines daily operations.
• Equipped with a front and rear 10-32 threaded rackrail system, this rack ensures secure installation and convenient compatibility with widely used 19-inch rack-mount gear. The dual-rail design promotes sturdy mounting, safer equipment support, and flexible placement of devices along the rack. This feature is essential for balanced weight distribution and ease of service access from either side of the cabinet.
• Features a built-in quiet cooling system and enclosed doors to manage airflow while minimizing noise in busy control rooms. The cooling system maintains optimal operating temperatures for densely populated equipment, reducing thermal stress and helping to preserve component longevity. The doors provide additional protection against dust and casual tampering, while maintaining a professional, tidy look for front-end and monitor areas.
• The reversible top with a matching contour enables left- or right-positioning to fit your room’s layout. This flexibility is ideal for room planning, rehearsal spaces, or multi-room studios where furniture and equipment must align with existing shelves and desks. The reversible top also simplifies installation in corner setups or alcoves, allowing technicians to tailor the rack to the workflow rather than compromising the workstation.
• Casters are included for easy mobility, floor protection, and quick reconfiguration during studio changes, equipment updates, or cleaning. When you need to shift gear between rooms or reassemble a shot-ready edit suite, the HM rack moves smoothly, preserving the integrity of cabling and connections. The combination of mobility and sturdy construction makes this rack a pragmatic choice for dynamic production environments.

Technical Details of Middle Atlantic 12 Space Outboard Rack w/Door, HM

• Rack type: Outboard, single-bay configuration with 12 rack spaces
• Doors: Included (enclosed enclosure for dust protection and security)
• Cooling: Built-in quiet cooling system to minimize noise and control heat
• Top: Reversible with matching contour for left- or right-handed positioning
• Rack rails: Front and rear 10-32 threaded rackrails for secure mounting
• Casters: Included for mobility and easy reconfiguration
• Primary application: Edit Center-compatible rack enclosure for post-production and broadcast environments
• Material and finish: Constructed for durability and long-term use in studio settings (specific finish not listed)

How to install Middle Atlantic 12 Space Outboard Rack w/Door, HM

• Choose a stable, level location with adequate ventilation and access to power, network, and I/O connections. Ensure the space allows for the reversible top orientation you plan to use (left- or right-facing).
• Unpack the rack and inspect all components for shipping damage. Verify that the front and rear 10-32 rackrails are present and free of obstructions.
• Install the casters if not already attached, following the manufacturer’s guidelines for secure mounting and leveling. Confirm the rack sits evenly on the floor and that each caster supports its share of the load.
• Attach the front and rear 10-32 threaded rackrails to the cabinet as required by your equipment layout. Begin mounting with the heaviest equipment at the bottom to optimize stability, and leave space for proper airflow around heat-generating devices.
• Position the reverse-top option in the desired orientation (left or right) and secure it to the rack as instructed. Ensure that the top contour aligns with adjacent furniture or equipment and that any cable pass-throughs or ventilation cutouts remain unobstructed.
• Mount equipment in the 12 available spaces, starting with critical devices that require easy access for maintenance or frequent reboots. Route cables neatly along the rails and through cable management channels to minimize clutter and air flow disruption.
• Connect the built-in cooling system to the power supply as directed by the product documentation, ensuring that the unit’s intake and exhaust are unobstructed to maximize cooling efficiency.
• Attach doors securely to the rack, verify smooth operation, and confirm that doors close completely to protect equipment from dust and incidental contact.
• Power up the system and perform a basic functional check of each device, confirming proper cabling, network connections, and signal integrity. Monitor the cooling system briefly to ensure it’s engaging and maintaining safe temperatures.
• Periodically inspect and clean the rack interior, ensure ventilation paths remain clear, and re-check rack screws and casters to maintain structural integrity over time.

Frequently asked questions

• Q: What is the capacity of the Middle Atlantic 12 Space Outboard Rack w/Door, HM? A: It provides 12 rack spaces in a single-bay outboard configuration, designed for organizing multiple 19-inch equipment units within Edit Center workflows.
• Q: Does the rack include doors and a cooling system? A: Yes. The unit is equipped with doors for protection and a built-in quiet cooling system to manage heat in densely populated racks.
• Q: Can the top be oriented left or right? A: The top is reversible, allowing you to position it for left- or right-side configurations to fit your space.
• Q: Are rack rails included, and what sizes do they support? A: The rack includes front and rear 10-32 threaded rackrails, compatible with standard 19-inch equipment for secure mounting.
• Q: Are casters included for mobility? A: Yes. Casters are included to facilitate easy repositioning, cleaning, or reconfiguration of your studio space.
