• Efficient, space-saving design: The 14RU rear access panel replaces a traditional door with a no-hinge “tip-out” mechanism, delivering a significantly smaller footprint while preserving full rear access to mounted equipment. This compact profile is especially valuable in crowded racks or installations where mounting depth is tight. The design minimizes door swing and clearance requirements, enabling easier cable management and safer, quicker maintenance in tight server rooms, broadcast facilities, and live-event venues. The result is a cleaner rear enclosure that improves overall air flow and makes service tasks faster and less intrusive for technicians.
• Secure access and robust construction: Built to endure the rigors of professional environments, this panel incorporates a secure keylock along with solid metal construction to protect valuable gear. The no-hinge concept reduces the number of moving parts compared to traditional doors, lowering wear over time and decreasing the likelihood of misalignment. The combination of sturdy materials, secure locking, and a simple, dependable latch mechanism provides peace of mind in applications where racks house critical equipment and sensitive components.
• Advanced cooling and cable management options: The top of the panel features knockouts for two fans (fan kit part# 5-FAN-K), enabling enhanced rear cooling for high-heat equipment. This support for active cooling helps maintain optimal temperatures in dense 14U setups, which translates to better reliability and longer equipment life. In addition, the bottom of the panel includes a laser knock-out designed for clean, efficient cable pass-through, making it easier to route power, data, and video cables without creating clutter or restricting airflow. The combination of targeted cooling and organized cable routing is ideal for multi-device installations where airflow and cable discipline directly influence performance.
• Compatibility tailored to Slim 5 Series racks: Specifically designed for Middle Atlantic Slim 5 Series enclosures, this 14RU rear access panel integrates seamlessly with existing Slim 5 configurations. Its dimensions, mounting interface, and overall geometry are optimized to align with Slim 5 Series rails, supporting quick, hassle-free retrofits or upgrades to current rack setups. This compatibility ensures you don’t need to modify other rack components—just install the rear access panel and you’re ready to unlock improved rear access and cable management in a compact, professional package.
• Versatile use cases across professional environments: Whether you’re outfitting a broadcast control room, recording studio, data center edge cabinet, or live event infrastructure, this rear access panel delivers practical benefits. It accommodates dense equipment layouts by freeing space currently consumed by bulky doors, while its pass-through and cooling options simplify cable management and thermal planning. The result is a more efficient, safer, and visually tidy rack environment that supports fast service, easier equipment swaps, and reliable operation in demanding settings.

Technical Details of Middle Atlantic 14RU Rear Access Panel for Slim 5 Series Racks

• RU capacity: 14 rack units (14U) of rear access panel space for mounting and servicing rear equipment.
• Compatibility: Designed for Middle Atlantic Slim 5 Series racks, ensuring a precise fit and straightforward installation.

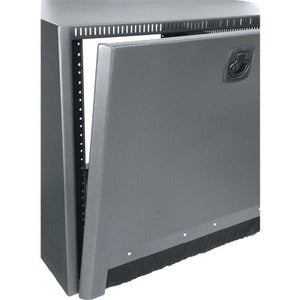

• Design: Rear access panel with a no-hinge "tip-out" mechanism that requires less space than a conventional door, reducing overall enclosure depth and improving rear clearance.
• Cooling options: Top knockouts are provided for two fans (fan kit part# 5-FAN-K) to enhance rear cooling for high-heat equipment.
• Cable pass-through: Bottom features a laser knock-out for convenient cable pass-through and routing; includes a security keylock for restricted access.
• Material and finish: Constructed from durable steel with a protective powder-coated finish designed to withstand professional usage and resist wear in busy rack environments.

How to install Middle Atlantic 14RU Rear Access Panel for Slim 5 Series Racks

• Prepare the rack and panel: Verify compatibility with your Slim 5 Series rack and confirm the panel is appropriate for a 14U configuration. Power down and unplug all equipment before starting installation.
• Remove existing rear access hardware: If your rack currently has a rear door or panel, remove it carefully to create a clean mounting surface for the new rear access panel.
• Position and align: Align the rear access panel with the rack rails and mounting points. Ensure the top fan knockouts and bottom laser pass-through align with your desired cable paths and cooling plan.
• Mount the panel: Secure the panel to the rack using the appropriate hardware provided or specified by Slim 5 Series installation guidelines. Confirm that the panel sits flush and that the tip-out action is unobstructed.
• Install cooling and route cables: If using the fan kit (5-FAN-K), install it into the top knockouts. Route power and data cables through the bottom laser knock-out, keeping cables orderly and avoiding pinch points. Tie cables as needed to maintain clean airflow.
• Secure and test: Engage the keylock to ensure secure access. Reconnect equipment and power up to verify proper airflow, clearance, and rear accessibility for maintenance tasks.

Frequently asked questions

• Q: Is this rear access panel compatible with Slim 5 Series racks? A: Yes, it is designed specifically for Slim 5 Series racks and supports a 14U rear panel configuration.
• Q: Does the panel come with a keylock? A: Yes, a secure keylock is included to restrict rear access to authorized personnel.
• Q: Can I install fans into the panel? A: The top of the panel includes knockouts for two fans, and you can use the fan kit part# 5-FAN-K to enhance rear cooling.
• Q: What is the rack unit size of this panel? A: The panel is designed for 14U of rear access within Slim 5 Series racks.
• Q: How do I pass cables through the panel? A: Use the bottom laser knock-out for cable pass-through and route cables neatly to maintain airflow and organization inside the rack.
