Description

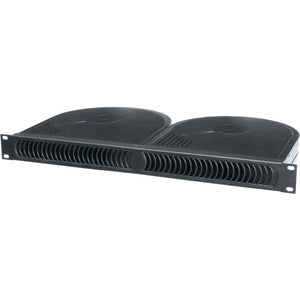

Middle Atlantic 1RU Blower Panel - Quiet Blower Panel
The Middle Atlantic 1RU Blower Panel is the compact, high-efficiency cooling solution your rack cabinet needs to keep sensitive AV gear, servers, and network equipment performing at peak. Engineered for professional environments, this Quiet Blower Panel combines a space-saving 1U footprint with two custom-designed blowers and a thermostatic controller, delivering steady airflow and reliable temperature management without sacrificing rack space. With a flat black powder coat finish, it blends seamlessly into standard 19" racks, providing a clean, unobtrusive look while quietly protecting critical components from heat buildup. Designed to operate on 220–240VAC, this panel is ideal for installations in studios, post-production suites, broadcast facilities, and data centers that demand quiet, dependable cooling in confined spaces.
- Space-saving design: Occupies just one rack unit (1U) to maximize rack capacity while delivering robust cooling performance for compact or crowded rack enclosures.
- Two custom blowers: Specifically tuned to provide efficient airflow with low noise output, helping maintain stable temperatures for sensitive equipment without adding distracting fan noise.
- Thermostatic control: Integrated thermostatic controller automatically adjusts blower speed to maintain optimal temperatures, reducing energy use and extending equipment life.
- Rugged finish and compatibility: Flat black powder-coated exterior withstands rackmount environments and blends with standard gear, making it suitable for professional AV racks, server rooms, and edit suites.
- Easy integration: Designed for quick installation in compatible 19" racks, taking up a single slot while delivering reliable, consistent cooling for a variety of devices housed within the enclosure.
Technical Details of Middle Atlantic 1RU Blower Panel - Quiet Blower Panel
- Rack space: 1U (occupies one rack unit)
- Includes: one space panel and two custom-designed blowers
- Finish: flat black powder coat for durability and a professional look
- Electrical requirements: 220–240VAC input voltage
- Control: thermostatic controller to regulate blower speed based on temperature
- Configuration: compact, rack-mountable design suitable for standard 19" racks
- Purpose: delivers targeted cooling to enclosed equipment with minimal footprint
How to Install Middle Atlantic 1RU Blower Panel
Installing the Middle Atlantic 1RU Blower Panel is a straightforward process designed to minimize downtime while maximizing cooling efficiency. Begin by powering down and safely de-energizing the equipment inside your rack. Remove any blanking plates or unused spaces around the rear of the rack to ensure unobstructed airflow. Align the blower panel with the corresponding 1U slot in your 19" rack, ensuring the panel’s mounts engage securely with the rack rails. Gently slide the unit into place, taking care not to pinch cables or obstruct the blowers’ intake and exhaust pathways.
Once the panel is seated, connect the 220–240VAC power supply to the panel’s electrical input using the appropriate rack-mount distribution or power strip. Verify that all leads are neatly managed and do not interfere with airflow. Turn on the power and allow the thermostatic controller to initialize; the blowers will begin at a low speed and ramp up as needed to maintain target temperatures. Finally, test the system by simulating elevated temperatures within the rack (if safe and feasible) to confirm that the thermostatic controller responds correctly and that airflow is consistent across the enclosure. For best results, ensure there is adequate clearance behind the rack and around the rear doors to prevent hot air recirculation and to maximize the effectiveness of the cooling panel.
Tips for optimal performance:
- Place the blower panel at an accessible position within the rack to simplify maintenance and filter inspections, if applicable.
- Maintain tidy cable management to avoid obstructing airflow paths in the rear of the rack.
- Regularly inspect the air intake and exhaust areas for dust buildup; schedule periodic cleaning to preserve efficiency.
- Pair the 1RU Blower Panel with other rack cooling strategies, such as proper venting, to achieve best overall thermal management.
- Consult equipment manuals for recommended operating temperatures and ensure your devices are rated for ambient conditions inside the enclosure.
Frequently asked questions
- Q: What equipment does this panel include?
- A: It includes one space panel and two custom-designed blowers, all designed to fit a single 1U rack space.
- Q: What voltage is required?
- A: This panel operates with 220–240VAC input, making it suitable for many professional power environments and installations.
- Q: Does it come with a thermostat or does it require an external controller?
- A: The unit includes a thermostatic controller to automatically regulate blower speed based on rack temperature for efficient cooling and energy savings.
- Q: How much rack space does it occupy?
- A: It occupies one rack unit (1U) of a 19" equipment rack, preserving valuable space for other devices and modules.
- Q: Is the finish durable in a professional environment?
- A: Yes. The panel features a flat black powder coat finish designed to withstand routine rackroom use and maintain a professional, low-profile appearance over time.
- Q: Can this be used in quiet environments like studios or edit suites?
- A: Absolutely. The two custom blowers are designed to provide effective cooling with low operational noise, making it suitable for sound-sensitive spaces.
