Middle Atlantic 1RU Fan Tray - 3 Fans - 207 CFM

Middle AtlanticSKU: 5541548

Price:
Sale price$496.80

Description

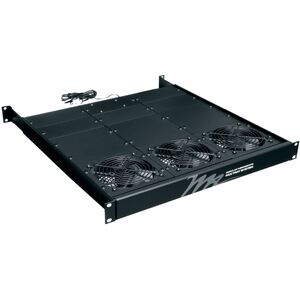

Middle Atlantic 1RU Fan Tray - 3 Fans - 207 CFM

Designed for pro AV and IT rack environments, the Middle Atlantic 1RU Fan Tray delivers targeted cooling where it matters most—directly above hot equipment vents. This compact 1RU solution makes it easier to move hot air in the desired direction, helping to maintain optimum temperatures across dense racks. With support for 3 to 8 quiet 4-inch DC fans, each delivering 69 CFM, you gain flexible airflow management that scales with your system load. The result is a smarter, more reliable cooling strategy that can extend the life of critical gear while reducing hotspot risk in crowded racks.

  • Flexible, scalable fan configuration: Start with a compact 3-fan setup (207 CFM total) and scale up to 8 fans (up to 552 CFM) as your rack density grows. The 1RU fan tray is designed to adapt to changing cooling needs, letting you tailor airflow precisely to the heat load of your equipment. This flexibility is ideal for mixed environments where some devices generate more heat than others.
  • Targeted airflow for maximum cooling efficiency: By locating fans directly above vents on hot equipment, the tray creates a deliberate airflow path that moves hot air away from critical components. This targeted approach reduces stagnation and hotspots, improving overall rack cooling efficiency and helping maintain stable operating temperatures for servers, switches, storage, and power distribution units.
  • Eight mounting positions for precise placement: The tray offers eight fan mounting positions, enabling you to position fans where airflow is most needed. This design makes it possible to align the cooling array with the exact topology of your rack and gear stack, ensuring consistent airflow across multiple devices without forcing airflow through unnecessary pathways.
  • Quiet, reliable DC fans for data-center-friendly operation: The system uses quiet 4-inch DC fans (69 CFM per fan), balancing effective cooling with low noise levels. Ideal for data centers, media rooms, control rooms, and other environments where minimizing acoustic disruption is important, especially in spaces with human operators nearby.
  • Easy integration and expandable cooling: With support for add-on fans, you can extend cooling capacity as equipment evolves. The tray is designed to accommodate future expansion without requiring a full rack redesign, making it a forward-thinking choice for growing networks and evolving AV installations.

Technical Details of Middle Atlantic 1RU Fan Tray - 3 Fans - 207 CFM

  • Configuration range: Supports 3 to 8 quiet 4" DC fans. This enables you to customize total airflow from 207 CFM (3 fans) up to 552 CFM (8 fans), depending on cooling needs.
  • Airflow per fan: 69 CFM for each 4" DC fan, providing predictable and uniform performance across the tray.
  • Total cooling capacity: 207 CFM with the standard 3-fan setup; up to 552 CFM with the maximum 8-fan configuration, allowing the system to scale with higher heat loads.
  • Mounting framework: 1RU height in a standard 19" rack footprint, designed to fit within common server, network, and AV rack enclosures.
  • Fan mounting flexibility: Eight distinct mounting positions give installers the freedom to place fans for optimal airflow alignment with vented equipment, improving thermal performance without altering rack layout.
  • Power and drive requirements: Uses 4" DC fans; power delivery is configured for DC operation consistent with typical rack cooling peripherals. Specific voltage requirements and backplane compatibility should follow your installation’s power strategy and hardware vendor guidelines.
  • Construction and environment: Engineered for rack environments with a focus on durability, ease of service, and reliable continuous operation in data centers, server rooms, and technical facilities.
  • Compatibility: Designed to integrate with Middle Atlantic rack systems and other standard 19" enclosures that require modular, scalable cooling solutions for dense equipment. Optional add-on fans expand capabilities without sacrificing space or airflow efficiency.

How to install Middle Atlantic 1RU Fan Tray - 3 Fans - 207 CFM

  • Plan your airflow strategy: Assess your rack layout and identify the hottest equipment. Decide how many fans you will use initially (3 to 8) and where to place them across the eight mounting positions to maximize vent alignment and airflow efficiency.
  • Prepare the rack space: Clear the 1U space you intend to install the tray, ensuring there is unobstructed airflow above and around the vented equipment. Confirm that the rack height is compatible with a 1U accessory and that the mounting rails are ready for the tray install.
  • Mount the tray: Secure the 1RU fan tray into the rack chassis using the appropriate screws or mounting hardware provided by Middle Atlantic or your rack supplier. Align the tray so that fans line up with equipment vents, minimizing obstructions to airflow.
  • Install fans and cabling: If integrating additional fans, attach them to the tray’s mounting positions. Connect the fans to your DC power source or backplane as specified by your installation guidelines. Use cable management practices to keep power and data cables tidy and away from moving parts.
  • Configure airflow direction and test: Once powered, verify the direction of airflow toward the intended exhaust path and test with hot equipment running. Check for vibrations or unusual noise, and adjust fan positions as needed to achieve the desired CFM distribution and silence level.
  • Monitor and adjust for optimal performance: After initial testing, monitor rack temperatures and fan speeds if supported by your power supplies. Fine-tune which mounting positions are used and how many fans operate under varying load conditions to maintain steady temperatures and energy efficiency.

Frequently asked questions

  • What is the minimum and maximum number of fans supported? The Middle Atlantic 1RU Fan Tray supports a minimum of 3 fans and can accommodate up to 8 fans, allowing you to scale airflow from 207 CFM up to 552 CFM as your cooling needs grow.
  • What is the expected airflow per fan? Each 4-inch DC fan delivers approximately 69 CFM, providing a predictable and uniform contribution to the overall cooling performance regardless of the total fan count in use.
  • Can I add more fans after initial installation? Yes. The design includes optional add-on fans and eight mounting positions, enabling you to expand cooling capacity as equipment and heat loads increase.
  • Is this suitable for quiet operation in office or studio environments? Yes. The fans are described as quiet, making the tray appropriate for environments where minimizing acoustic impact is important, such as control rooms, editing suites, and other professional spaces near occupants.
  • Which racks is it compatible with? The tray is built for standard 19" racks and 1U height, making it compatible with most data centers, server rooms, and AV racks that use common 19" mounting setups. For optimal results, ensure compatibility with your rack’s rails and power distribution plan.
  • How does this improve overall rack reliability? By reducing hot spots and maintaining more uniform temperatures across densely packed equipment, the fan tray helps prevent thermal throttling, component stress, and potential failures due to overheating, contributing to longer equipment life and fewer maintenance incidents.
