Middle Atlantic 1RU Fan Tray — 6 Fans — 414 CFM

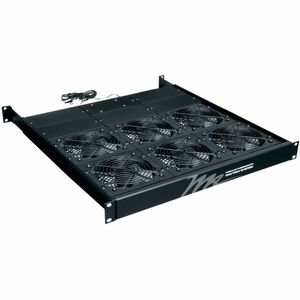

The Middle Atlantic 1RU Fan Tray is a compact, high-efficiency cooling solution designed to push hot air away from critical equipment in rack enclosures. Built to optimize airflow in tight spaces, this 1U fan tray places fans directly above vents on hot equipment, helping hot air move in the right direction for effective rack cooling. With six quiet 4-inch DC fans delivering a combined 414 CFM, it provides robust cooling performance while maintaining a low noise profile suitable for data centers, studios, and install environments where rack temperature control is essential. This tray is adaptable and scalable, offering the flexibility to use from 3 up to 8 fans and up to eight mounting positions, including optional add-ons, so you can tailor airflow precisely to your equipment and airflow strategy.

• Optimized airflow for rack cooling: Six 4-inch DC fans deliver 69 CFM per fan, totaling 414 CFM to aggressively move hot air away from equipment vents. Placing fans directly above heat sources accelerates air movement and helps maintain consistent temperatures within the rack. This targeted cooling approach minimizes hotspots and supports the reliability of sensitive components.
• Flexible mounting and expansion: The fan tray offers eight fan mounting positions, enabling you to position fans exactly where needed for your unique rack layout. An optional add-on fan configuration expands the tray’s capability, giving you greater control over airflow in varied rack environments while preserving the neat, modular appearance of your enclosure.
• Low-noise, reliable operation: Designed for quiet performance, the DC fans in this tray provide steady airflow with minimal audible distraction. Built for continuous operation, the system helps protect critical equipment from overheating without contributing excessive noise to the workspace.
• Space-saving, easy-to-integrate design: As a 1U, 19-inch rack-mountable solution, it integrates seamlessly into standard racks without occupying additional floor space. The compact footprint leaves room for servers, switches, PDUs, and other essential gear, while still delivering powerful cooling efficiency in a single, neat module.
• Simple installation with scalable cooling: The tray is straightforward to install in compatible 19-inch racks and offers scalable cooling options through additional fans if required. The modular design makes it easy to upgrade cooling capacity over time as your equipment grows or heat output changes.

Technical Details of Middle Atlantic 1RU Fan Tray — 6 Fans — 414 CFM

• Configuration: 1U high, 19-inch rack-mountable fan tray designed for efficient, targeted cooling above heat-generating equipment.
• Fans: 6 x 4-inch DC fans, each delivering 69 CFM for a total of 414 CFM, enabling strong airflow across critical components.
• Total airflow: 414 CFM when all six fans are active; performance can be adjusted by using from 3 to 8 fans as needed for specific cooling requirements.
• Mounting options: 8 fan mounting positions to tailor airflow paths; allows precise placement to maximize cooling effectiveness in diverse rack configurations.
• Power and control: DC-powered fan operation; designed for reliable, continuous use in rack environments with minimal maintenance.
• Add-ons: Optional additional fans can be added to customize and expand cooling capacity without replacing the tray.
• Compatibility: Fits standard 19-inch racks and integrates with Middle Atlantic rack systems for a cohesive cooling solution.

How to install Middle Atlantic 1RU Fan Tray

To install the 1RU Fan Tray, begin by identifying a suitable location within your 19-inch rack where cooling is needed most. Slide the tray into the 1U slot, aligning it with existing mounting rails. Secure the tray using the appropriate rack screws, ensuring the tray remains level and firmly attached to prevent vibration. Once mounted, plan your airflow by selecting the eight possible fan positions that maximize cooling efficiency for your specific equipment layout. Attach the fans in your chosen positions, using the included hardware and ensuring cables are neatly routed to avoid obstruction to airflow. Connect the DC power leads to your rack’s power distribution or to a dedicated fan controller or power supply compatible with the tray’s DC requirements. Finally, power on the system and verify airflow paths—confirm that warm air is distributed away from critical components and exits the rack through exhaust points. If you need to scale cooling later, you can add extra fans in available mounting positions or incorporate optional add-on fans to increase total airflow without replacing the existing tray.

For best results, position fans directly above hot components or vents to ensure air is drawn across the hottest surfaces and pushed toward rack exhausts. Regularly inspect fan operation and clean any dust or debris that may reduce efficiency. The modular design of the tray makes future upgrades straightforward, allowing you to respond quickly to changes in equipment density or heat output without redeploying an entire cooling system.

Frequently asked questions

• Q: How many fans come with the Middle Atlantic 1RU Fan Tray?

  A: The tray is designed to accommodate six 4-inch DC fans, which equates to 414 CFM when all six fans are in operation. The system also supports using from 3 to 8 fans depending on cooling needs.

• Q: What is the total airflow rating for this fan tray?

  A: When fully equipped with six fans, the total airflow is 414 CFM (69 CFM per fan). Fans can be added or omitted to adjust total CFM as required for your rack environment.

• Q: How many mounting positions are available for fans?

  A: The tray provides eight mounting positions, allowing flexible fan placement to target hotspots and optimize airflow paths around dense equipment racks.

• Q: Is this fan tray suitable for standard 19-inch racks?

  A: Yes. The unit is designed to fit standard 19-inch racks and is compatible with Middle Atlantic rack systems, providing a cohesive and professional cooling solution for data centers, studios, and high-density installations.

• Q: Can I add more fans later if cooling needs increase?

  A: Absolutely. The design supports optional add-on fans and flexible mounting, enabling you to scale cooling capacity without replacing the tray.
