Description

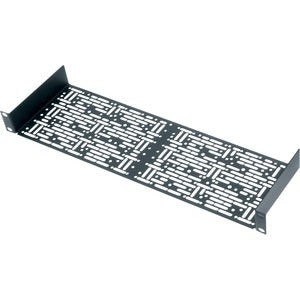

Middle Atlantic 1RU Rackshelf with 4 Partial Blank Panels - 5.5in Deep
Maximize rack efficiency with the Middle Atlantic 1RU Rackshelf. This compact, sturdy steel shelf is designed to support Extron and other small devices in either the front or rear of a standard 19" rack, giving technicians and installers flexible placement options for gear, cables, and power. The universal mounting pattern and counter-sunk holes align with popular Extron modules, ensuring a clean, secure fit that minimizes hardware intrusion and preserves a professional rack appearance. Built to endure the rigors of AV, IT, and broadcast environments, this 1U shelf blends practical functionality with a sleek, durable finish so your equipment sits securely while you optimize space and airflow.
With a depth of 5.5 inches, the rack shelf strikes a balance between capacity and accessibility. It provides a dedicated home for compact devices like media players, small control interfaces, compact servers, or waveform monitors without crowding other equipment. The black powder coat finish adds a layer of protection against wear and corrosion, while delivering a low-reflection, professional look that complements any rack system. Four partial blank panels are included to seal off unused portions of the rack, helping to maintain a tidy field service appearance and contributing to improved airflow and cable management. This combination of features is ideal for installers who demand a versatile, space-efficient solution that doesn’t compromise performance or aesthetics.
Whether you’re outfitting a conference room AV setup, a compact control room rack, or a small IT cabinet, this 1U shelveshelf provides a reliable platform for essential devices while preserving valuable rack real estate. The universal mounting pattern supports a variety of equipment forms in front or rear positions, enabling you to tailor your layout for accessibility and maintenance. The counter-sunk mounting holes align with common Extron devices, delivering a flush, clean installation that reduces protruding screws and simplifies cable routing behind the shelf. The combination of steel construction, precise fit, and durable finish ensures long-term reliability in demanding environments, from broadcast studios to classroom AV deployments.
In addition to its practical benefits, this Middle Atlantic rack shelf is designed to be user-friendly during installation and service. The 1U height fits neatly into standard racks, allowing you to create modular sections within a larger system. The included blank panels help you achieve a professional fiber, copper, or AV rack appearance by concealing gaps and maintaining a consistent silhouette. This approach not only enhances visual appeal but also supports thermal management by providing clear, unobstructed air pathways around mounted devices. If you’re upgrading an existing rack or building a new one, the 1RU Rackshelf with 4 Partial Blank Panels delivers a versatile, durable foundation for your gear that stands up to daily use and occasional reconfigurations.
- Universal mounting pattern holds Extron and other small devices in the front or rear of the rack for flexible deployment and simple reconfiguration.
- Includes counter-sunk holes to match popular Extron devices, ensuring a neat, flush mounting surface that reduces hardware protrusion and protects cables.
- Rugged steel construction with a black powder coat finish provides durable, corrosion-resistant support and a professional look in any AV or IT rack.
- 1U rack shelf design with a measured 5.5 inches of depth offers a compact solution ideal for shallow devices while leaving room for cabling and ventilation.
- Comes with four partial blank panels, allowing you to cover unused rack space and maintain a clean, organized rack profile.
Technical Details of Middle Atlantic 1RU Rackshelf with 4 Partial Blank Panels
- Height: 1U
- Depth: 5.5 in (approximately 14 cm)
- Material: Steel with black powder coat finish
- Mounting pattern: Universal front or rear mounting
- Includes: 4 partial blank panels
- Finish: Black powder coat
- Compatibility: Extron devices and other small 19" equipment
- Applications: Rack-mount shelf for 19" equipment racks
How to install Middle Atlantic 1RU Rackshelf with 4 Partial Blank Panels
To install the Middle Atlantic 1RU Rackshelf, begin by preparing your 19" equipment rack. Verify rail alignment and ensure the rack is stable. Identify the desired mounting height in 1U increments and align the shelf’s mounting holes with the rack rails. Using the appropriate screws for your rack finish and hardware, attach the shelf to the rails, tightening until secure but not over-torqued. If installing Extron devices, align their mounting holes with the shelf’s countersunk layout for a flush, clean surface. Once the shelf is fixed, place Extron and other small devices onto the shelf, routing cables neatly behind or along the rack rails to minimize obstruction. Finally, install the four partial blank panels to seal unused sections, which helps maintain a clean appearance and supports better airflow around mounted equipment. Periodically inspect the hardware and clean any dust from the shelf to preserve performance and longevity.
Frequently asked questions
- Q: What is the height and depth of the shelf? A: The shelf is 1U high and 5.5 inches deep, making it suitable for compact devices in standard 19" racks.
- Q: Is this shelf compatible with Extron devices? A: Yes. It includes counter-sunk holes that match popular Extron devices and supports a universal mounting pattern for front or rear mounting.
- Q: Does it come with blank panels? A: Yes. The package includes four partial blank panels to seal unused rack space.
- Q: What is the finish and material? A: The shelf is made of steel with a durable black powder coat finish for protection and a professional look.
- Q: Can it improve airflow in a rack? A: Yes. By sealing unused sections with blank panels and organizing devices on a 1U shelf, airflow is typically easier to manage and cables can be routed more cleanly.
