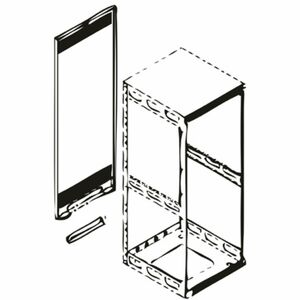

Middle Atlantic RAP21: 21U Rear Access Panel for Slim 5 Series Racks

The RAP21 is a purpose-built locking rear access panel engineered to secure the back of Middle Atlantic’s DTRK Slim 5 Series racks while delivering effortless service access. Designed for professional environments—broadcast studios, control rooms, AV installations, and data centers—the RAP21 is finished to match the look of DTRK racks, delivering a seamless, integrated appearance that enhances both security and aesthetics. Beyond its protective function, this rear panel supports clean cable management through an integrated brush entry, helping you route power, data, and AV cables efficiently without compromising airflow or rack integrity. When paired with Slim 5 Series racks, the RAP21 creates a cohesive enclosure solution that looks right at home in high-end installations and stands up to daily operational use. With its sturdy construction and reliable locking mechanism, you gain peace of mind that sensitive equipment is shielded from unauthorized access while remaining easily accessible for maintenance and upgrades. Whether you’re outfitting a new site or upgrading an existing rack system, the RAP21 delivers the security, style, and practicality you need to keep your equipment organized, secure, and performing at its best.

• Secure, lockable rear access: The RAP21 provides a robust locking mechanism that helps prevent tampering and unauthorized access to rear-mounted equipment, cables, and power connections, making it ideal for environments where security and controlled access are priorities.
• Seamless integration with DTRK Slim 5 Series: Finished to match the durable look of DTRK racks, this panel creates a professional, uniform appearance across your rack enclosure, ensuring a clean, high-end installation aesthetic.
• Brush cable entry for tidy wiring: The built-in brush entry guides cables neatly into the rear, reducing dust entry and helping maintain airflow while keeping cables organized and protected from wear during frequent rear access.
• Durable construction for daily use: Built to withstand the rigors of active rack environments, the RAP21 combines tough materials with precise manufacturing to maintain form and function over time, even with frequent opening and closing.
• Designed for the Slim 5 Series ecosystem: Specifically compatible with Middle Atlantic Slim 5 Series racks, the RAP21 optimizes space, fit, and compatibility, making it a practical upgrade or component for comprehensive rack systems.

Technical Details of RAP21

• Model: RAP21 Rear Access Panel
• Product Type: Locking rear access panel
• Compatibility: Middle Atlantic DTRK Slim 5 Series racks
• Height (Rack Units): 21U
• Finish: Durable powder-coated finish designed to match DTRK rack aesthetics
• Locking Mechanism: Secure locking rear panel for controlled access
• Cable Entry: Brush entry integrated to facilitate neat cable routing and dust control
• Construction: Steel enclosure built for high-traffic rack environments
• Mounting: 19-inch rack mounting compatibility with Slim 5 Series frames
• Weight: Varies by configuration; designed for ease of handling during installation

How to Install RAP21

• Power down and unplug equipment inside the rack to ensure safe installation and avoid accidental damage.
• Remove any existing rear cover or panel from the Slim 5 Series rack where the RAP21 will be installed, if applicable.
• Align the RAP21 with the rack’s rear mounting rails, ensuring the panel sits flush against the enclosure and the brush entry is positioned for convenient cable routing.
• Secure the panel using the standard rack mounting hardware compatible with Slim 5 Series frames, tightening screws evenly to maintain a solid fit without warping the panel.
• Route cables through the brush entry and connect them to rear-mounted devices as needed, then lock the RAP21 to restrict access and protect the connections.

Frequently Asked Questions

• Q: What is the RAP21 used for? A: The RAP21 is a locking rear access panel designed to secure and conceal the rear of DTRK Slim 5 Series racks while providing convenient access for maintenance, cable management, and upgrades. Its brush entry helps keep dust out and cables organized.
• Q: Is the RAP21 compatible with Slim 5 Series racks? A: Yes. The RAP21 is specifically designed to integrate with Middle Atlantic’s Slim 5 Series rack systems, ensuring a seamless fit and consistent appearance.
• Q: Does the RAP21 improve security? A: Indeed. The locking rear panel prevents unauthorized access to rear-mounted equipment and cables, adding a layer of security appropriate for professional AV, broadcast, and IT environments.
• Q: How does the brush cable entry benefit installation? A: The brush entry guides and protects cables as they enter the rear of the rack, helping maintain organized wiring, reducing dust intrusion, and preserving airflow for cooling.
• Q: What maintenance is required? A: Routine checks should include inspecting the locking mechanism for smooth operation, ensuring the panel sits securely in place, and confirming that cables remain neatly routed through the brush entry to avoid strain on connectors.
• Q: Can I install the RAP21 myself? A: Yes. The RAP21 is designed for straightforward installation on compatible Slim 5 Series racks. Basic hand tools are typically sufficient, and step-by-step guidance is provided in the installation section.
