Description

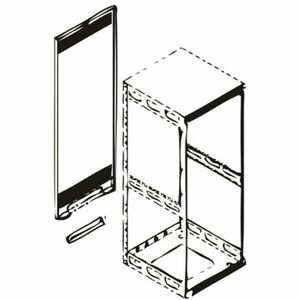

Middle Atlantic 29RU Rear Access Panel for Slim 5 Series Racks
The RAP29 is a locking rear access panel designed to provide secure access to the rear of Slim 5 Series racks. This panel is built with a durable finish that matches DTRK racks, ensuring a seamless, professional look when installed in any studio, data room, or control suite. Engineered for technicians who demand security without sacrificing accessibility, the RAP29 protects valuable equipment from tampering and dust while still enabling fast maintenance and configuration changes. Its thoughtful design supports clean cable management, enhanced airflow, and a low-profile aesthetic that blends with your existing Middle Atlantic rack ecosystem.
- Secure locking protection: The RAP29 features a keyed lock to restrict rear access, helping prevent unauthorized tampering and ensuring that only authorized personnel can open the panel. This makes it ideal for broadcast, post-production, and data environments where equipment integrity is critical.
- Seamless, durable finish: The rear panel is finished to match Middle Atlantic’s DTRK racks, delivering a uniform, professional appearance. This seamless finish preserves the visual integrity of your rack system, avoiding aftermarket mismatches and maintaining a cohesive room aesthetic.
- Efficient cable management with brush entry: A built-in brush cable entry guides cables neatly while minimizing dust intrusion. This feature supports orderly cable routing, reduces wear on active cables, and helps maintain optimal rear airflow for equipment cooling.
- Easy installation for Slim 5 Series racks: Designed to integrate with Slim 5 Series racks, the RAP29 installs quickly using the rack’s standard mounting points. The process minimizes downtime and keeps installations clean, professional, and compliant with typical AV rack workflows.
- Rugged durability for demanding environments: Constructed to withstand daily use in busy facilities, the RAP29 resists wear and environmental exposure. Its robust construction ensures reliable operation in studios, data centers, and live control rooms where dependable rear access is essential.
Technical Details of RAP29
- Product name: RAP29 Rear Access Panel for Slim 5 Series Racks
- Function: Locking rear access panel to secure the back of Slim 5 Series racks
- Finish: Durable finish that matches DTRK racks for a seamless look
- Cable entry: Brush-style cable entry to guide cables and minimize dust
- Compatibility: Specifically designed for Slim 5 Series racks with a rear access requirement (29U height)
How to install RAP29
Installing the RAP29 on a Slim 5 Series rack is designed to be straightforward and quick, with the goal of minimizing downtime during maintenance windows or system upgrades. Follow these general steps to achieve a secure, professional installation:
Step 1: Power down all equipment and disconnect any devices or cables that pass through the rear opening. Safety and equipment protection come first, especially in environments housing delicate electronics or critical recording gear.
Step 2: Prepare the Slim 5 Series rack for rear panel installation. Remove any existing rear cover or loosen the mounting hardware at the designated rear access points, ensuring the mounting area is clean and free of obstructions.
Step 3: Align the RAP29 with the rear opening of the rack. Make sure the brush cable entry lines up with the location of your cable bundles, so cables can pass through without kinking or excessive bending.
Step 4: Secure the RAP29 using the rack’s standard mounting points and compatible hardware. Tighten screws to a secure, even clamping without overtightening, which could distort the panel or the rack’s chassis.
Step 5: Route all rear cables through the brush entry, close the panel, and test the locking mechanism. Ensure the panel fully latches when engaged and that the cabinet doors or rack chassis remain aligned for a clean finish.
Step 6: Reconnect equipment and verify that all devices function correctly. Confirm that service access remains straightforward while the panel remains securely locked when not in use.
Frequently asked questions
- What is the RAP29? The RAP29 is a locking rear access panel designed for Slim 5 Series racks. It provides secure rear service access while preserving a professional, integrated appearance in your rack system.
- Is the RAP29 lockable? Yes. It includes a keyed locking mechanism to restrict unauthorized access to the rear of the rack.
- What racks is RAP29 compatible with? The RAP29 is designed specifically for Middle Atlantic Slim 5 Series racks, aligning with the 29U rear access footprint and ensuring a seamless fit with these enclosures.
- Does the RAP29 aid in cable management? Yes. The built-in brush cable entry guides cables neatly and helps minimize dust entry, contributing to cleaner installations and improved airflow.
- How do I install the RAP29? The RAP29 installs on the rear of Slim 5 Series racks by aligning it with the rear opening, securing it with the rack’s standard hardware, routing cables through the brush entry, and testing the lock for secure operation.
