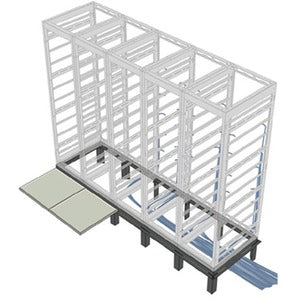

Middle Atlantic 3 Bay Riser Base for 48" Deep SNE Racks, 24" Wide

The Middle Atlantic 3 Bay Riser Base is a purpose-built floor-standing foundation designed to elevate and organize 24" wide SNE racks with a 48" deep footprint. Engineered for professional A/V, broadcast, and IT environments, this riser base combines rigid open-frame construction with a durable black powder-coated finish, delivering lasting performance under demanding rack-mounted configurations. Built to meet the needs of raised-floor installations and tile-surrounded rack systems, the 3 bay design provides stable, level support across three independent bays while maintaining optimum airflow and easy accessibility to equipment. Whether you’re outfitting a data center, control room, or production facility, this riser base helps you maximize space, improve cable management, and preserve the integrity of your sensitive gear. Custom sizes and heights are available, ensuring a precise fit for unique rooms and installations. Optional features like riser feet, support angles, and floor tile adapters further enhance compatibility with existing floor plans and raised-floor systems. With its robust construction and adaptable design, the Middle Atlantic riser base is a reliable foundation for 24" wide racks in 48" deep configurations.

• The 3 bay design provides sturdy, independent support for three 24" wide SNE racks, distributing weight evenly across a wide footprint to minimize flex and vibration while maximizing rack safety and equipment longevity in busy environments.
• Designed specifically for 24" wide racks and 48" deep installations, this floor-standing open-frame base ensures ample clearance for cable management, cooling pathways, and component access, helping you maintain clean, organized server and equipment landscapes.
• Finished in a rugged black powder coat, the riser base resists scratches and wear from daily rack activity, while providing a professional, low-glare appearance suitable for front-and-center data and control room deployments.
• Compatibility with floor tiles around the racks and optional support angles makes it easy to integrate the base into raised-floor environments, preserving uninterrupted workflow and meeting facility standards for cleanroom-like cable routing and tiling plans.
• Custom sizes and heights are available to fit non-standard room dimensions, with optional riser feet that raise the base to match raised-floor installations, offering flexible deployment without compromising structural integrity or airflow.

Technical Details of Middle Atlantic 3 Bay Riser Base for 48 Inch Deep for SNE Racks, 24 Inches Wide Racks

• Model: Middle Atlantic 3 Bay Riser Base (for 24" wide SNE racks)
• Capacity: Supports three 24" wide SNE racks, 48" deep footprint per bay
• Construction: Floor-standing open-frame design with steel members
• Finish: Black powder coat for durability and weathering resistance in demanding environments
• Depth compatibility: Optimized for 48" deep rack configurations
• Finish compatibility: Designed to pair with standard 19" rack equipment and common cabling paths
• Floor integration: Optional riser feet available to adapt to raised-floor installations
• Accessories: Optional support angles and floor tile surrounding options to enhance integration with tiles or raised floors
• Custom options: Custom sizes and heights available to fit unique room layouts and installation requirements

How to Install Middle Atlantic 3 Bay Riser Base

• Prepare the installation area by ensuring a flat, level floor surface capable of supporting the combined weight of three 24" wide racks and equipment mounted on the riser base.
• Unpack and inspect the riser base components, verifying that all bays, frame members, and fasteners are present and free of damage before assembly.
• Position the riser base in the intended location, aligning each bay with the planned rack positions to ensure even weight distribution and proper clearance for cabling and airflow.
• Assemble the open-frame structure according to the manufacturer’s guidelines, securing joints firmly and checking for square across all three bays.
• Install optional riser feet if elevated floor compatibility is required, then attach any required support angles or tile adapters to accommodate floor tiles or raised-floor configurations.
• Place each 24" wide rack onto the corresponding bay, ensuring proper alignment with vertical mounting rails and verifying that the base rests squarely and evenly on the floor.
• Connect cables, power lines, and equipment as needed, maintaining tidy cable management paths and leaving adequate clearance for cooling airflow.
• Check the overall stability, adjust leveling feet if provided, and confirm that the entire assembly is plumb and secure before seating equipment.
• Test for proper airflow and clearance around each bay, ensuring ventilation paths remain unobstructed and that floor tiles (if used) are fully supported by the surrounding base.

Frequently asked questions

• Q: What size racks does this riser base support? A: It is designed for 24" wide SNE racks with a 48" deep footprint per bay, accommodating up to three bays in a floor-standing open-frame configuration.
• Q: Can I customize the height or width of the base? A: Yes. Custom sizes and heights are available to fit non-standard room dimensions and installation requirements.
• Q: Are riser feet included or optional? A: Riser feet are optional and can be added to raise the base to match raised-floor installations, enhancing compatibility with existing floor plans.
• Q: Does the base support floor tiles around the racks? A: Yes. The design supports floor tiles surrounding the bays, helping to integrate with tile-based flooring and provide a clean, professional look.
• Q: What finish is used on the riser base? A: The base uses a durable black powder coat finish that resists wear and provides a professional appearance in high-traffic rack rooms.
