Description

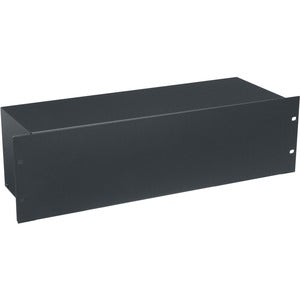

Middle Atlantic 3 Space Econo Chassis, 6" Depth
The Middle Atlantic EC-3 3 Space Econo Chassis is designed for professional environments where durability, reliability, and value matter. This compact 6" deep rack enclosure provides three rack spaces (3U) of mounting space for a wide range of gear, from compact AV processors and patch panels to small network devices and control interfaces. Built to endure the rigors of installation, transportation, and daily use, the EC-3 combines sturdy construction with a clean, professional look that blends seamlessly with other Middle Atlantic components. The EC Series is known for delivering essential protection without a premium price tag, making it an ideal choice for studios, classrooms, houses of worship, small broadcast setups, rental houses, and corporate AV deployments where clean organization, sturdy protection, and quick serviceability are priorities. With its quick-to-disassemble two-piece design, a robust 16-gauge steel face, back, and bottom, and 20-gauge steel top and sides finished in a durable black powder coat, this chassis supports efficient cable management, easy maintenance, and long-term reliability in crowded racks and moveable setups alike.
- Durable construction for demanding environments: The EC-3 uses a 16-gauge steel face, back, and bottom with 20-gauge steel top and sides to deliver rigidity and protection. Reinforced corners and welded seams help resist flex and vibration, keeping mounted equipment stable even in mobile racks, touring setups, or high-traffic control rooms. This rugged build is designed to withstand daily handling, minor bumps, and the rigors of installation bays, while maintaining smooth, secure mounting for your gear.
- Compact 3-space design with 6" depth: Perfect for smaller rack environments, the EC-3 fits standard 19" racks while offering three full rack spaces (3U) of mounting capacity. The shallow 6" depth preserves valuable space in crowded equipment rooms, portable vehicles, or under-desk configurations, enabling you to consolidate gear without sacrificing accessibility. It’s an excellent choice for powering, patching, or housing compact processors, small-format amplifiers, interface modules, or compact networking and control devices.
- Professional finish with corrosion resistance: A black powder coat finish provides a sleek, professional appearance while offering durable protection against corrosion, scuffs, and scratches. The finish helps the enclosure stay looking sharp in busy installations, broadcast studios, classrooms, or rental environments where equipment is frequently moved between venues. The clean, uniform look also makes it easy to align with other Middle Atlantic rack components for a cohesive, organized system.
- Two-piece quick-disassemble design for fast service: The EC-3’s two-piece design makes installation, upgrades, and maintenance faster and more convenient. With a separable front face and chassis, you can access internal cabling and rack-mount hardware without removing the entire enclosure from the rack. This feature reduces downtime during configuration changes or gear swaps, streamlining service in live environments or multi-room installations.
- Value-driven EC Series for budget-conscious professionals: Middle Atlantic engineered the EC Series to deliver essential rack protection, fit, and usability at an accessible price point. The EC-3 provides reliable mounting and protection without compromising on quality or compatibility, making it an ideal choice for installers who need dependable enclosures that won’t stretch project budgets. Its straightforward design supports quick procurement and scalable configurations across small studios, classrooms, houses of worship, and rental operations.
Technical Details of Middle Atlantic 3 Space Econo Chassis, 6" Depth
- Source for technical details: Get this information from the "specifications" section of the product on ec.synnex.com using the UPC or SKU as reference.
How to install Middle Atlantic 3 Space Econo Chassis, 6" Depth
- Prepare your rack and gear: Verify that you have a standard 19" rack and that mounting rails are properly installed and aligned. Confirm that the chassis depth (6") fits within the available rack space and that there is adequate ventilation around mounted equipment.
- Remove the front face if needed for installation: The EC-3 employs a two-piece design, allowing you to separate the front face from the chassis to facilitate easier front-mounting, cabling, and initial equipment placement. Set the front panel aside in a safe location during installation.
- Mount the chassis in the rack: Align the chassis so that mounting ears line up with the rack rails or ears, then secure the enclosure with appropriate 10-32 or M6 mounting screws (as per your rail type and cabinet guidelines). Ensure the chassis is square and level to prevent gear misalignment and to maintain proper door or panel clearance if applicable.
- Install equipment and manage cabling: Position your 3U of equipment inside the chassis, keeping cables tidy and routed to minimize cable strain and airflow obstruction. Use cable ties or Velcro to bundle cables and leave adequate room for ventilation behind each device. If needed, install patch panels, power distribution, or small processors in the available spaces first to optimize flow and accessibility.
- Reattach the front face and verify operation: Reattach the front face or cover panel to protect equipment and maintain a clean appearance. Power up the rack and verify that all devices are functioning properly, with clear access for maintenance. Check that front-to-rear clearance is unobstructed, and ensure there is no excessive heat buildup around any active components.
- Final checks and routine maintenance: Double-check mounting screws for tightness, confirm that all connections are secure, and perform a quick cable management review. Establish a routine to inspect the enclosure for dust buildup and verify vent openings remain unobstructed to preserve thermal performance over time.
Frequently asked questions
- Q: What is the depth of the EC-3 chassis? A: The enclosure features a depth of 6 inches, designed to fit in tighter racks while still providing three rack spaces (3U) for mounting equipment.
- Q: How many rack spaces does the EC-3 provide? A: It provides 3 rack spaces (3U) of mounting capacity in a compact 6" deep footprint, making it suitable for smaller gear and compact installations.
- Q: What materials are used in construction? A: The chassis uses a 16-gauge steel face, back, and bottom, with 20-gauge steel on the top and sides. This combination delivers rigidity and durability for everyday use.
- Q: What finish does the EC-3 have? A: The enclosure is finished in a black powder coat, offering a professional look and added abrasion resistance for demanding environments.
- Q: Is the EC-3 compatible with standard 19" racks? A: Yes. The EC-3 is designed to mount in standard 19" equipment racks, providing a stable and compatible solution for AV, audio, and small-proc equipment setups.
- Q: Is this chassis suitable for mobile or touring installations? A: Its sturdy construction and two-piece design make it well-suited for portable or touring scenarios where gear needs protection during transport and quick maintenance is required.
