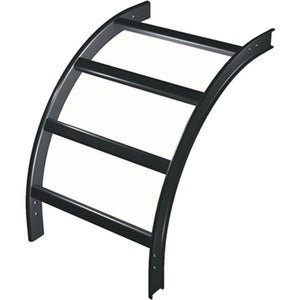

Middle Atlantic 90° Vert. Outside Ladder Bend, 18"W

Designed to streamline cable management around sharp corners, the Middle Atlantic 90° Vert. Outside Ladder Bend is a essential component for clean, professional rack installations. Crafted from sturdy steel and finished in a scratch-resistant black powder coat, this bend stands up to daily use in AV, IT, and broadcast environments while maintaining a sleek appearance. With an 18" width and a 15.50" length, it provides ample room for dense cable runs, power and data lines, and bulkhead assemblies, all while preserving proper bend radii to protect cable integrity. Whether you’re building a new ladder system or upgrading an existing setup, this outside ladder bend delivers reliable performance and easy integration with various ladder brands and accessories.

• Optimized 90-degree bend for cable ladders: This outside bend creates a smooth, gradual transition at corners, preserving bend radii and reducing cable stress. The result is longer cable life, fewer signal issues, and easier access for maintenance in tight rack spaces.
• Durable steel construction with black powder coat: The bend is built to endure demanding environments. The scratch-resistant, corrosion-resistant finish keeps racks looking professional, even after repeated installations, removals, and reconfigurations.
• Broad compatibility with ladder brands and accessories: Designed to integrate with most popular ladder systems and a wide range of accessories, this bend fits seamlessly into both new builds and retrofits, simplifying rack design and expanding upgrade options.
• Generous dimensions for high-density installs: With an 18" width and 15.50" length, the bend accommodates large cable bundles and multiple conduits without crowding, helping maintain airflow, organization, and accessibility for service calls.
• Sold as individual ladder sections for flexible configuration: Build precisely the bend you need. Ladder sections are sold separately, allowing you to tailor the installation to your space without over-purchasing components.

Technical Details of Middle Atlantic 90° Vert. Outside Ladder Bend, 18"W

• Material: Steel
• Finish: Black powder coat, highly durable and scratch-resistant
• Designation: 90° vertical outside ladder bend
• Width: 18 inches (W)
• Length: 15.50 inches
• Applications: Works on both new installations and existing ladder systems
• Compatibility: Compatible with most popular ladder brands and accessories
• Ladder sections: Sold as individual sections for flexible configuration

How to install Middle Atlantic 90° Vert. Outside Ladder Bend, 18"W

• Plan your route: Before installation, map the cable ladder path to ensure the 90° bend aligns with the rack corner and leaves room for cable bundles, power distribution, and any future expansion.
• Prepare the ladder section: Inspect the bend and surrounding ladder sections for damage or debris. Clean contact surfaces to ensure a solid fit and secure mounting.
• Position the bend: Align the 90-degree bend with the intended vertical and horizontal ladder runs. Verify that the bend angle provides a smooth transition that preserves cable bend radii and avoids kinks.
• Mount the bend: Attach the bend to the ladder system using the appropriate hardware recommended for your ladder brand. Use mounting points or securing accessories designed for your specific rack configuration to ensure a stable, vibration-free installation.
• Route and dress cables: Feed cables through the bend, maintaining a gentle bend radius and avoiding sharp folds. Use ties or clips as needed to keep cables neatly organized without over-tightening.
• Test and verify: After installation, check cable clearance, airflow, and ease of maintenance. Power up equipment to confirm proper operation, and re-check fitment after any system adjustments or expansions.

Frequently asked questions

• Q: What is the primary benefit of the Middle Atlantic 90° Vert. Outside Ladder Bend? A: It provides a robust, space-efficient 90-degree transition for cable ladders, protecting cables from damage while keeping the rack area organized and accessible.
• Q: Which ladder brands are compatible with this bend? A: The bend is designed to be compatible with most popular ladder brands and accessories, making it suitable for both new installations and retrofits across a wide range of systems.
• Q: How does the finish hold up in busy environments? A: The black powder coat is highly durable and scratch-resistant, helping the bend maintain a professional look in rack rooms and studios even after repeated handling.
• Q: What are the exact dimensions? A: The bend is 18 inches wide and 15.50 inches long, providing ample space for large cable bundles while preserving a clean silhouette and proper bend radius.
• Q: Can I buy just the bend, or do I need to purchase additional ladder sections? A: The ladder sections are sold individually, allowing you to customize the bend to your specific installation without purchasing unnecessary components.
