Description

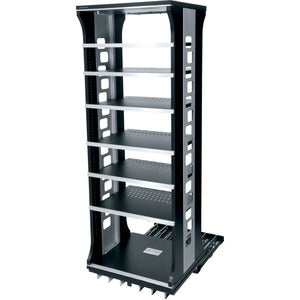

Middle Atlantic ASR-42-HD Slide Out & Rotating Shelving System
The Middle Atlantic ASR-42-HD Slide Out & Rotating Shelving System is a purpose-built solution for serious installers who demand organized storage, easy access, and dependable performance in professional AV, rack, and gear rooms. With a 42-inch tall, 21" wide by 20" deep footprint, this heavy-duty system blends a smooth, glide-enabled slide-out with a rotating shelf design that brings every piece of equipment within arm’s reach. Built to support up to 200 lb per unit, the ASR-42-HD is engineered to handle racks of monitors, AV receivers, power distribution, and accessories while maintaining steady airflow and cooling thanks to vented shelves and a vented top. This combination of strength, accessibility, and thoughtful ventilation helps protect sensitive equipment and simplifies maintenance, cabling, and routine upgrades. Whether you’re outfitting a broadcast studio, a post-production workflow, or an enterprise AV cabinet, the ASR-42-HD helps you maximize space, minimize downtime, and streamline operations.
- Heavy-duty slide-out with reliable rotation: The ASR-42-HD features a robust, smooth-sliding mechanism that extends fully to provide unimpeded access to rear connections, cables, and back-panel controls. The integrated rotating shelves allow gear to be turned into position for quick, one-handed retrieval, reducing reach overhead and eliminating the need to crawl behind racks. This combination is ideal for frequent servicing, rearranging, or swapping devices, ensuring that your workflow stays efficient even under demanding production schedules.
- Six- shelf configuration with generous capacity: Six well-spaced shelves give you ample room to organize equipment by function, weight, or cabling tiers. Each shelf is sized to accommodate typical AV components, small servers, multimedia players, or accessories, while maintaining even weight distribution to preserve system longevity. The 200 lb total load capacity means you can stack a substantial amount of gear without compromising performance, making it suitable for dense studio racks and control rooms.
- Ventilated design for improved cooling and longevity: Ventilated shelves and a ventilated top promote consistent airflow around heat-generating devices. This helps prevent heat buildup in enclosed spaces, reduces fan noise, and contributes to longer component life. By sustaining cooler operating temperatures, the ASR-42-HD supports stable performance during long recording sessions, live events, or data-intensive tasks that produce heat.
- Versatile finishes for professional aesthetics and compatibility: The ASR-42-HD is offered in Black and Silver colorways, including brushed Silver, Melamine, and Brushed Black finishes. This range gives you flexibility to match surrounding cabinetry, rack rails, and other equipment finishes, delivering a cohesive, professional look in broadcast studios, post facilities, or enterprise data/AV rooms. The finishes complement a variety of hardware textures while safeguarding surfaces from scuffs and wear.
- Ready-to-assemble design with practical installation considerations: While built to exacting standards, the ASR-42-HD requires assembly, allowing for precise alignment in your space. The assembly process is straightforward for skilled technicians and includes careful guidance to ensure secure mounting, level operation, and safe extension of the slide-out mechanism. Once installed, the unit delivers dependable access and organization for ongoing daily use, maintenance tasks, or occasional reconfigurations as your equipment needs evolve.
Technical Details of Middle Atlantic ASR-42-HD
- Dimensions: 21" W x 20" D x 42" H
- Shelves: 6
- Load Capacity: 200 lb
- Ventilation: Ventilated shelves and vented top
- Finish Options: Black, Silver, Brushed Silver, Melamine, Brushed Black
- Material: Sturdy steel construction with ventilated shelving surfaces
- Assembly: Required
How to install Middle Atlantic ASR-42-HD
Install the ASR-42-HD in a suitable, level location with access to electrical power, ventilation, and serviceable rear clearance for cables. Prepare your workspace by laying out all components and hardware, and verify you have the correct mounting rails or cabinet compatibility for your room configuration. Use these general steps to guide a proper setup, ensuring safety and optimal performance:
- Unpack and inspect all components, hardware, and hardware fasteners. Confirm that you have the required tools and that no components are damaged or missing before beginning assembly.
- Assemble the base frame on a clean, level surface or within the designated rack/cabinet area. Align the frame rails to ensure true vertical and horizontal alignment, using a level as needed to prevent binding of the slide-out mechanism.
- Attach the slide-out rails securely to the cabinet, rack, or mounting surface according to the manufacturer’s hardware guidelines. Verify that the rails are straight and evenly spaced to ensure smooth operation when extended.
- Install the six shelves onto the rotating carriers, ensuring each is properly seated and secured. Confirm that rotation is smooth and that there are no interferences with cabinet walls, cables, or adjacent equipment when rotating or sliding.
- Connect power and verify ventilation clearances. Load the gear gradually, starting with lighter items and progressing to heavier components, testing both the slide-out extension and rotation. Make any needed adjustments to balance weight distribution and ensure safe operation.
- Perform a final functional test: fully extend the slide-out, rotate shelves, and return to the stowed position. Confirm that the unit locks securely in place and that venting remains unobstructed for optimal cooling.
- Finish by tidying cables, labeling pathways, and ensuring that the installation complies with local safety codes and your facility’s rack-management standards. Periodically inspect mounting hardware and lubrication as part of routine maintenance to preserve performance over time.
Frequently asked questions
- What are the overall dimensions and capacity? The ASR-42-HD measures 21 inches wide, 20 inches deep, and 42 inches high, with six shelves and a total load capacity of up to 200 pounds. This combination suits compact yet demanding AV rack environments where space efficiency and weight handling are important.
- Does it require assembly? Yes. Assembly is required to ensure proper fit and operation within your cabinet or rack. The process is straightforward for qualified installers and includes mounting hardware, alignment guidance, and shelf installation steps.
- Are the shelves vented? Yes. Both the shelves and the top are vented to promote airflow around stored gear, helping to maintain cooler operating temperatures and prolong component life, especially in rooms with limited natural ventilation.
- Which finishes are available? The ASR-42-HD is offered in several finishes, including Black, Silver, Brushed Silver, Melamine, and Brushed Black. Choose a finish that best matches your equipment, cabinetry, and lighting aesthetics for a cohesive look in studios or data rooms.
- Is this suitable for standard rack setups? The ASR-42-HD is designed for professional AV environments and can be integrated into typical rack or cabinet configurations. Always verify compatibility with your specific rack dimensions, mounting patterns, and clearance requirements before purchase to ensure a proper fit and safe operation.
