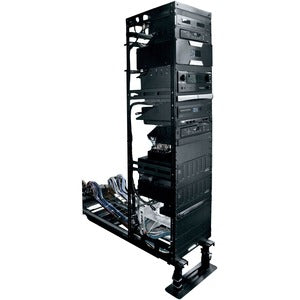

Middle Atlantic AXS Rack Frame

Middle AtlanticSKU: 5541021

Price:
Sale price$1,440.00

Description

Middle Atlantic AXS Rack Frame

Discover a premium, purpose-built solution for organizing, mounting, and accessing your gear with the Middle Atlantic AXS Rack Frame. This 16U rack height, 19" rack width, and 26" rack depth frame is crafted from durable steel and finished in a sophisticated black powder coat to deliver both strength and style in a compact footprint. Engineered for demanding environments like broadcast studios, data centers, and professional AV setups, the AXS Rack Frame provides robust support for a wide range of equipment while prioritizing quick retrieval, clean cable management, and reliable airflow. With a maximum weight capacity of 650 lb, it’s built to handle heavy servers, switches, patch panels, power distribution units, and audio/video hardware without compromising accessibility or stability. The frame’s external and internal mounting options give installers flexible configuration choices, enabling easy front and rear access and streamlined maintenance. Whether you’re consolidating gear in a small rack room or scaling up a growing installation, the AXS Rack Frame offers a solid foundation that combines durability, efficiency, and a professional look that fits seamlessly into modern setups.

  • 16U rack height, 19" width, and 26" depth are optimized to accommodate standard IT and AV equipment with ample room for ventilation and cable routing. This balanced footprint supports dense equipment configurations while preserving accessibility for upgrades or replacements, ensuring you can scale your system as needs evolve without relocating or redesigning your rack environment.
  • Sturdy steel construction with a durable black powder-coated finish delivers long-lasting reliability in busy environments. The combination of rugged materials and a contemporary finish not only withstands daily wear and tear but also presents a professional, low-profile aesthetic that blends with equipment racks, studios, and data centers alike.
  • 650 lb maximum weight capacity provides confidence for mounting heavier components such as servers, UPS units, patch panels, and multi‑device racks. This generous capacity leaves room for growth and ensures that even when your rack evolves, the frame remains a stable, secure home for your critical gear.
  • External and internal mounting options offer versatile installation flexibility and simplified cable management. Whether you need rear access for cabling or front-facing mounting for quick gear changes, the AXS Rack Frame adapts to your workflow, reducing downtime and speeding up service calls.
  • Thoughtful design enhances airflow, organization, and accessibility. With clearly defined mounting rails, strategically positioned openings, and space for cable management accessories, you can maintain cool equipment, minimize cable clutter, and keep critical connections visible and easy to reach during audits or maintenance.

Technical Details of Middle Atlantic AXS Rack Frame

  • Rack Height: 16U
  • Rack Width: 19 inches
  • Rack Depth: 26 inches
  • Material: Steel
  • Finish: Black powder coat
  • Maximum Weight Capacity: 650 lb
  • Mounting Type: External and Internal mounting rails
  • Color: Black
  • Compatibility: Standard 19" rack equipment
  • Usage: Ideal for AV, IT, and professional audio/video installations

How to install Middle Atlantic AXS Rack Frame

  • Plan your layout by measuring the available space and identifying the best location for rack mounting, ensuring adequate clearance for front doors, rear service access, and ventilation around the frame.
  • Assemble and position the frame on a solid surface or inside a compatible rack enclosure, aligning mounting rails with the chassis and confirming level alignment for stability before securing any hardware.
  • Attach the frame to the supporting structure using the provided hardware and recommended mounting pattern. If you are mounting externally, ensure that screws or anchors engage solid structural material and that weight distribution is balanced to prevent tipping or sagging.
  • Install your equipment starting from the bottom up to optimize weight distribution and airflow. Leave space between devices to promote airflow, reduce heat buildup, and simplify cable access for maintenance or upgrades.
  • Route power, network, and interconnect cables with attention to tidy organization. Use cable management accessories where available and avoid sharp bends or crushed cables that could impede performance or accessibility.
  • Check the completed installation for stability, verify that all devices are securely fastened, and test access to rear connections. Confirm that weight limits are not exceeded and that all equipment remains level and properly supported after any movement or reconfiguration.

Frequently asked questions

  • Q: What equipment is compatible with the Middle Atlantic AXS Rack Frame? A: The frame is designed for standard 19" rack-mount equipment, including servers, patch panels, switches, AV receivers, power distribution units, and related rack accessories. Its 16U height and 26" depth accommodate a wide range of devices while leaving room for cable management and airflow.
  • Q: How much weight can the AXS Rack Frame hold? A: The maximum weight capacity is 650 lb, which supports dense configurations and heavier components without compromising stability or safety.
  • Q: Does the frame offer external or internal mounting options? A: Yes, the AXS Rack Frame provides both external and internal mounting options, enabling flexible installation and easier access for cabling, maintenance, and upgrades.
  • Q: What finish does the rack frame have? A: The frame features a black powder-coated steel finish for durability and a professional appearance that complements most professional environments.
  • Q: How can I optimize airflow and organization with this rack frame? A: Plan device placement to maximize front-to-back airflow, leave space between units, and use cable management accessories to route cables neatly. The frame’s design supports clear access to rear connections and reduces heat buildup for sustained performance.
