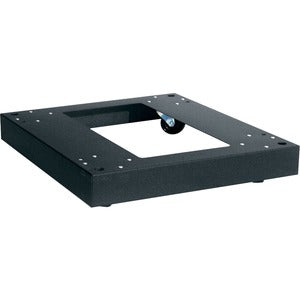

Middle Atlantic Caster Base, 26"D, Slim 5 Series, Fine Floor
The Middle Atlantic CBS-5-26R Fine Floor Caster Base is the smart, professional solution for turning fixed Slim 5 Series racks into mobile, adaptable systems. Engineered to perfectly match the Slim 5 Series 26" depth racks, this base provides robust support, durable construction, and a strategic design that prioritizes stability and serviceability in demanding AV, broadcast, and data-center environments. Crafted from high-quality 11-gauge steel, the caster base is built to withstand the daily rigors of heavy equipment, frequent repositioning, and long-term use without compromising alignment or integrity. With a compact 3.95" profile, a wide 19.13" width, and a full 26" depth, the CBS-5-26R maintains a low center of gravity while ensuring ample clearance for cables and connectors, delivering a clean, professional footprint for modern rack installations. The inclusion of a single knockout simplifies cable management, providing a convenient entry point for power, data, or routing needs. Whether you’re outfitting a broadcast studio, a corporate AV room, or a data-centric control center, this caster base combines essential mobility with uncompromising stability, ensuring your gear stays secure, organized, and ready for action.
- The caster base is constructed from rugged 11-gauge steel, delivering long-lasting durability and the strength to support heavy equipment as you move between locations or reconfigure your space.
- Designed to accommodate Slim 5 Series 26" depth racks, the CBS-5-26R ensures a precise, stable fit that maintains alignment and reduces rack wobble during operation and repositioning.
- With a low-profile height of 3.95 inches, the base preserves a slim, elegant footprint while preserving accessible cable runs and service clearances under the rack for easier maintenance and upgrades.
- A substantial weight capacity of 400 pounds provides margin for current gear and future expansions, enabling you to deploy AV, IT, or audio-visual equipment without worry about overloading the base.
- One knockout on the base offers a convenient route for power and data cabling, aiding clean cable management and minimizing the need for additional penetrations or components.
Technical Details of Middle Atlantic Caster Base 26"D, Slim 5 Series, Fine Floor
- Model: CBS-5-26R
- Compatibility: Slim 5 Series racks with 26" depth
- Material: 11-gauge steel
- Dimensions: 3.95" H x 19.13" W x 26" D
- Weight capacity: 400 lbs
- Knockouts: One knockout included
- Manufacturer: Middle Atlantic Products
How to Install Middle Atlantic Caster Base 26"D, Slim 5 Series, Fine Floor
Installing the CBS-5-26R is a straightforward process designed to minimize downtime while ensuring secure, stable rack setup. Follow these steps to achieve a clean, professional installation that preserves the integrity of your Slim 5 Series rack and the equipment housed within it:
- Prepare the workspace by ensuring the floor is clean, level, and free of debris. This helps prevent uneven weight distribution and supports proper caster alignment.
- Position the CBS-5-26R under the Slim 5 Series rack so that the base aligns with the rack’s footprint. Confirm that the 26" depth of the rack matches the base for a snug, flush fit.
- Secure the caster base to the rack using the appropriate mounting hardware recommended by Middle Atlantic. Use a level to verify that the base sits evenly and that the rack remains plumb.
- Inspect the base for secure contact with the ground and confirm that all fasteners are tightened to the specified torque. This helps prevent wobble during movement and operation.
- If you plan to utilize cart or caster assemblies, attach compatible casters according to the manufacturer’s instructions and test mobility on a safe surface. Re-check level and stability after adding casters.
- Route cables through the base’s knockout as needed and verify clearance for service access. Ensure power and data lines are organized to minimize strain and maintain airflow around the rack.
Frequently asked questions
- What racks is the CBS-5-26R compatible with? The base is designed for Slim 5 Series racks that have a 26" depth, providing a matching footprint for stable, secure support.
- What is the weight capacity of the caster base? The CBS-5-26R supports up to 400 pounds, making it suitable for a wide range of equipment and future upgrades.
- What material is used in the construction? It is built from 11-gauge steel, delivering durability and long-term resilience in demanding environments.
- Are casters included with the base? The base is designed to work with compatible caster assemblies; you may need to source casters separately depending on your mobility requirements.
- How do I install the caster base? The installation involves aligning the base with the rack, securing it with appropriate hardware, and verifying level and stability. For best results, follow the installation steps outlined above and consult your facility’s safety and electrical guidelines when routing cables through the knockout.
