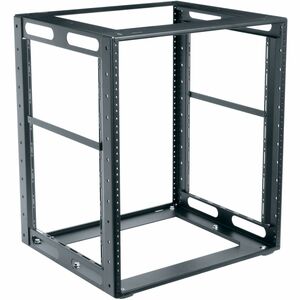

Middle Atlantic CFR Series 14RU Cabinet Frame - Open Frame Rack - 16in Depth

Middle AtlanticSKU: 5537889

Price:
Sale price$435.60

Description

Middle Atlantic CFR Series 14RU Cabinet Frame - Open Frame Rack - 16in Depth

The Middle Atlantic CFR Series 14RU Cabinet Frame delivers a win-win combination of space efficiency and robust, professional-grade construction for entertainment systems, AV setups, and cabinet installations. Designed with a low-profile open frame, this rack frame maximizes usable rack space while keeping equipment accessible for maintenance, upgrades, and simple servicing. Its strong welded steel frame supports pre-loading gear before transport to the installation site, reducing on-site downtime and safeguarding delicate components during transit. With 14 rack units (RU) and a generous 16-inch (406 mm) depth, the CFR frame accommodates a wide range of gear—from AV processors and power distribution units to network switches and audio interfaces—without compromising airflow or cable management. Ideal for home theater rooms, broadcast environments, post-production suites, and compact control rooms, this frame balances durability, versatility, and cost-effective space utilization for modern setups.

  • Optimized 14RU rack capacity provides ample mounting space for essential AV and network components in a compact footprint. The CFR Series is engineered to handle mid-size equipment racks, allowing you to consolidate multiple devices—such as matrix switches, amplifiers, media servers, and patch panels—into a single, organized frame. The open design promotes efficient airflow and simplifies access to rear ports for maintenance, configuration changes, or future expansions, all while keeping your installation neat and scalable.
  • Low-profile open frame design excels in space-constrained environments like entertainment centers, control rooms, and portable studio setups. The open-frame concept not only saves valuable room but also enhances ventilation, reducing heat buildup around mounted devices. This design makes equipment swapping and service tasks straightforward, as you can reach rear connections without dismantling enclosed enclosures. It’s an adaptable solution for clients who need flexible configuration in compact spaces.
  • Durable welded steel frame construction delivers lasting rigidity and reliability for on-site installations and frequent transport. The welded steel framework provides superior structural integrity, minimizing flex under load and ensuring consistent alignment of mounting rails and devices. This rugged foundation is ideal for environments where gear may be loaded, unloaded, or relocated, offering peace of mind that your equipment stays secure and properly aligned through years of use.
  • 16-inch depth (406 mm) for diverse gear and cabling accommodates larger devices and offers ample room behind equipment for cable management. The deeper profile supports equipment such as multi-GPU servers, dense networking gear, and larger power distribution units while still maintaining a compact overall footprint. The extra depth helps with routing cables, improving airflow, and reducing strain on connectors as equipment is added or reconfigured over time.
  • Includes two front-to-rear lacing bars for organized cable management and airflow optimization. These lacing bars streamline front-to-back cable routing, enabling cleaner installations and easier servicing. By guiding cables neatly from front to rear, you reduce clutter, minimize signal interference, and simplify future upgrades—keeping your system tidy and scalable without sacrificing performance.

Technical Details of Middle Atlantic CFR Series 14RU Cabinet Frame

  • RU Capacity: 14RU
  • Depth: 16 in (406 mm)
  • Frame Material: Welded steel
  • Frame Type: Open frame cabinet frame
  • Cable management: Includes two front-to-rear lacing bars
  • Applications: Designed for entertainment systems, cabinets, and similar spaces; supports pre-loading equipment and transport to installation sites

How to Install Middle Atlantic CFR Series 14RU Cabinet Frame

Installing the CFR Series 14RU Cabinet Frame is designed to be straightforward, with a focus on maximizing ease of use and serviceability. Begin by selecting a stable, level surface or a compatible stand that can accommodate the frame’s footprint and weight. Unpack the frame and confirm all components are present, including the two front-to-rear lacing bars for cable management. Position the frame where it will remain most accessible for future gear swaps and routine maintenance, ensuring there is adequate clearance for ventilation and cable routing. If you plan to mount rails or other hardware, attach the mounting rails according to your equipment’s mounting pattern and the frame’s specifications, paying attention to alignment to maintain proper rack stability. Pre-load as much equipment as possible off-site to minimize on-site disruption; place larger devices first, followed by mid-sized modules and smaller cards, then assemble the remaining components. Route cables through the front-to-rear lacing bars to establish a clean, scalable backbone for your system. Use cable ties or Velcro fasteners to secure bundles without restricting airflow. After all devices are in place and cables are neatly managed, verify that each connection is secure, label cables for future diagnostics, and perform a functional test. Finally, confirm that the frame is stable and properly supported, especially if it is used inside a larger cabinet or mounted in a rack bay; ensure adequate ventilation and that no doors or access panels impede airflow. By following these steps, you’ll achieve a professional, reliable installation that stands up to daily use and future upgrades.

Frequently asked questions

  • What is the RU capacity of this CFR frame? It provides 14 rack units (14RU) of mounting space.
  • What is the depth of the frame? The frame depth is 16 inches (406 mm).
  • Is it an open frame or enclosed cabinet? It is an open frame cabinet frame designed to maximize airflow and flexibility in equipment placement.
  • Does the package include cable management hardware? Yes—it's equipped with two front-to-rear lacing bars to aid in organized cable routing.
  • Is pre-loading possible? Yes, the welded steel frame is designed for pre-loading equipment before transport to the installation site, helping streamline on-site setup.
