Description

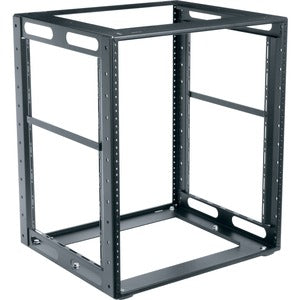

Middle Atlantic CFR Series 14RU Cabinet Frame - Open Frame Rack - 18in Depth
The CFR Series 14RU Cabinet Frame from Middle Atlantic is purpose-built for space-conscious environments where reliability, versatility, and clean cable management matter most. Designed to maximize usable rack space in entertainment systems, cabinets, studios, and other compact installations, this open frame rack delivers a low-profile solution without compromising strength or serviceability. The CFR frame is engineered to support pre-loading of equipment, making relocation to the installation site smoother and less disruptive. The combination of a robust welded steel construction and a carefully managed internal layout ensures that gear stays secure during transport and remains accessible for maintenance or future upgrades. If you need a dependable, modular, and adaptable mounting solution for 19-inch equipment, the CFR Series open frame is a smart choice that blends professional-grade durability with practical installation workflow.
Users appreciate the thoughtful engineering behind the CFR frame’s dimensions. With 14U of vertical mounting space and an 18-inch (406 mm) depth, it fits a wide range of rack-mountable equipment—from compact AV processors and power distribution units to small servers and breakout gear. The open frame design promotes airflow and cooling efficiency, which is particularly important in high-density installations where heat management is a constant concern. The low-profile footprint makes it easier to place the rack in confined rooms, under desks, or inside slim cabinetry, while still delivering full accessibility to front and rear equipment. By combining generous internal volume with a streamlined exterior, the CFR Series helps you maintain a tidy, scalable rack environment that can grow with your needs.
Durability is at the core of the CFR frame. The welded steel construction provides the stiffness and rigidity required for reliable long-term use, even when the rack is pre-loaded with equipment for transport. This is especially valuable for studios, broadcast suites, theater setups, and other professional applications where equipment must be mounted and ready before it leaves the loading dock. The frame’s sturdy build supports the installation of heavier devices without flex or wobble, and it maintains alignment for consistent mounting of standard 19-inch gear. The combination of structural integrity and practical design makes the CFR Series a dependable backbone for complex AV, IT, and media systems.
In addition to strength and space efficiency, the CFR frame emphasizes practical cable management. It includes two front-to-rear lacing bars to help you route and organize cables, reducing clutter and improving serviceability. Clear cable routing extends the life of connectors and minimizes airflow obstruction, contributing to a cooler, quieter system. Whether you’re configuring a compact broadcast rack, a compact IT cabinet, or an all-in-one entertainment system, the CFR 14RU frame helps you achieve a professional, organized result with less effort.
With a compact footprint and a clear focus on usability, the CFR Series 14RU Cabinet Frame is a versatile foundation for a wide range of equipment builds. It’s suitable for installations in professional studios, corporate AV rooms, hospitality spaces, and home theaters where rack-mount gear needs to be organized, accessible, and secure. The open frame design makes it straightforward to pre-load and test configurations before final installation, helping technicians streamline project timelines and reduce on-site complexity. If you value a robust, space-efficient, cable-conscious rack frame that can handle equipment pre-loading and transport, the CFR Series is a compelling choice that aligns with professional standards and practical workflows.
- The CFR Series uses a low-profile design to maximize usable rack space in entertainment systems, cabinets, and similar spaces, ensuring you can mount more gear without sacrificing accessibility or airflow.
- Strong, welded steel frame construction delivers rigidity and durability to support pre-loaded equipment during transport and installation, reducing the risk of damage from handling or movement.
- 14U rack capacity paired with an 18-inch (406 mm) depth provides a versatile balance between mounting space and depth footprint, fitting a broad array of standard 19-inch equipment.
- Includes two front-to-rear lacing bars for efficient cable management, enabling clean, organized cable runs that simplify maintenance and serviceability.
- Open frame layout enables better airflow and easy front-to-rear access, making it suitable for applications that require quick equipment changes, robust cooling, and straightforward customization.
Technical Details of Middle Atlantic CFR Series 14RU Cabinet Frame - Open Frame Rack - 18in Depth
- Rack Units: 14U
- Depth: 18 in (406 mm)
- Frame type: Open frame cabinet
- Construction: Welded steel
- Cable management: Includes two front-to-rear lacing bars
How to install Middle Atlantic CFR Series 14RU Cabinet Frame - Open Frame Rack - 18in Depth
- Select a level, protected location with adequate ventilation and access to power, cabling, and service points; verify that there is sufficient clearance for front and rear equipment access.
- Unpack the CFR frame and inspect for any shipping damage; confirm all components are present and match the model specifications (14U height, 18in depth, open frame rails, lacing bars).
- Position the frame and secure it to the floor or supporting structure as required by local codes or facility standards; ensure the frame is plumb and stable before adding equipment.
- Mount 19-inch equipment using standard rack screws and mounting rails; pre-load gear if desired to simplify on-site installation and reduce handling time.
- Route cables from front to rear through the open frame, using the included front-to-rear lacing bars to create clean, organized cable runs; label each cable to facilitate future service or expansion.
- Verify proper airflow around installed devices and confirm all connections are secure; perform a brief functional test to ensure that equipment powers up and operates within expected thermal and performance parameters.
Frequently asked questions
- Q: What is the rack unit capacity of the CFR Series 14RU Cabinet Frame? A: It provides 14 rack units (14U) of mounting space, allowing multiple devices to be mounted in a compact footprint.
- Q: What depth does this open frame rack accommodate? A: 18 inches (406 mm) of depth, suitable for a wide range of standard 19-inch equipment.
- Q: Does the CFR frame include cable management features? A: Yes, it includes two front-to-rear lacing bars to support organized and efficient cable management.
- Q: What applications is the CFR Series suitable for? A: It is designed for space-efficient mounting in entertainment systems, cabinets, studios, AV rooms, and similar spaces where compact, robust open-frame mounting is beneficial.
