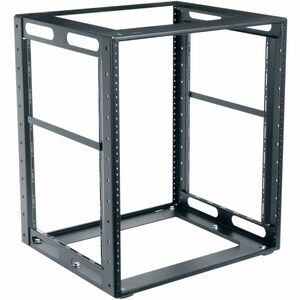

Middle Atlantic CFR Series 8RU Cabinet Frame - Open Frame Rack - 16in Depth

Middle AtlanticSKU: 5537902

Price:
Sale price$435.60

Description

Middle Atlantic CFR Series 8RU Cabinet Frame - Open Frame Rack - 16in Depth

The CFR Series 8RU Cabinet Frame delivers a low-profile, open-frame solution engineered for pro AV and entertainment systems where space is at a premium. Built with a strong, welded steel frame, this open-frame rack maximizes usable rack space while providing robust support for pre-loading equipment and transporting components to the installation site. With an 8U height and a 16-inch (406 mm) depth, it fits neatly into compact rooms, backstage enclosures, and cabinet interiors while accommodating standard 19-inch equipment. This frame is designed to streamline cable management and service access, making installations quicker and easier. Two front-to-rear lacing bars are included to organize cables and preserve airflow, helping reduce wear on cables and connectors during ongoing use. The CFR Series is engineered for durability, scalability, and flexible placement in a variety of AV, broadcast, and entertainment applications.

  • Open-frame design for maximum rack space and flexible mounting in entertainment systems, cabinets, and similar spaces, allowing for easy equipment access and airflow.
  • 8RU height with 16" (406 mm) depth to accommodate a wide range of standard 19" rack-mountable gear while staying compact and portable.
  • Welded steel frame construction provides superior rigidity, durability, and long-term reliability during pre-loading, transport, and installation.
  • Pre-loading capability enables you to pre-mount gear off-site for faster, safer installs on location, reducing on-site handling time and risk.
  • Two front-to-rear lacing bars included support organized cable routing and management, improving installation cleanliness and serviceability.

Technical Details of Middle Atlantic CFR Series 8RU Cabinet Frame

  • RU capacity: 8RU
  • Depth: 16 inches (406 mm)
  • Frame construction: Welded steel, open-frame design
  • Cable management: Includes two front-to-rear lacing bars for efficient cable routing
  • Applications: Ideal for entertainment systems, cabinets and similar spaces requiring a compact, durable open-frame rack

How to install Middle Atlantic CFR Series 8RU Cabinet Frame

Installing the CFR Series 8RU Cabinet Frame is designed to be straightforward, with a focus on safety, ease of handling, and quick readiness for equipment. Begin by selecting a suitable location that can support the weight and provide adequate ventilation for all mounted equipment. Check that the space accommodates an open-frame, 16-inch-deep frame and allows clear access to both front and rear panels for wiring and service work.

Next, prepare the frame for pre-loading if you plan to assemble gear off-site. With the frame on a clean, stable surface, mount compatible 19-inch equipment to the front-to-rear mounting points according to the equipment’s weight and distribution requirements. Use the frame’s open design to arrange power components, media processors, and any other devices in a balanced configuration that minimizes cable tension and promotes airflow.

Utilize the included front-to-rear lacing bars to guide and secure cables. Route power, data, and video cables in separate channels where possible to reduce interference, and label cables for quick reference during future servicing. The lacing bars help maintain neat cable runs, which simplifies modifications and rework during upgrades or maintenance.

Once the equipment is pre-loaded and cables are organized, move the frame to its installation site. Confirm that all mounting points align with the installation surface, and secure the frame as required by the venue or cabinet specifications. If the frame is intended to be bolted to a floor, wall, or rack system, follow the appropriate mounting procedures and use compatible hardware to ensure a stable, vibration-free installation. Finally, power on the equipment and verify that all components are functioning correctly, with proper airflow and cable management verified through a final walkthrough.

Frequently asked questions

  • Q: What is the CFR Series 8RU Cabinet Frame best used for?
    A: It is a low-profile open-frame rack designed to maximize usable rack space in entertainment systems, AV cabinets, and similar installations, while providing durability and easy access for installation and service.
  • Q: How deep is the CFR Series frame?
    A: The CFR Series frame has a depth of 16 inches (406 mm), suitable for a wide range of standard 19-inch equipment while maintaining a compact footprint.
  • Q: Does this frame include cable management features?
    A: Yes. The frame includes two front-to-rear lacing bars to support organized cable routing and management.
  • Q: Can equipment be pre-loaded onto the frame before installation?
    A: Yes. The CFR Series frame is designed for pre-loading, enabling gear to be mounted off-site for quicker installations and safer transport.
  • Q: What kind of equipment is compatible with this frame?
    A: The frame is built to accommodate standard 19-inch rack-mounted equipment used in AV, broadcast, and entertainment systems. Always verify weight and depth requirements for each device to ensure proper fit and support.
