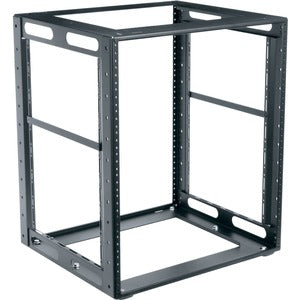

Middle Atlantic CFR Series CFR-10-20 Rack

The CFR Series CFR-10-20 rack by Middle Atlantic is engineered to deliver maximum usable rack space in compact entertainment centers, cabinetry, and installation environments where every inch counts. With a low-profile design, this rack helps you organize and house AV gear, network devices, and control equipment without sacrificing accessibility or airflow. Its rugged construction and thoughtful hardware make it ideal for professional installations and demanding on-site deployments, so you can pre-load gear off-site and transport it to the job site with confidence. Built to withstand the rigors of daily use, the CFR-10-20 combines sturdy engineering with practical features that streamline installation, maintenance, and future reconfigurations.

Designed for versatility, the CFR-10-20 accommodates a wide range of equipment while maintaining a clean, professional appearance. The frame’s solid welds ensure stability even when loaded with multiple components, while the low-profile silhouette fits neatly into entertainment racks, media cabinets, and control rooms where space is at a premium. The CFR series is known for reliability in broadcast, audio/visual, and home theater environments, and the CFR-10-20 continues that tradition with a focus on easy mounting, secure equipment support, and simplified cable management. Whether you’re setting up a compact home theater system or a commercial AV rack in a hospitality or corporate setting, this CFR rack provides a trusted solution that keeps gear accessible and organized.

• Low-profile design for maximum usable rack space — fits into tight installations while still providing standard 19-inch equipment compatibility and easy access to front and rear panels.
• Rugged welded steel frame — built to withstand frequent pre-loading, transport, and installation workflows without compromising structural integrity or alignment.
• Open-frame, tool-friendly construction — enables quick equipment loading, fast reconfigurations, and straightforward cable routing to maintain clean, orderly layouts.
• Industry-standard 19-inch mounting rails — ensures broad compatibility with a wide range of AV, networking, and control equipment commonly used in professional setups.
• Durable powder-coated finish — provides long-lasting protection against wear, corrosion, and daily use while preserving a professional appearance in visible installations.

Technical Details of CFR-10-20

• Frame construction: Welded steel frame designed for strength and reliability in demanding environments.
• Finish: Durable powder-coated surface for durability and aesthetics in busy spaces.
• Rail system: Standard 19-inch EIA/RIA compatible mounting rails for broad equipment compatibility.
• Depth: Approximately 20 inches (model CFR-10-20 design rationale ensures ample rear clearance for cabling and airflow).
• Height/Capacity: Configured for 10U of rack space in a compact footprint to maximize usable space while preserving accessibility.

How to Install CFR-10-20

• Before installation, determine the mounting location and ensure adequate ventilation, clearance for service access, and weight capacity of the supporting structure or cabinet.
• Unpack the CFR-10-20 and inspect for any shipping damage. Confirm that all rails, screws, and mounting hardware are present according to the included kit.
• Attach the 19-inch mounting rails to the frame in the desired orientation, aligning with standard rack dimensions. Use the correct screws and tighten securely to prevent rail shift during loading.
• Pre-load equipment off-site on a stable work surface. Mount gear in order of accessibility, keeping heavier devices lower in the rack to optimize center of gravity and ease of service.
• With equipment mounted and cables routed, slide the assembled rack into its cabinet or mounting location. Secure the rack frame to the mounting surface as required, ensuring a square, level install to prevent bias in door or panel alignment.
• Route power, data, and control cables with appropriate strain relief and cable management practices. Leave enough slack at rear access points to allow future reconfiguration without stressing connectors.
