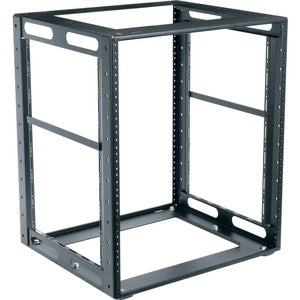

Middle Atlantic Cfr Series Rack 13 16 13Sp Cabinet Frame Rk 16D

Middle AtlanticSKU: 5537885

Price:
Sale price$435.60

Description

The Middle Atlantic CFR Series CFR-13-16 is a purpose-built, low-profile rack solution designed to maximize usable rack space in tight environments. Built for professional AV deployments, this rugged frame helps you pre-load equipment in the shop, streamline on-site installation, and keep cabling clean and accessible in constrained spaces such as living room home theaters, compact broadcast corners, cabinet systems, or hospitality AV racks. With a slender silhouette and ample internal clearance, the CFR-13-16 delivers dependable support for a wide range of devices—from media players and amplifiers to patch panels and interfaces—without sacrificing back-panel access, cooling paths, or overall room aesthetics. The welded steel construction provides the durability needed for frequent handling, transport, and quick deployment, while its thoughtful design supports efficient cable management and clean organization in crowded environments. In short, the CFR-13-16 combines compact dimensions with uncompromising rigidity and pre-loading efficiency to help AV installers, system integrators, and technicians deliver professional results on time and on budget.

  • Maximized space in tight environments: A low-profile footprint preserves room for additional gear while maintaining full access to rear connections, power distribution, and cooling paths.
  • Rugged welded steel frame: The CFR-13-16 is engineered for durability, stability, and long-term performance in busy installs where equipment may be moved or reconfigured.
  • Pre-loading friendly design: Plan, mount, test, and organize components in the shop, then transport a ready-to-install rack to the job site for rapid deployment.
  • Clean cable management and service access: Thoughtful cable pathways help constrain bundles, reduce tangling, and promote airflow, making maintenance and upgrades easier over time.
  • Versatile fit for a range of AV gear: Suitable for wall-mounted enclosures, cabinet systems, and AV racks in home theaters, control rooms, hotels, and conference venues.

Technical Details of Middle Atlantic CFR-13-16 CFR Series Rack

  • Series: CFR Series
  • Model: CFR-13-16
  • Rack Height: 13U (13 rack units) of usable mounting space
  • Depth: 16 inches (16D) to suit compact installations while preserving front-to-back clearance
  • Frame construction: Welded steel frame for enhanced stiffness, durability, and load integrity
  • Intended use: Pre-loading in shop and seamless on-site installation for controlled environments such as entertainment systems and AV cabinets
  • Access: Maintains full access to back-panel connections, power distribution, and cooling paths for straightforward maintenance
  • Cable management: Supports orderly mounting of devices with clear cable routing, helping to minimize tangling and optimize airflow
  • Finish: Designed to withstand professional-grade deployments in a variety of settings (finish details may vary by SKU)
  • Applications: Ideal for compact living spaces, boutique studios, small control rooms, hotel and conference venue AV racks, and other tight installations

how to install Middle Atlantic CFR-13-16 CFR Series Rack

  • Plan your rack layout by measuring available depth and height in the installation site. Confirm that the 13U height and 16-inch depth fit within the intended cabinet, wall enclosure, or freestanding rack space.
  • Prepare the pre-loaded components in the shop whenever possible. Mount modular devices, patch panels, and power distribution units in staged positions to verify fit, cable clearances, and wiring pathways before transport.
  • Safely transport the CFR-13-16 to the job site, ensuring that all equipment remains secure and aligned with the rack frame. Handle with care to preserve alignment of rails and panels.
  • Move the rack into position and secure it to the appropriate mounting points. Verify that the frame remains plumb and stable, then connect to mains power and network connections as needed.
  • Route cables through the built-in pathways, maintaining clean, organized bundles. Leave sufficient slack for maintenance and future upgrades, and ensure airflow paths are unobstructed.
  • Install front and rear devices, tighten mounting hardware to recommended torque, and perform a functional test to verify connectivity, power, and signal integrity across the system.
  • Document equipment placement and cable layout for future service calls or reconfigurations, and label cables for quick identification during routine maintenance.

Frequently asked questions

  • Q: What environments is the CFR-13-16 best suited for?
    A: Its compact, low-profile design and rigid welded frame make it ideal for wall-mounted enclosures, cabinet systems, home theaters, control rooms, hotels, and conference venues where space is at a premium.
  • Q: Can I pre-load equipment before installation?
    A: Yes. The CFR-13-16 is designed to support pre-loading in the shop, which reduces on-site assembly time, minimizes misalignment risk, and simplifies wiring and testing before deployment.
  • Q: How does cable management work with this rack?
    A: The frame layout provides clear pathways for cables, helping to constrain bundles, reduce tangling, and promote effective airflow, which contributes to cooler operation and easier servicing.
  • Q: Is back-panel access preserved after installation?
    A: Yes. The CFR-13-16 is engineered to maintain full access to back-panel connections, power strips, and cooling paths even after devices are mounted, ensuring straightforward maintenance and upgrades.
  • Q: What kinds of equipment fit in this rack?
    A: The design accommodates a range of AV components—from media players and amplifiers to interfaces, patch panels, and other compact devices commonly used in entertainment systems, control rooms, and hospitality installations.
  • Q: Is the CFR-13-16 suitable for multiple mounting configurations?
    A: Yes. Its low-profile, compact depth is versatile for wall-mounted enclosures, cabinet systems, and freestanding AV racks, enabling flexible integration into diverse spaces.
