Description

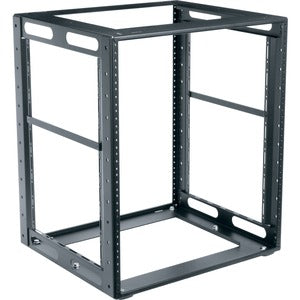

The Middle Atlantic CFR Series CFR-13-18 represents a smart, space-conscious solution for professional AV and entertainment systems. Designed as a low-profile rack frame, it fits where space is at a premium—between cabinets, inside entertainment centers, or other tight installations—without sacrificing strength, durability, or ease of use. Built to support pre-loaded equipment and to travel safely from shop to site, the CFR-13-18 helps technicians maximize usable rackspace, streamline installation, and maintain a clean, professional look across diverse configurations.
- Compact, space-saving design: A low-profile CFR Series frame that fits tight spaces while delivering full rack stability and accessibility for daily operations, maintenance, and upgrades.
- Rugged, welded steel construction: A robust, durable frame engineered to withstand the rigors of pre-loading, transport, and on-site deployment in professional environments.
- Pre-loading capability: Assemble and load equipment in the shop, then transport a ready-to-ship rack to the installation site for faster deployment and reduced on-site labor.
- Maximized usable rackspace: Thoughtful geometry and layout optimize footprint usage, making cable management easier and ensuring gear remains accessible during maintenance.
- Versatile application: Designed to integrate with a wide range of AV components and cabinet configurations, offering flexibility for modern systems and evolving needs.
Technical Details of Middle Atlantic CFR Series Rack 13 18 13Sp Cabinet Frame RK 18D
The CFR-13-18 is built to deliver steady support for pre-loaded equipment in compact environments while preserving the integrity and organization of the installation. Its welded steel frame provides lasting durability and rigidity, guarding against misalignment during transport and on-site setup. The low-profile design is specifically aimed at preserving usable rackspace within entertainment centers and cabinets, helping technicians place more gear in less space without compromising accessibility or airflow.
- Construction: Solid welded steel frame for enhanced durability and long-term reliability in demanding environments.
- Profile and footprint: Low-profile CFR Series design that maximizes usable rackspace in tight installations and cabinet applications.
- Pre-loading capability: Enables configuration and loading of equipment in advance at the shop, reducing on-site labor and downtime.
- Usable space optimization: Engineered to make the most of the available footprint, supporting clutter-free cable management and quicker access to gear.
- Versatility: Compatible with a broad range of AV components and cabinet setups, allowing flexible integration across diverse systems.
How to install Middle Atlantic CFR-13-18
- 1. Assess the installation space to confirm compatibility with a CFR-Series low-profile frame and verify clearances for entry, service access, and cable routing.
- 2. Prepare the cabinet, stand, or mounting surface by ensuring level footing and secure anchoring points appropriate for the rack frame.
- 3. If pre-loading, assemble and configure equipment in a clean shop environment, following your standard equipment mounting procedures and ensuring proper weight distribution.
- 4. Position the CFR-13-18 frame into place within the cabinet or mounting area, align with mounting rails or brackets, and secure the frame according to your installation guidelines so it remains stable during transport and operation.
- 5. Route power, data, and interconnect cables with careful planning to minimize clutter and optimize airflow. Use cable management accessories compatible with the CFR Series to maintain a tidy, professional appearance.
- 6. Install any pre-loaded equipment, verify that components are seated properly, and attach faceplates or mounting panels as required by your system design.
- 7. Check level, confirm solid grounding where applicable, and perform a functional test to ensure all devices power on correctly and communicate as expected.
- 8. Document the installed configuration for future maintenance or reconfiguration, including a simple map of cable routes and equipment locations within the rack.
Frequently asked questions
-
Q: What makes the CFR-13-18 ideal for compact AV installations?
A: Its low-profile CFR Series design is specifically aimed at maximizing usable rackspace in tight spaces like between cabinets or inside entertainment centers, while maintaining robust support and easy access for maintenance and upgrades. -
Q: Can I pre-load equipment in advance?
A: Yes. The CFR-13-18 is engineered with pre-loading capability, allowing you to assemble and load gear in the shop. This reduces on-site labor and speeds up deployment when you arrive at the installation site. -
Q: How does the frame protect equipment during transport?
A: The welded steel construction provides durable support and stability, helping resist misalignment, vibrations, and impact that can occur during transport or handling in busy installation environments. -
Q: Is the CFR-13-18 compatible with various cabinet configurations?
A: The CFR Series is designed for versatile integration with a wide range of AV components and cabinet configurations, enabling flexible deployments across different spaces and system designs.
